Ford Ranger Headlight Switch Guide (1996-2007)
Having trouble with your headlights? This guide covers the common issues and replacement options for your Ranger's headlight switch.
- A hot or melting switch is a common, serious failure; inspect the electrical connector for damage when replacing.
- This is a very common DIY repair that can be done in under an hour with basic tools.
- Always check fuses first, but if both headlights fail at once, the switch is a primary suspect.
- High-quality aftermarket brands like Standard Ignition are a reliable and cost-effective alternative to OEM.
Is Your Ford Ranger Headlight Switch Failing?
A bad headlight switch is a common problem on the 1996-2007 Ford Ranger. The symptoms can range from a minor annoyance to a serious safety issue. Because this switch carries the electrical load for the headlights, it can wear out, overheat, and fail over time.
Symptoms of a Bad Headlight Switch
- Headlights Won't Turn On: The most obvious sign is when you turn the knob and nothing happens, even though the high beams might work when you pull the turn signal lever.
- Intermittent Headlights: Your headlights might flicker, or turn on and off by themselves while you are driving.
- Switch is Hot or Melted: A very common and serious symptom is the switch becoming hot to the touch. In many cases, owners discover the switch or the electrical connector behind it has melted from overheating. This indicates a high current draw and a potential fire risk. 🎬 See how to swap out a failing headlight switch.
- Only Parking Lights Work: You may find that the first position on the switch works, turning on the parking and dash lights, but the main headlights do not engage in the second position.
- Burning Plastic Smell: A burning odor from the steering column or dash area when the lights are on is a major red flag that the switch is overheating.
Important: Check for Melting
If you are replacing your headlight switch, it is critical to inspect the plastic electrical connector that plugs into the back of it. If the switch was overheating, it likely damaged the connector and wires. A melted connector will cause the new switch to fail quickly and remains a fire hazard. You may need to replace the connector pigtail as well.
Choosing a New Aftermarket Headlight Switch
When your Ranger's original headlight switch fails, you have a few options. While you can get a replacement from a Ford dealership (OEM), the aftermarket offers quality parts that can save you money. For this part, two main tiers of aftermarket brands are typically available.
Brand Quality: Standard Ignition vs. Replacement
- Standard Ignition (Premium Aftermarket): Standard Motor Products (SMP), the manufacturer of the Standard brand, is a well-respected company that has been making parts for over 100 years. Their products are often considered equivalent to, and sometimes an improvement on, the original factory parts. Mechanics trust this brand for its consistent quality and durability, making it a solid choice if you want a long-lasting repair.
- Replacement (Value-Oriented): The "Replacement" brand is designed to be a cost-effective solution. It provides a part that fits and functions like the original at a lower price point. This is a good option for a DIY repair on a budget, especially for an older truck. While it meets the basic requirements, it may not have the same long-term durability or rigorous quality control as a premium brand like Standard Ignition.
OEM vs. Aftermarket
For a simple electrical component like this on an older vehicle, a high-quality aftermarket part from a brand like Standard Ignition offers the best balance of price and reliability. The original Motorcraft switches can also fail from overheating, so an aftermarket part isn't necessarily a downgrade. Avoid no-name, deeply discounted parts, as their quality can be very inconsistent.
Headlight Switch Replacement Cost (1996-2007 Ford Ranger)
The cost to replace the headlight switch is reasonable, especially if you do the work yourself. The job is straightforward and does not require expensive tools.
| Part Type | Estimated Part Cost |
|---|---|
| New OEM (Motorcraft) | $60 - $95 |
| New Aftermarket | $35 - $59 |
| Used OEM | $20 - $40 |
*Prices are estimates and can vary based on supplier and location.
Frequently Asked Questions (FAQ)
Is it hard to replace the headlight switch myself?
No, this is a great DIY job for beginners. The process involves removing the lower dash panel (knee bolster) and the main dash bezel that surrounds the instrument cluster. The switch itself is held to the bezel with two screws. Basic hand tools like a 7mm socket, 8mm socket, and a Phillips screwdriver are all that's needed. The entire job can usually be done in under an hour.

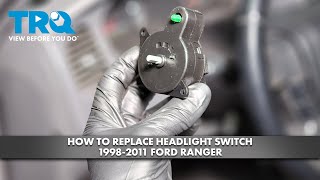

🎬 Watch: Step-by-step headlight switch replacement for 1998-2011 models.How do I know it's the switch and not a fuse or bulb?
If both headlights go out at once, it's unlikely that both bulbs failed simultaneously. Always check the fuses first. If the fuses are good and your high beams work when you pull the lever (but not when you use the main switch), the headlight switch is a very likely culprit. Sometimes, a corroded fuse connection can mimic a bad switch, so it's worth checking that the fuse contacts are clean.
What's the difference between the headlight switch and the multifunction switch?
The headlight switch is the rotary knob on the dash that controls power to the parking lights and headlights. The multifunction switch is the lever on the steering column that controls the turn signals, high/low beam selection, and windshield wipers. People often confuse them. If your turn signals or high beams are acting up, the multifunction switch could be the problem.
Is there a recall on the Ford Ranger headlight switch?
There are no specific recalls on the headlight switch itself for the 1996-2007 Ford Ranger. However, there was a recall (NHTSA #15V861) on some Ford vehicles for a faulty Lighting Control Module (LCM) that could cause the headlights to fail, which produces the same symptom as a bad switch. If a new switch doesn't fix your problem, you may want to investigate the LCM.

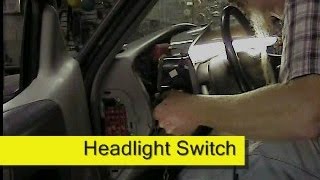

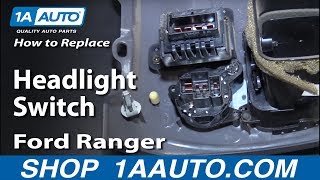

Helpful Videos
Technical Specifications
OEM Part Numbers: 3L5Z-11654-AA 2L5Z-11654-AA F87Z-11654-AA F57Z-11654-A 7L5Z11654BA
Rotary dash-mounted switch with integrated dimmer control. Controls parking lights, headlights, and instrument panel illumination.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
