A Guide to the Fuel Injection Plenum Gasket for the 1996-2009 Mercury Sable
Fixing vacuum leaks and rough idling in your Sable often starts with replacing the fuel injection plenum gasket set.
- A bad plenum gasket is a primary cause of vacuum leaks, rough idle, and lean codes (P0171, P0174) on 1996-2009 Sables.
- Always identify your engine as either the 3.0L Vulcan (OHV) or 3.0L Duratec (DOHC) before buying, as they require different gasket sets.
- Quality aftermarket brands like Victor Gaskets and Reinz provide a reliable seal and are a cost-effective alternative to dealer parts.
- Never reuse an old plenum gasket; it is a single-use part that must be replaced to ensure a proper seal.
Is Your Sable Running Rough? It Could Be the Plenum Gasket.
If your 1996-2009 Mercury Sable has developed a rough idle, is making a hissing sound, or the Check Engine light has come on, a failing fuel injection plenum gasket could be the culprit. These gaskets operate in a harsh environment with constant temperature changes, and over time they can become hard, brittle, and crack. This leads to vacuum leaks that can cause a range of noticeable problems. Addressing a bad gasket is important to restore performance and prevent other issues.
Symptoms of a Failing Plenum Gasket
When a plenum gasket fails, it creates a vacuum leak. This allows extra, unmetered air into the engine, which can cause several distinct symptoms:
🎬 Watch this guide to identify signs of a blown gasket.- Rough or Erratic Idle: The engine may shake or stumble when you're stopped at a light.
- Check Engine Light: A vacuum leak will often trigger "System Too Lean" codes (P0171 and P0174) as the engine's computer tries to compensate for the extra air.
- Hissing or Whistling Sounds: You may hear a distinct sucking or hissing noise coming from the engine bay, which can get louder when you accelerate.
- Poor Engine Performance: The incorrect air-fuel mixture can lead to hesitation during acceleration, stalling, and a general loss of power.
- Decreased Fuel Economy: An inefficiently running engine will use more fuel than usual.
Engine Differences Matter
The 1996-2009 Mercury Sable was available with two different 3.0L V6 engines: the Vulcan (OHV) and the Duratec (DOHC). These engines have different designs and require specific gasket sets. Always confirm which engine your Sable has before ordering parts to ensure you get the correct fit.
Choosing the Right Aftermarket Gasket Set
For a part like a plenum gasket, you don't need to buy from the dealer to get a quality seal. Reputable aftermarket brands often supply original equipment manufacturers (OEMs) and provide reliable parts at a better price.
- Victor Gaskets (Victor Reinz): This is a well-regarded brand known for producing OEM-quality gaskets for many European and domestic vehicles. Forum discussions often praise their material quality, noting it feels pliable and well-made. They are a trusted choice for a durable, long-lasting seal.
- Reinz: As part of the same company family (Dana/Victor Reinz), Reinz gaskets are also considered a high-quality option, often equivalent to Victor Reinz products and a reliable alternative to OEM parts.
Pro Tip: When you replace the plenum gasket, it's a great opportunity to clean your throttle body and inspect all nearby vacuum hoses for cracks or brittleness. Replacing any suspect hoses at the same time can save you from future vacuum leak headaches.
Estimated Replacement Costs
The cost to replace the fuel injection plenum gasket set can vary based on your vehicle's year and engine, as well as local labor rates. The job is generally considered feasible for an experienced DIYer.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $19.72 - $51.27 |
| Shop Labor | $206 - $322 |
| Total Professional Repair | ~$225 - $375+ |
Frequently Asked Questions (FAQ)
Can I reuse my old plenum gasket?
No. Plenum gaskets are designed to be crushed once to create a perfect seal. They are a one-time-use part and must be replaced whenever the plenum is removed.
Is this a difficult job to do myself?
For someone with basic to intermediate mechanical skills and the right tools, this is a manageable DIY job. 🎬 See how to change the plenum gasket on your intake. It involves removing components on top of the engine like the air intake tube, throttle body, and various electrical connectors and vacuum lines. The key is to be patient and keep track of all bolts and connections.
Are there any recalls for the Sable's plenum gasket?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically for the fuel injection plenum or intake gaskets on the 1996-2009 Mercury Sable. However, a Technical Service Bulletin (TSB 05-26-3) was issued for the 3.0L Vulcan engine regarding misfires, which can be related to intake leaks.
Do I need special tools for this replacement?
You will need a basic set of metric sockets and wrenches, a torque wrench (to tighten bolts to the correct specification), a scraper (plastic is recommended to avoid damaging metal surfaces), and some brake or carburetor cleaner for cleaning the mating surfaces.

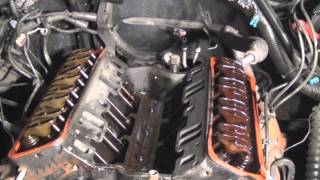

🎬 Learn how to properly prepare and install your new gasket.Helpful Videos
Technical Specifications
OEM Part Numbers: YF1Z9439AC MS96124 MS95726 9L8Z-9439-A
The set includes the upper intake manifold (plenum) gasket. Materials are typically high-quality molded rubber or composite designed to resist heat and chemicals and seal effectively.
