Toyota RAV4 Engine Oil Pressure Switch Guide (1996-2010)
Understand the signs of a failing oil pressure switch in your RAV4 and how to choose the right replacement part.
- A leaking oil pressure switch is a common failure and can be mistaken for a more expensive repair like a valve cover gasket.
- Never ignore an oil pressure warning light; always check the oil level first before assuming the switch is bad.
- Replacement is a simple DIY task for most owners, requiring only basic tools and a special deep socket.
- Premium aftermarket brands like Beck Arnley or Standard Ignition offer a reliable alternative to the more expensive OEM part.
Understanding a Common RAV4 Failure: The Oil Pressure Switch
For first, second, and third-generation Toyota RAV4 owners (1996-2010), the engine oil pressure switch is a component that can fail, leading to alarming dashboard lights or messy oil leaks. While the part itself is simple, ignoring the symptoms isn't an option if you want to protect your engine. This guide will walk you through the symptoms, replacement options, and what to expect.
Top Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch on a RAV4 typically fails in one of two ways: electrically or physically. Here’s what to look for:
- Oil Pressure Light On: The most common symptom is the red oil can light illuminating on your dash. A faulty switch can send a false signal, turning the light on even if the oil pressure is perfectly fine. However, you should always treat this light as a serious warning and check your oil level immediately.
- Flickering Oil Light: A light that flickers, especially at idle or during turns, can also point to a failing switch. It might also indicate a genuinely low oil level or a more serious internal engine issue.

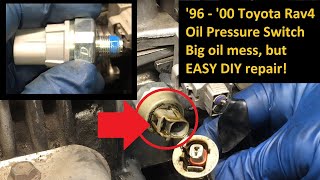

- Visible Oil Leak: This is a very common failure for this part on older Toyotas. The plastic housing of the switch can crack over time, or the seal can fail, causing engine oil to leak. You might notice oil on the sensor itself, dripping down the engine block, or pooling on the ground. A significant leak can be mistaken for a more serious problem 🎬 Watch this guide on fixing a common RAV4 oil leak. like a valve cover gasket leak.
- Oil Inside the Electrical Connector: When you unplug the switch, the connector should be dry. If it's full of oil, the internal seal of the switch has failed, and it needs immediate replacement.
Is It the Switch or Low Oil Pressure?
The oil pressure light doesn't just mean the sensor is bad; it warns of low oil pressure, which can destroy your engine. Aftermarket switches can sometimes fail to read pressure correctly. If you replace the switch and the light stays on, or if you hear engine knocking or rattling, stop the engine immediately. A mechanic should test the actual oil pressure 🎬 See how to diagnose low oil pressure on a RAV4. with a mechanical gauge to diagnose the problem correctly.
Choosing a New Aftermarket Oil Pressure Switch
For a 1996-2010 RAV4, you don't necessarily need to buy a part from the Toyota dealer. Several reputable aftermarket brands offer quality replacements at a lower cost. Here’s a breakdown of your options:
| Brand Tier | Brands | Quality & Price Assessment |
|---|---|---|
| OEM-Equivalent / Premium Aftermarket | Beck Arnley, Standard Ignition (SMP) | These brands are well-regarded in the industry. Beck Arnley is known for sourcing parts that match original equipment (OE) form and fit, and sometimes even repackages the actual OE part. Standard Ignition manufactures a wide range of quality sensors and switches 🎬 Learn more about the quality of Standard aftermarket oil switches.. Expect to pay a bit more for these, but they offer reliability and peace of mind. |
| Standard Aftermarket | Facet, Holstein | These brands provide a good balance of quality and value. Facet is an established European brand known for its electronic components. Holstein parts are designed to be reliable replacements. They are solid choices for a daily driver without the premium price tag. |
| Economy / Value | Global Parts, True Tech, Rostra Powertrain | These brands offer the most budget-friendly options. They are suitable for owners looking for a functional, low-cost repair. While they meet basic requirements, they may not have the same long-term durability or precise calibration as premium brands. |
Installation Notes
Replacing the switch is a straightforward job for a DIYer. On most 4-cylinder RAV4 engines (like the 3S-FE and 5S-FE), the switch is located on the cylinder head, often near the valve cover, making it relatively easy to access. You will need a deep socket (often 24mm or 27mm) to remove and install it. It's important not to overtighten the new switch, as the threads are tapered; the recommended torque is low, around 11 ft-lbs. Using a thread sealant is often recommended by the factory service manual.
Frequently Asked Questions (FAQ)
Can I drive my RAV4 with the oil pressure light on?
No. If the oil pressure light is on, you should pull over and turn off the engine as soon as it is safe to do so. Driving with low oil pressure can cause catastrophic engine failure very quickly. Check your oil level. If it's low, topping it off might turn the light off, but you should still find and fix the leak. If the oil level is fine, the problem could be the switch or a more serious internal issue, and the vehicle should be inspected.
Are there any recalls for the oil pressure switch on my 1996-2010 RAV4?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the engine oil pressure switch on 1996-2010 Toyota RAV4 models. There are TSBs for newer RAV4 models regarding oil pressure warnings in freezing temperatures, but these do not apply to the 1996-2010 generation.
What is the difference between an oil pressure switch and an oil pressure sender?
They are often the same part, and the terms are used interchangeably. A "switch" is a simple on/off device that triggers the warning light at a set pressure. A "sender" or "sensor" provides a variable signal that can drive a physical gauge on the dashboard. For most RAV4 models in this year range, the part functions as a simple switch for the warning light.
My new aftermarket switch didn't fix the problem. What now?
First, double-check that the electrical connector is clean and making good contact. If the light is still on, the problem is likely not the switch. It could be a wiring issue, a problem with the instrument cluster, or, more seriously, an actual low oil pressure condition caused by a worn oil pump or sludge buildup in the engine. At this point, it is critical to have a professional mechanic test the engine's oil pressure with a mechanical gauge.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83530-0E010 83530-60020 83530-30090
Typically a single-terminal, normally-closed switch with tapered pipe threads. Socket size for removal is often 24mm or 27mm.
