Audi A4 Windshield Washer Pump Guide: 1996-2020 Models
If your washer fluid isn't spraying, the pump is a likely and affordable part to replace yourself.
- Verify if your A4 has headlight washers, as this may require a different or second pump.
- Replacement is a simple DIY job, accessed through the driver's side front wheel well.
- Always check the fuse first, as a blown fuse can mimic pump failure.
- Aftermarket brands like Continental, Vemo, and URO Parts offer reliable, cost-effective alternatives to OEM.
Symptoms of a Failing Audi A4 Washer Pump
A bad washer pump has a few common symptoms. The most obvious is that no fluid sprays out when you try to wash your windshield, but you can still hear the wiper blades move. You might also hear the pump motor whirring, but no fluid comes out, indicating a possible internal failure or a clog in the system. Other signs include weak or inconsistent spray pressure and fluid leaks under the vehicle, typically near the front driver's side wheel where the reservoir is located.
Check the Fuse First
Before ordering a new pump, always check the fuse. A blown fuse can mimic the symptoms of a dead pump. On some A4 models, a single seized pump (like for the headlights) can blow a fuse that disables both pumps. Your owner's manual will have the correct fuse location and rating.
Choosing the Right Aftermarket Pump
When replacing the washer pump on your A4, you have several aftermarket options that offer a good balance of quality and value compared to pricier OEM parts. The key is to identify your car's specific needs—does it have headlight washers or a rear wiper? This determines if you need a single pump, a dual-outlet pump, or two separate pumps.
- Continental: Often an Original Equipment Manufacturer (OEM) for Volkswagen and Audi, Continental pumps are a top-tier choice known for reliability and fitment that matches the factory part.
- Vemo: A German aftermarket brand that offers parts for many European vehicles. User reviews suggest Vemo is a reliable choice for non-critical components like washer pumps, often performing well for years.
- URO Parts: This brand provides budget-friendly options. While some users are cautious about using URO for critical moving parts, their simpler components like washer pumps are often considered a good value for the price.
- Trico: Well-known for wiper blades, Trico also offers replacement washer pumps that are a viable aftermarket alternative.
| Part Type | Price Range |
|---|---|
| New Aftermarket Pump | $13.12 - $57.11 |
Replacing Your A4's Washer Pump
Replacing the washer pump is a straightforward DIY job for most A4 owners. The pump is located in the washer fluid reservoir, which is accessed by removing the driver's side front wheel and pulling back the fender liner. You don't always need to remove the entire reservoir; often, you can unbolt it and tilt it to access the pump at the bottom. The pump itself is simply press-fit into a rubber grommet.
Pro Tip: Have a bucket ready before you pull the old pump out, as the entire contents of the washer reservoir will drain out. It's also a good time to replace the small rubber grommet the pump sits in to prevent future leaks.
Known Issues and Technical Bulletins
While there are no widespread recalls for the washer pump itself, Audi has issued a Technical Service Bulletin (TSB 92 22 28 2065963/1) for some 2019-2021 models concerning a leaking corrugated washer hose inside the cabin, which can cause low pressure and wet carpets. Additionally, owners on forums report that washer nozzles can become clogged over time, leading to low pressure, which can be mistaken for a failing pump.
Frequently Asked Questions
Do I need a special pump for my headlight washers?
Yes. On Audi A4 models equipped with headlight washers, there is typically a second, separate, and more powerful pump dedicated to that system. Make sure you are ordering the correct pump for the windshield, not the headlights.
How do I know if the pump is bad or if it's just a clog?
First, check the fuse. If the fuse is good, listen for the pump motor when you activate the washers. If you hear nothing, the pump is likely dead. If you hear the motor running but no fluid sprays, you could have a clog in the lines or nozzles, or the pump's internal impeller may have failed. You can disconnect the hose from the pump to see if it sprays fluid; if it does, the clog is further down the line.
Is it difficult to replace the washer pump myself?
No, this is considered an easy DIY repair. The main steps involve safely jacking up the car, removing the driver's side front wheel, and removing some screws or clips to access the fender liner. Basic hand tools like a socket set and Torx drivers are usually all that's needed.
Why did my new aftermarket pump stop working after a week?
While a defective part is possible, it could also be an electrical issue. A failing component elsewhere in the system, like a seized headlight washer pump, could be blowing the fuse for the entire washer system. It's also worth checking for clogs in the lines that could overwork the new pump.

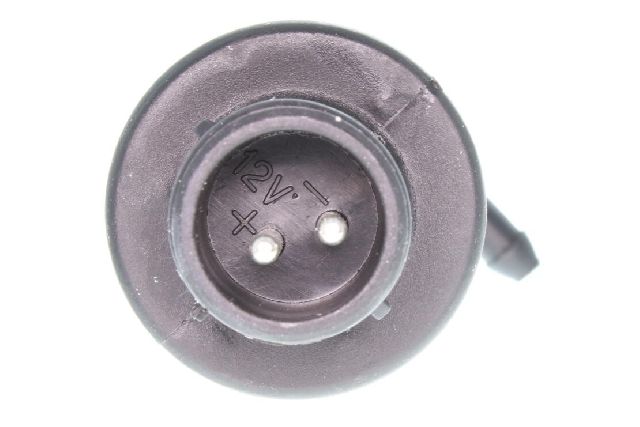

Technical Specifications
OEM Part Numbers: 1K6955651 1J5955651 67128362154 67128377612
12V electric motor. Can be a single pump, dual-outlet pump, or part of a two-pump system (if equipped with headlight washers). The pump is press-fit into the washer fluid reservoir.
