Guide to Replacing the Door Lock Actuator on a 1997-2001 BMW 323i
If your E46 door locks are acting up, the actuator is the likely culprit—here's the fix.
- Actuator failure is a very common problem on BMW E46 models; if one door fails, it's the actuator.
- The job is DIY-friendly but requires patience for removing the door panel and working in tight spaces.
- Always disconnect the battery before starting to safely handle the airbag connector.
- Ensure you buy the correct position-specific actuator (e.g., Front Driver's Side) as they are not interchangeable.
Is Your BMW 323i Door Lock Misbehaving?

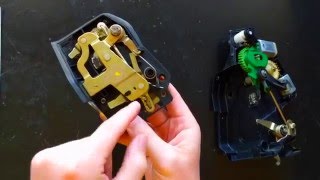

A faulty door lock actuator is a very common issue for the E46 generation of BMWs, including the 1997-2001 323i. The problem usually isn't with the car's central computer, but with the individual motor in the door. The internal plastic gears and electrical contacts simply wear out after two decades of use. 🎬 See a teardown of why these internal gears fail. The good news is that replacing the faulty actuator with a new aftermarket part is a cost-effective and permanent solution.
Don't Confuse Actuator and GM5 Module Failure
A key diagnostic tip: if only one door lock is failing to operate, the problem is almost certainly that door's actuator. If multiple doors start having issues at the same time, or the problems are intermittent across all doors, you may have a fault with the General Module 5 (GM5). This guide focuses on the much more common single-actuator failure.
Choosing the Right Aftermarket Actuator
When it comes to replacing this part on your 323i, you don't need to pay the high price for a Genuine BMW part from a dealer. The aftermarket offers excellent quality, often from the same companies that made the original part for BMW.
- Continental: This brand is a top-tier choice. Continental is a major Original Equipment Manufacturer (OEM) for BMW. This means the aftermarket Continental actuator is often the exact same part as the one sold in a BMW box, just without the BMW logo and corresponding price markup. For a balance of factory-level quality and reasonable cost, Continental is a strong recommendation.
- Standard Ignition (Standard Motor Products): A well-respected name in the aftermarket, Standard Ignition provides reliable replacement parts that meet or exceed OEM specifications. While not an OEM for this specific part, their products are a dependable and affordable alternative to the dealer.
Cost of Replacing a BMW 323i Door Lock Actuator
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Continental, Standard Ignition) | $77 - $102 |
| New Genuine BMW (OEM) | $195 - $255+ |
| Shop Labor | $150 - $300 |

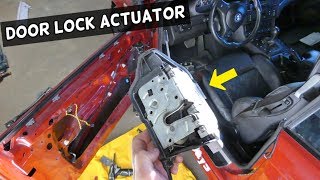

Pro Tip: Replacing a door lock actuator is a manageable DIY project for those with basic tools and patience, taking about 1-2 hours. 🎬 Watch this step-by-step guide to replacing the front actuator. This can save you hundreds in shop labor costs.
Frequently Asked Questions
Can I replace just the one broken actuator?
Yes. You only need to replace the actuator in the door that is malfunctioning. It is not necessary to replace them all at once.
Are the actuators the same for every door?
No, they are not. Each door (front left, front right, rear left, rear right) requires a specific actuator. Ensure you order the correct part for the specific door you are repairing.
What tools are needed for the job?
You will need basic hand tools like a socket set, screwdrivers, and most importantly, a set of Torx bits (T20, T30). A set of plastic trim removal tools is also highly recommended to avoid breaking the clips on the door panel.
Is this a difficult DIY job?
It is considered moderate difficulty. The main challenges are carefully removing the door panel without breaking clips, peeling back the foam vapor barrier without tearing it, and working in the tight space inside the door. It is crucial to disconnect the car's battery before starting, especially since you will need to disconnect the side airbag.

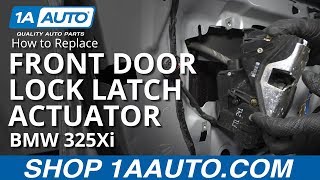

🎬 Follow this video for a safe door panel removal walkthrough.Are there any recalls for this issue?
No, there are no specific recalls issued by the NHTSA for door lock actuator failure on the 1997-2001 BMW 323i. This is considered a wear-and-tear item, not a safety defect.
Helpful Videos
Technical Specifications
OEM Part Numbers: 51217011305 51217011308 51227011309 51227011310 51217011241 51217011244 51227011245 51227011246
Vehicle- and position-specific electromechanical actuator. For the 1997-2001 BMW 323i (E46 chassis), part numbers vary based on production date (before or after 09/2000) and door location (Front Left, Front Right, Rear Left, Rear Right). Always verify the part number for your specific vehicle.
