BMW 323i (1997-2001) Engine Oil Pressure Switch: A Complete Guide
Understanding the signs of a failing oil pressure switch can save your BMW's engine from serious damage.
- A red oil light is a critical warning; stop the car immediately and check the oil level.
- The oil pressure switch is a common failure point and a cheap, easy part to replace as a first step in diagnosis.
- The switch is located on the oil filter housing and is known to leak oil when it fails.
- For best results, choose an OEM-quality aftermarket brand like Hella or Febi.
Is Your BMW 323i Oil Pressure Light On?
A flickering or constantly illuminated red oil pressure light on your dashboard is a serious warning. While it can indicate a major problem like a failing oil pump, it often points to a much simpler and cheaper issue: a bad oil pressure switch. These switches can fail in two main ways: they can start leaking oil externally, or they can fail internally, sending a false low-pressure signal. Given the low cost of the part and the critical role it plays, it's often the first thing to replace when you have oil pressure light issues but your oil level is correct.
Stop Driving Immediately
If your red oil pressure light comes on and stays on while driving, pull over safely and turn off the engine as soon as possible. Driving with low oil pressure can destroy your engine in a very short amount of time. Always verify your engine oil level first. If the level is correct, the problem could be the switch, but you should not risk driving the vehicle until it has been properly diagnosed.
Choosing the Right Aftermarket Oil Pressure Switch
For the 1997-2001 BMW 323i, which includes both the E36 and E46 chassis, several aftermarket brands offer replacement switches. The genuine BMW part is always an option, but quality aftermarket parts can offer similar performance for less money. Here’s a breakdown of available brands:
- OEM-Quality Brands (Hella, Febi): Hella is a known original equipment (OE) supplier to BMW for various sensors. Choosing a Hella switch is often like buying the genuine part without the BMW logo and price tag. Febi Bilstein is another German brand with a strong reputation for producing parts that meet or exceed OE standards. These brands are a reliable choice for durability.
- Quality Aftermarket Brands (Beck Arnley, Standard Ignition): Beck Arnley specializes in sourcing parts for foreign nameplate vehicles and often re-boxes parts from OE suppliers. They are generally considered a high-quality option. Standard Ignition (SMP) is another trusted name in automotive electronics.
- Value-Oriented Brands (URO Parts, Facet): URO Parts offers a more budget-friendly alternative. While some of their parts are well-regarded, forum discussions indicate their electronic components, like sensors, can have a higher failure rate than premium brands. It might be a viable option if budget is the primary concern, but be aware of the mixed reviews.
Pro Tip: Check for Leaks
Before ordering, inspect your current oil pressure switch. It's located on the oil filter housing. A very common failure mode is for the switch to leak oil through its plastic housing or connector. If you see oil residue around the switch, it definitely needs to be replaced.
Cost of Replacing the Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM BMW Switch | $25 - $45 |
| New Aftermarket Switch | $7 - $23 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on my 1997-2001 323i?

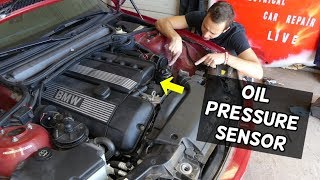

The oil pressure switch is screwed into the side of the oil filter housing in the engine bay. On the 6-cylinder engines used in these models, you may need to remove the air filter box 🎬 See exactly where the oil pressure switch is located. to get clear access to it.
Is it difficult to replace the oil pressure switch myself?
No, this is a very DIY-friendly job. It requires basic hand tools, like a deep socket (often 24mm) and a ratchet. The process involves disconnecting the battery, unplugging the electrical connector, unscrewing the old switch, and screwing in the new one. 🎬 Watch this step-by-step guide to replacing your oil pressure sensor. Be prepared for a small amount of oil to spill out.
My oil light flickers at idle. Is it the switch?
A flickering oil light at idle, especially when the engine is warm, can be a symptom of a failing switch, but it can also indicate actual low oil pressure. Because it's an inexpensive part, replacing the switch is a good first diagnostic step after confirming the oil level and condition are correct. If a new switch doesn't solve the problem, you should have a mechanic perform a manual oil pressure test immediately.
🎬 Watch a mechanic diagnose and fix oil sensor fault codes.Are there any recalls for the oil pressure switch on the BMW 323i?
There are no specific recalls for the oil pressure switch on the 1997-2001 BMW 323i. Recalls for this vehicle range primarily concern Takata airbags.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12618611273 12617620512 12617568480 12612367061 12611710509 12611730160
Thread Size: M12x1.5, Connector: 1-Pin, Wrench Size: 24mm
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
