Cadillac Catera Engine Coolant Thermostat Guide (1997-2001)
Everything you need to know before replacing the thermostat on your 1997-2001 Cadillac Catera.
- The thermostat is an integrated housing assembly; you cannot replace just the inner valve.
- Replacement is a difficult, labor-intensive job due to the part's location under the intake manifold, making it a poor choice for a DIY beginner.
- A failing thermostat is a common cause of overheating or a P0128 check engine light code on the Catera.
- Due to high labor costs, using a quality aftermarket brand like Gates or Stant is recommended to ensure reliability and avoid repeat repairs.
Is Your Catera's Thermostat Failing?
A bad thermostat can cause serious engine problems, from poor performance to major damage. Because the Cadillac Catera is known for having some cooling system weaknesses, paying attention to the signs of a failing thermostat is critical. The most common failure is the thermostat getting stuck open or closed.
Symptoms of a Bad Thermostat
- Engine Overheating: If the thermostat is stuck closed, coolant can't get to the radiator to be cooled. You'll see the temperature gauge climb into the red, especially when idling or in stop-and-go traffic.
- Engine Running Too Cool: A thermostat stuck open will constantly circulate coolant, preventing the engine from reaching its proper operating temperature. This often triggers a Check Engine Light with code P0128.
- Erratic Temperature Gauge: The temperature needle may swing wildly from cool to hot, indicating the thermostat is not regulating temperature correctly.
- Poor Heater Performance: If your engine isn't getting hot enough, the air blowing from your heater vents will be lukewarm at best.
- Coolant Leaks: The thermostat housing itself can crack or the seal can fail, leading to coolant leaks near the top of the engine.
Choosing the Right Aftermarket Thermostat

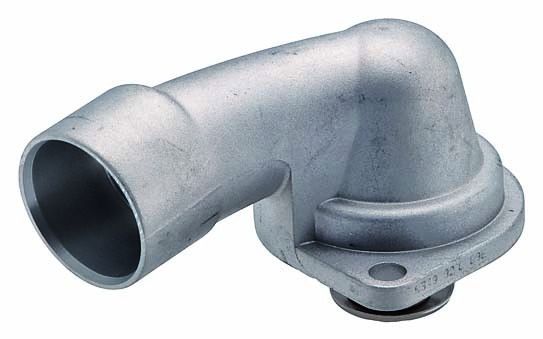

For the 1997-2001 Cadillac Catera, the thermostat is sold as a complete housing assembly. You cannot buy just the internal valve. While an OEM part from a dealer is always an option, quality aftermarket brands provide a reliable and more affordable solution. Here’s a look at the brands available:
- Gates: A well-known and generally trusted aftermarket brand. Gates thermostats are designed to be an OE-equivalent, all-in-one solution that meets or exceeds original standards.
- Stant: Another major player in the aftermarket cooling system world. Like Gates, they are generally considered a safe bet for quality and fit.
- Facet: An Italian brand that some users feel offers good quality, potentially better than other standard aftermarket options.
- Vemo: A German brand that offers parts for European vehicles like the Catera (which is based on the Opel Omega).
While some forum users express a preference for OEM parts to guarantee longevity, reputable aftermarket brands like Gates and Stant are widely used with good results. Given the high cost of labor for this specific repair, choosing a quality part is essential to avoid doing the job twice.
Aftermarket Thermostat Cost
| Brand Tier | Price Range |
|---|---|
| Aftermarket (Gates, Stant, etc.) | $50.70 - $87.99 |
Known Issues & Technical Service Bulletins (TSBs)
No Recalls: There are no active NHTSA safety recalls for the thermostat on the 1997-2001 Cadillac Catera.
TSB #010602004: In July 2001, GM issued a TSB regarding "Revised Thermostat Replacement and Installation Procedures." This indicates that the replacement can be tricky. The location of the thermostat housing, tucked under the intake manifold, makes it a difficult part to access. This difficulty is the primary reason for the high labor costs associated with this repair.
Frequently Asked Questions (FAQ)
Where is the thermostat located on a 1997-2001 Cadillac Catera?
The thermostat housing is located on the 3.0L V6 engine, underneath the upper intake manifold. Its difficult-to-reach position is why replacement is considered a tough job that takes several hours.
Is replacing the Catera thermostat a good DIY job?
This is not recommended for beginners. Mechanics and experienced owners describe the job as "an absolute bear" due to the tight space and the need to maneuver the part out from under the intake manifold. Some even loosen the intake manifold to create enough room to work. Given the high labor time, an incorrect installation could be a costly mistake.
Should I replace anything else at the same time?
Since the cooling system will be drained, it's a perfect time to refill it with fresh, new coolant. While you have access, it's also wise to inspect the nearby coolant hoses for any signs of cracking, swelling, or brittleness and replace them if necessary.
What temperature thermostat should I use for my Catera?
You should use a thermostat with the OE-specified temperature, which is typically 195°F or 198°F (92°C). Using a thermostat with the wrong temperature rating can lead to poor engine performance, incorrect fuel mixture, and potential Check Engine Light issues.
Technical Specifications
OEM Part Numbers: 90502201
Integrated housing with thermostat and seal. OE Temperature: 195°F / 92°C or 198°F / 92°C.
