A Ford Mechanic's Guide to 1997-2001 Expedition Disc Brake Hardware
Don't let worn-out clips and springs ruin your brake job; here's what you need to know.
- Always replace the disc brake hardware kit when changing brake pads to prevent noise and ensure even wear.
- Symptoms of bad hardware include rattling, squealing, and uneven pad wear.
- Clean the caliper bracket thoroughly with a wire brush before installing new hardware clips.
- For a few extra dollars, brands like Dynamic Friction and Raybestos Element3 may offer better corrosion resistance with stainless steel components.
Is Your Expedition's Brake Hardware Failing?
On an older truck like the 1997-2001 Expedition, the original brake hardware has been exposed to heat, water, and road salt for decades. The metal clips lose their spring tension, rust, and break. The small rubber boots for the caliper slide pins crack and tear. Most brake noise that isn't from worn-out pads is caused by worn or missing hardware. When a shop or a DIYer does a "pad slap"—installing new pads without new hardware—it almost always leads to problems like noise and uneven wear. Always replacing the hardware is a cheap and easy way to make sure your brake job lasts.
Symptoms of Bad Disc Brake Hardware
- Rattling or Clunking Noises: Loose or missing clips can allow the brake pads to rattle around in the caliper bracket, especially over bumps.
- Squealing or Scraping: Worn clips can allow the pads to sit at a slight angle, causing a constant high-pitched squeal or scrape against the rotor.
- Uneven Brake Pad Wear: If the pads can't slide freely, one might wear out much faster than the other. This is often caused by rusted caliper bracket contact points where the clips sit.
- Brakes Dragging: Worn-out springs or binding hardware can prevent the pads from pulling away from the rotor, causing constant friction, heat, and poor fuel economy.
Choosing the Right Aftermarket Hardware Kit
For a vehicle like the first-generation Expedition, you don't need to hunt down expensive OEM hardware. Aftermarket kits offer excellent value and often use high-quality materials. The key is to choose a reputable brand and avoid the cheapest generic options, which may not fit correctly. All the brands listed are considered real, reputable brands suitable for a daily driver.
Aftermarket Brand Tiers
| Tier | Brands | Quality & Notes |
|---|---|---|
| Better | Dynamic Friction (DFC), Raybestos (Element3 line) | Often uses higher-grade materials like stainless steel or includes rubber-coated abutment clips, which resist corrosion and heat better than standard kits. This is a smart upgrade for longevity, especially in rust-prone areas. |
| Good (Standard Replacement) | Centric, Carlson, Dorman, Raybestos (Service Grade) | These brands provide complete, reliable kits that meet or exceed original quality. They are the go-to for most daily-driver repairs. Centric, Raybestos, and Carlson are reportedly part of the same parent company. Fit and function are generally very good. |
Pro Tip: When you replace the hardware, take a wire brush and clean all the rust and debris from the caliper bracket where the new clips will sit. A clean surface is essential for the new parts to fit correctly and allow the pads to move freely. Apply a thin layer of high-temperature brake grease to the points where the pad ears slide on the new clips.
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware every time?
Yes. It is highly recommended. The old clips have been heat-cycled thousands of times and have lost their tension. Reusing them is the number one cause of noise complaints after a brake job. For the low cost of a hardware kit, it is cheap insurance for a quiet, long-lasting brake job.
What's the difference between front and rear hardware kits?
The front and rear brakes on your Expedition are different sizes and use different calipers. The hardware kits are specific to the front or rear axle and are not interchangeable. You must buy the correct kit for the axle you are working on.
My new brake pads came with hardware. Should I use it?
Usually, yes. Most quality brake pad sets include a new hardware kit. If the included hardware is from a reputable brand (like the ones listed above), it is perfectly fine to use. If you bought very cheap, unbranded pads, you might consider buying a separate, better-quality hardware kit to be safe.
What are the rubber boots in some kits for?
Those are dust boots for the caliper slide pins. The slide pins allow the caliper to move back and forth. If these boots tear, water and dirt get in, causing the pins to seize. A seized pin is a very common cause of uneven pad wear. If your new hardware kit includes them, it's a good idea to replace them.
Technical Specifications

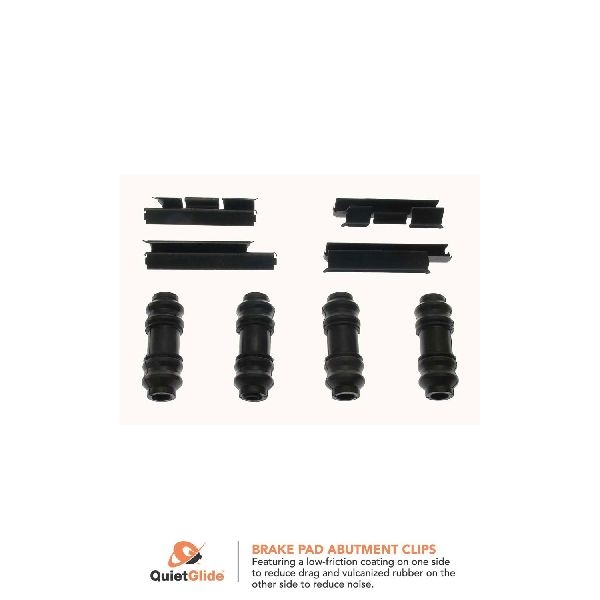

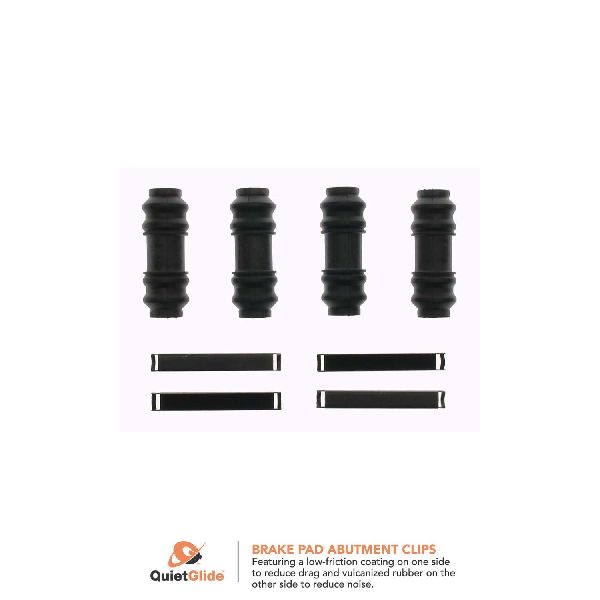

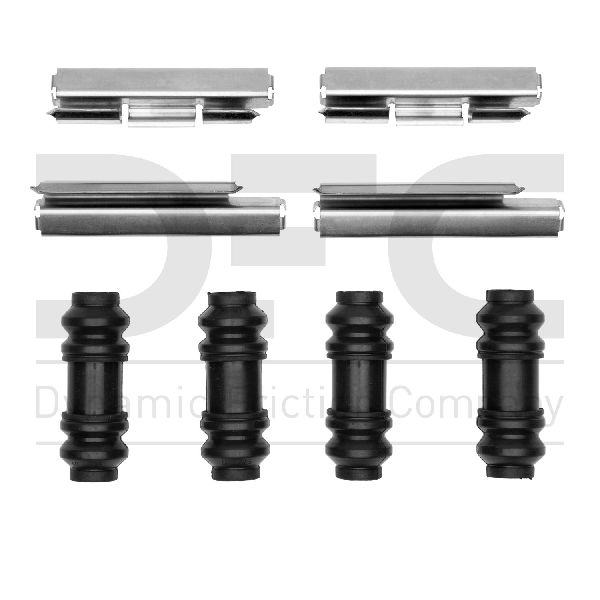

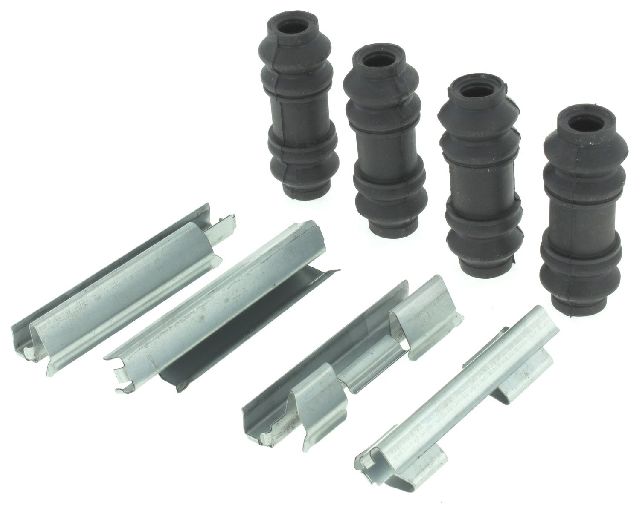

Kits typically include anti-rattle abutment clips and pad spreader springs. Some kits may also include caliper slide pin boots. Materials vary from standard zinc-plated steel to more corrosion-resistant stainless steel.
