Ford E-250 Econoline HVAC Blower Motor Resistor Guide (1997-2002)
If your van's fan only works on high or has lost some speeds, this guide is for you.
- The most common symptom of failure is the fan only working on the highest speed setting.
- Always inspect the blower motor; a failing motor will quickly burn out a new resistor.
- The resistor is easy to replace yourself. It's located behind the battery in the engine bay.
- If the electrical connector looks melted or corroded, replace it along with the resistor.
Is Your E-250's Fan Acting Up?

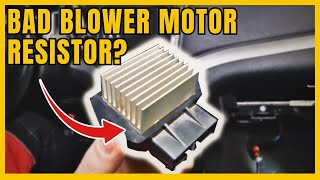

One of the most common electrical failures in the 1997-2002 Ford E-250 Econoline is a bad blower motor resistor. The classic symptom is a fan that only works on the highest setting. 🎬 Learn more about the top signs of a bad resistor. You might also lose one or two of the lower speeds, or the fan might not work at all. Sometimes, you may even smell a burning plastic odor from the vents, which is a sign the resistor or its wiring is overheating and needs immediate attention.
A Critical Warning Sign: A Failing Blower Motor
The number one killer of a new blower motor resistor is a worn-out blower motor. An old motor has to work harder, pulling too much electrical current (amps), which overheats and burns out the delicate coils in the resistor. If you replace the resistor but not a failing motor, the new resistor will likely fail again quickly. Before installing a new resistor, it's a smart move to inspect the blower motor itself. 🎬 Watch this guide to diagnose blower motor issues in Ford vans. If it's noisy, hard to spin by hand, or if tapping on its housing makes it start working, it's time to replace both parts at once.
🎬 See how to remove the blower motor on an E250.Choosing the Right Aftermarket Resistor
For a vehicle like the E-250 Econoline, you don't need to pay dealership prices for a reliable part. Aftermarket brands offer good quality and value. Many aftermarket kits even include a new wiring harness connector, which is highly recommended to replace, as the original often gets corroded or melted.
- Tier 1 (Premium Aftermarket): Brands like Standard Ignition (SMP) and Dorman are well-known and generally trusted for electrical parts. They design their parts to match the original's performance and often have strong warranties. Dorman is particularly known for including helpful components like new harnesses.
- Tier 2 (Standard Aftermarket): Brands like Four Seasons and Global Parts (GPD) are common, affordable options. While some users report good experiences, others view them as re-boxed, lower-quality parts. For a part that is relatively easy to access on the E-250, these can be a decent budget choice, but may not have the same longevity as premium brands.
- Other Brands: Holstein, True Tech, and URO Parts are also available and fall into the standard/economy category.
Pro Tip: Check the Connector
When you remove the old resistor, inspect the electrical plug carefully. If you see any signs of melting, discoloration, or green corrosion, you must replace the connector pigtail. A bad connection will cause the new resistor to fail. Many Dorman and Standard Ignition kits come with a new pigtail for this reason.
Aftermarket vs. OEM Cost for 1997-2002 Ford E-250 Econoline
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Resistor | $15 - $56 |
| New OEM (Motorcraft) Resistor | $45 - $80 |
| Shop Labor Cost | $50 - $100 |
Frequently Asked Questions
Where is the blower motor resistor located on my E-250?
The resistor is located in the engine bay on the passenger side. You will find it mounted to the large black plastic HVAC housing, right behind the battery. To access it, you must first remove the battery and the battery tray.
Is this a difficult part to replace myself?
No, this is a great DIY job for beginners. The main task is removing the battery and its tray to get access. After that, the resistor is held in by just two 8mm screws. The entire job can usually be done in under an hour with basic hand tools.
Why do my fan speeds work sometimes but not others?
This usually points to a failing resistor or a poor electrical connection at the plug. Corrosion or heat damage can cause the connection to be intermittent. Wiggling the connector or hitting a bump might make it temporarily work again. Replacing both the resistor and the connector pigtail is the best fix.
Do I need any special tools for the replacement?
You will need basic hand tools: a ratchet with extensions, and 8mm, 10mm, and 13mm sockets to remove the battery terminals, hold-down, and tray. A flat-blade screwdriver can be helpful for prying off the old, stubborn electrical connector.
Are there any recalls for this part on my van?
No, there are no specific recalls for the blower motor resistor on the 1997-2002 Ford E-250 Econoline. While the NHTSA investigated melting HVAC switches on these vans, it did not lead to a recall. More recent recalls for blower motors affect much newer model years and are for different issues.
Helpful Videos
Technical Specifications
OEM Part Numbers: XC2Z-19A706-AA F7UZ-19A706-AA
4-prong connector, 3-coil resistor design for 4-speed fan control.
