A Ford Mechanic's Guide to the 1997-2002 E-250 Econoline Knock Sensor
Don't let a bad knock sensor hurt your van's engine performance and fuel economy.
- The knock sensor is located under the intake manifold, making replacement a labor-intensive and expensive job.
- Due to the high labor cost, it is critical to use a high-quality aftermarket brand like Bosch, NGK (NTK), or Delphi.
- Always replace the intake manifold gaskets and consider replacing other accessible sensors at the same time to avoid future labor costs.
- Symptoms include a P0325 code, poor acceleration, bad fuel economy, and potential engine pinging.
Is Your E-250's Knock Sensor Failing?
A failing knock sensor can cause problems that you might notice while driving. The most obvious sign is the check engine light turning on. You may also feel that your van is sluggish and doesn't accelerate as it should. Another common symptom is a drop in fuel economy, meaning you'll be stopping for gas more often. In some cases, you might hear a metallic pinging or knocking sound coming from the engine, especially when it's working hard, like going up a hill or towing.
The Biggest Challenge: Replacement Location
For the 1997-2002 Ford E-250 Econoline, whether you have the 4.2L V6 or the 5.4L V8, the knock sensor is in a very difficult spot to reach. It is located in the valley of the engine, underneath the entire intake manifold assembly. This means that to replace the sensor, a mechanic must remove the intake manifold. This is a labor-intensive job that requires draining the coolant, disconnecting fuel lines, and removing many other parts to get to it.
🎬 See these expert tips for removing the Ford Triton intake manifold.Pro Tip: Replace More Than Just the Sensor
Because getting to the knock sensor is such a big job, it is highly recommended to replace other parts located under the intake manifold at the same time. This includes the intake manifold gaskets, and often the coolant temperature sensor. This preventative maintenance can save you from having to pay for the same expensive labor charge again in the near future.
Choosing the Right Aftermarket Knock Sensor
Since the labor to replace this sensor is high, it is not a job you want to do twice. Choosing a quality part is critical. While an OEM part from Ford might be hard to find for this age of vehicle, several aftermarket brands offer excellent quality.

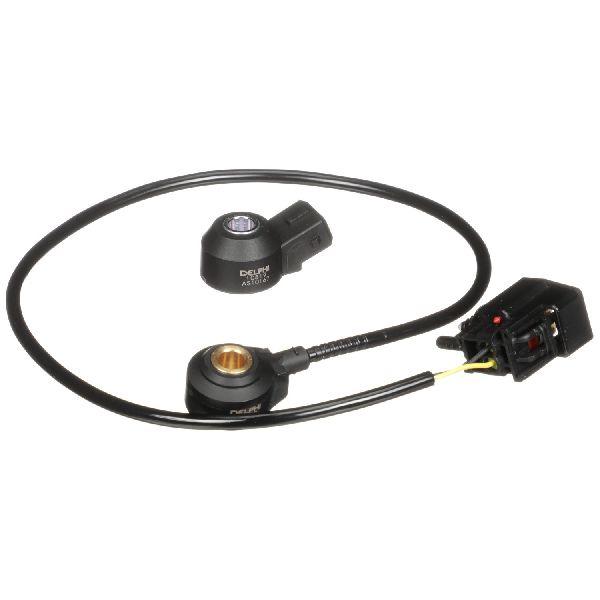

- Premium Brands (Recommended): Brands like Bosch, NGK (NTK), and Delphi are often original equipment suppliers to many automakers and have a strong reputation for quality and reliability. Given the difficult installation, spending a little more on a sensor from one of these brands is a smart investment.
- Standard Brands: Standard Ignition (SMP) is a well-respected brand in the aftermarket and is generally considered a reliable choice.

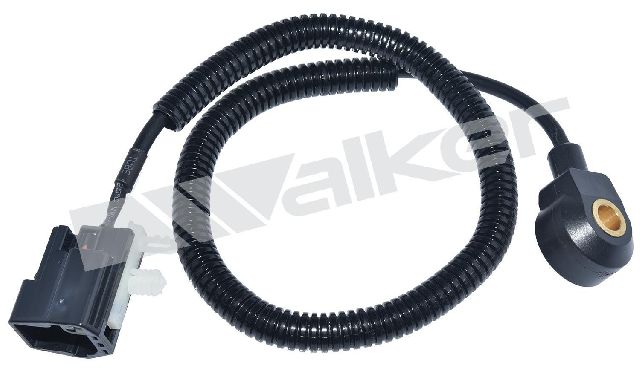

- Economy Brands: Other brands like Walker Products, Holstein, and various store brands are available at a lower price. While tempting, using a budget part for a job this labor-intensive carries a risk. If the cheaper part fails early, you will have to pay for the entire installation cost all over again.
A Word on Wiring
Before you assume the sensor itself is bad, it's important to check the wiring. Forum users and technicians report that the wiring harness leading to the sensor can become damaged, frayed, or chewed by rodents, causing the same error codes. A damaged wire is a much simpler fix if it can be accessed without removing the manifold.
Cost of Replacing the Knock Sensor
The cost can be broken down into two parts: the sensor itself and the labor to install it. The price of the part is small compared to the cost of labor.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Knock Sensor | $35 - $132 |
| Shop Labor | $450 - $700 |
| Total Estimated Cost | $485 - $832 |
*Cost estimates are based on the part price range provided and typical shop labor rates for a 4-6 hour job. Your costs may vary based on location and the specific repair shop.
Frequently Asked Questions
Where is the knock sensor on a 1997-2002 E-250?
The knock sensor is located on the engine block in the valley between the cylinder heads, underneath the intake manifold. You cannot see it or access it without removing the intake manifold first.
🎬 Watch: See exactly where the sensor is hidden on the E-250.Can I drive my E-250 with a bad knock sensor?
Yes, but it is not recommended for long. The engine computer will go into a 'safe mode' with reduced power to protect the engine. You will experience poor performance and bad fuel economy, and you risk long-term engine damage if the sensor is failing to detect real engine knock.
What is the most common error code for a bad knock sensor?
The most common Diagnostic Trouble Code (DTC) is P0325, which means "Knock Sensor 1 Circuit Malfunction". This code indicates that the engine's computer is not receiving a proper signal from the sensor.
🎬 Watch: How to diagnose the causes of a P0325 code.Is this a DIY job?
For most people, no. Because the intake manifold has to be removed, this is considered a difficult job for an experienced DIY mechanic. It requires draining fluids, special tools, and knowledge of the correct torque sequences for reassembly. For the average vehicle owner, this job is best left to a professional mechanic.
Helpful Videos
Technical Specifications
OEM Part Numbers: F3LY12A699A 94DA12A699AA
Piezoelectric accelerometer sensor, typically with a 2-wire or 3-wire connector. Requires specific torque setting upon installation to function correctly.
