Ford Expedition Blower Motor Resistor Guide for 1997-2002 Models
If your Expedition's heat or A/C fan only works on high, this guide is for you.
- The most common sign of failure is the fan only working on the 'high' setting.
- This is a very easy and inexpensive DIY repair, located under the passenger side dashboard.
- Always inspect the wiring connector for melting and consider replacing it with the resistor.
- If a new resistor fails quickly, the blower motor is likely drawing too much power and should be replaced as well.
Is Your Expedition's Fan Acting Up?

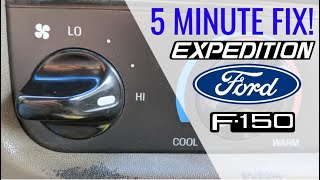

A very common problem for the 1997-2002 Ford Expedition is the climate control fan only working on its highest setting. You might also have no fan at all on lower speeds, or the fan speeds might work sometimes and not others. These symptoms almost always point to a failed blower motor resistor. 🎬 Watch: Why your fan only works on the high setting. This part gets hot as it works, and over many years of heating up and cooling down, its internal electrical coils can break.
Check the Wiring and Blower Motor First

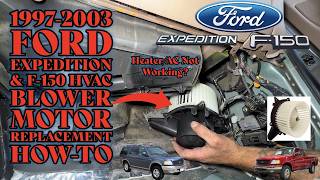

Before you replace the resistor, always check the wiring plug that connects to it. Look for any signs of melting, browning, or corrosion. A damaged connector can cause a new resistor to fail immediately. Also, if you replace the resistor and it fails again within a few weeks, the blower motor itself is likely worn out. 🎬 See how to replace the blower motor yourself. An old motor draws too much electricity, which overheats and destroys the new resistor. If the connector is melted or the resistor fails quickly, you should replace the blower motor and the resistor's wiring connector (often called a pigtail) at the same time.
Choosing a New Aftermarket Resistor
For a simple and common failure part like the blower motor resistor, an aftermarket replacement is a practical and affordable choice. The original factory part is known to fail frequently, so you are not losing much by choosing a standard aftermarket brand. Since this part is a simple set of electrical coils, a standard replacement will restore your fan functions effectively. Given the low cost, it makes sense to choose a new aftermarket part over a used one.
Blower Motor Resistor Location and Installation
On the 1997-2002 Expedition, the blower motor resistor is located under the dashboard on the passenger side. It is mounted near the blower motor housing, often tucked up behind the glove box area. To replace it, you will typically need to remove a plastic panel under the dash for access. The resistor is held in place by two screws, which usually have 8mm or 5/16" heads. The job is considered very easy for a DIY mechanic and can be completed in under 30 minutes with basic hand tools.
🎬 Watch this step-by-step resistor replacement walkthrough.1997-2002 Ford Expedition Blower Motor Resistor Cost
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $35 - $55 |
| New Aftermarket (Replacement) | $21.16 |
| Shop Labor | $49 - $72 |
Frequently Asked Questions
Why does my fan only work on the highest speed?
The highest fan speed setting is wired to bypass the blower motor resistor and send full battery voltage directly to the fan motor. The lower speeds must pass through the resistor. When the resistor's coils burn out, electricity can no longer pass through them, and only the direct 'high' setting will function.
Is there a recall on the blower motor resistor for my Expedition?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Ford for the blower motor resistor on the 1997-2002 Expedition. However, failure of this part is an extremely common and well-known issue among owners.
Where is the blower motor resistor located?
It is located on the passenger side of the vehicle, under the dashboard. It is mounted in the plastic housing near the blower fan motor itself. You may need to remove a lower trim panel to see and access it.
Can a bad blower motor resistor drain my battery?
It is highly unlikely. The resistor and blower motor only receive power when the ignition key is in the 'on' or 'accessory' position. A failure in the resistor typically creates an open circuit, which stops the flow of electricity, so it cannot drain the battery when the truck is off.

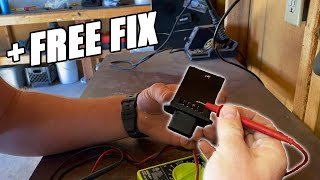

Helpful Videos
Technical Specifications
OEM Part Numbers: F8UZ-19E624-AA F7UZ-19E624-AA
4-Terminal Connector
