Guide to the 1997-2002 Ford Expedition HVAC Blower Motor Resistor
If your Expedition's heat or AC fan only works on the high setting, this guide is for you.
- The most common sign of failure is the fan only working on the 'high' setting.
- This is a very easy and inexpensive DIY repair, located under the passenger side dashboard.
- Always inspect the wiring connector for melting and consider replacing it with the resistor.
- If a new resistor fails quickly, the blower motor is likely drawing too much power and should be replaced as well.
Is Your Expedition's Fan Acting Up?
A very common problem for the 1997-2002 Ford Expedition is the climate control fan only working on its highest setting. You might also experience erratic fan speeds or no fan at all. 🎬 Watch this video to identify common signs of a faulty resistor. These symptoms almost always point to a failed HVAC Blower Motor Resistor. This part is designed to get hot as it works, and over time, the constant heating and cooling causes it to wear out and fail.
Choosing the Right Aftermarket Resistor
For a simple part like this, you don't necessarily need to buy the expensive OEM Motorcraft part. Many aftermarket brands offer reliable replacements at a much lower cost. However, quality can vary, so it's important to choose a reputable brand.

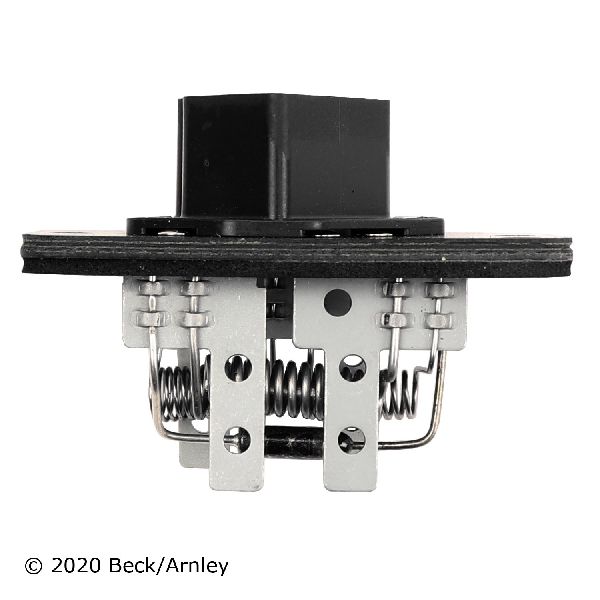

- Premium Aftermarket (Beck Arnley, Standard Ignition, Dorman): These brands are well-regarded and often produce parts that meet or exceed original specifications. Dorman is a very common choice and often includes a new wiring harness, which is a smart upgrade if your old connector shows signs of melting or corrosion.

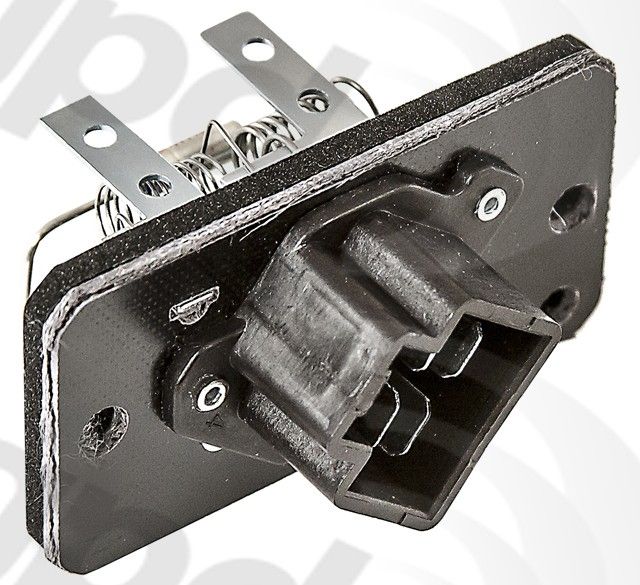

- Standard Aftermarket (Four Seasons, Global Parts, Holstein): These brands provide a good balance of quality and value. They are a solid choice for a daily driver and a significant saving over the OEM part.
- OEM (Motorcraft): This is the original part your Expedition came with. While it guarantees a perfect fit, it's the most expensive option. Some owners report that even Motorcraft replacements can fail prematurely if there's an underlying issue.
Pro Tip: Check the Blower Motor and Connector
Before you install a new resistor, inspect the electrical connector for any signs of melting, burning, or corrosion. A bad connection can cause the new resistor to fail quickly. It's also wise to check the blower motor itself. An old, worn-out blower motor can draw too much electricity, causing the new resistor to overheat and burn out. If a new resistor fails within a few days or weeks, the blower motor is the likely culprit.
🎬 See this secret tip for a successful blower motor resistor replacement.Known Issues for 1997-2002 Ford Expedition
While there are significant recalls for blower motors on newer Ford Expedition models (2015-2017) due to fire risk, there are no specific recalls or widespread Technical Service Bulletins (TSBs) for the blower motor resistor on the 1997-2002 generation. However, the failure of this part is a well-documented and extremely common issue discussed by owners in online forums.
Cost of Replacing the Blower Motor Resistor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $20 - $65 |
| New OEM (Motorcraft) | $80 - $165 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Why does my fan only work on high?
The highest fan setting sends full battery voltage directly to the blower motor, bypassing the resistor. The lower speeds (1, 2, 3) must pass through the resistor. When the resistor's internal circuits burn out, only the direct 'high' setting will function.
Where is the blower motor resistor located?
On the 1997-2002 Ford Expedition, the blower motor resistor is located on the passenger side, under the dashboard, near the blower motor housing. You may need to remove a small plastic panel to access it. It is held in by two 8mm screws.
Is this a difficult repair to do myself?
No, this is a very easy DIY job. It typically takes less than 30 minutes and only requires basic hand tools, like an 8mm socket or screwdriver. Several online videos show the exact process for this generation of Expedition and the nearly identical F-150.
🎬 Follow this step-by-step guide to replace the resistor yourself.Should I replace the wiring harness too?
It's a good idea. The high electrical current can cause the connector plug to overheat and melt over time. Many aftermarket resistors are sold as a kit with a new harness pigtail. If your original connector looks burnt, brittle, or discolored, you should replace it to prevent future problems.
Helpful Videos
Technical Specifications
OEM Part Numbers: F7UZ-19E624-AA
Typically a 4-pin rectangular connector. The part mounts into the HVAC ducting to be cooled by airflow.
