1997-2002 Jeep Cherokee Intake Air Temperature Sensor Guide
Diagnose and replace the IAT sensor on your XJ Cherokee to restore fuel economy and engine performance.
- A bad IAT sensor on a Cherokee commonly causes poor gas mileage, rough idle, and hesitation.
- Replacement is a very simple 15-minute DIY job requiring only a 19mm wrench or socket.
- The sensor's location in the intake manifold makes it prone to oil contamination, which can cause faulty readings.
- Quality aftermarket brands like Standard Ignition provide a reliable and cost-effective alternative to the more expensive OEM part.
Is a Failing IAT Sensor Hurting Your Cherokee?

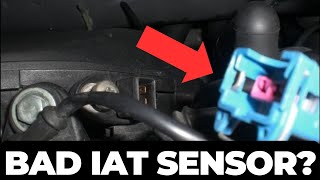

A faulty Intake Air Temperature (IAT) sensor can cause noticeable problems in your Jeep Cherokee's 4.0L engine. Because the sensor helps the engine computer decide how much fuel to inject, a bad reading can lead to poor performance. You might experience a rough idle, hesitation when you press the gas, or a decrease in fuel economy. In some cases, a bad sensor can even make the engine hard to start. 🎬 Watch: A breakdown of common bad IAT sensor symptoms. Often, the first sign of a problem is the Check Engine Light coming on.
🎬 See how to diagnose and fix a P0113 error code.Known Issue: Sensor Location and Contamination
On the 1997-2002 Cherokee 4.0L engine, the IAT sensor is screwed directly into the hot intake manifold. Its location near the crankcase ventilation (CCV) inlet means it can get coated with oil fumes over time. This contamination can insulate the sensor, causing it to send inaccurate temperature readings to the computer even if it hasn't failed electrically. Sometimes, simply cleaning the sensor can restore its function, but replacement is often the best long-term solution.
Choosing the Right Aftermarket IAT Sensor
For a simple and inexpensive part like the IAT sensor, a quality aftermarket replacement is a smart choice for most Cherokee owners. The original Mopar sensor is a reliable part, but aftermarket brands offer similar performance for less money.
- Standard Ignition (SMP): A well-regarded brand in the aftermarket world, Standard Ignition offers direct-fit replacement sensors that are engineered to meet or exceed original specifications. Customer reviews are generally positive, often mentioning easy installation and good value.
- True-Tech: Often positioned as a budget-friendly option, True-Tech provides a functional replacement for owners looking for the most cost-effective repair. While specific reviews for their IAT sensors are sparse, the brand is generally associated with affordability.
Pro Tip: Given the low cost of this part and its simple function, both Standard Ignition and True-Tech are viable options. For peace of mind and a long-standing reputation, Standard Ignition is a solid choice. If budget is the primary concern, True-Tech will get the job done.
How Much Does an IAT Sensor Replacement Cost?
Replacing the IAT sensor on a 1997-2002 Cherokee is an inexpensive repair, whether you do it yourself or take it to a shop. The part itself is affordable, and labor is minimal due to easy access.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Mopar) | $40 - $60 |
| New Aftermarket | $28 - $48 |
| Shop Labor | $25 - $50 |
| Total Professional Replacement | $53 - $98 |
Frequently Asked Questions (FAQ)
Where is the IAT sensor located on a 1997-2002 Cherokee?
The IAT sensor is located on the driver's side of the engine, screwed directly into the top of the intake manifold, toward the rear. It has a gray electrical connector.
Can I clean my IAT sensor instead of replacing it?
Yes, you can try cleaning the sensor first, especially since oil contamination is a common issue. You can use a dedicated mass airflow sensor cleaner or electronics cleaner. Spray the sensor tip and let it dry completely before reinstalling. If symptoms persist, replacement is necessary.
Is replacing the IAT sensor a difficult job?
No, this is a very easy job suitable for any DIY beginner. It typically takes less than 30 minutes and only requires basic hand tools, like a 19mm socket or wrench. You simply disconnect the electrical plug, unscrew the old sensor, and screw in the new one.

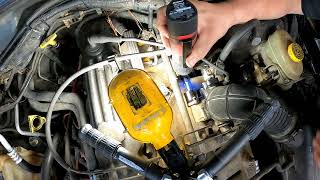

🎬 Watch this quick walkthrough of the sensor replacement process.What is the difference between an IAT sensor and a MAP sensor?
The IAT (Intake Air Temperature) sensor measures the temperature of the air entering the manifold. The MAP (Manifold Absolute Pressure) sensor measures the pressure (or vacuum) inside the intake manifold. The engine's computer uses data from both sensors, along with others, to precisely control fuel delivery and ignition timing.
Are there any recalls for the IAT sensor on the Jeep Cherokee?
No, there are no specific recalls or widespread technical service bulletins (TSBs) from Jeep for the intake air temperature sensor on the 1997-2002 Cherokee.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56027872
Location: Intake Manifold Connector: 2-Pin, Gray Tool required: 19mm wrench or socket
