Jeep Wrangler TJ Vehicle Speed Sensor Guide (1997-2002)
Fix your bouncing speedometer and poor engine performance by understanding the Vehicle Speed Sensor in your TJ.
- A faulty VSS is the most common cause of a non-working speedometer on a 1997-2002 Wrangler.
- Replacement is a simple, DIY-friendly job located on the transfer case that takes less than 30 minutes.
- Symptoms include an erratic speedometer, Check Engine Light (P0500), and poor automatic transmission shifting.
- For electronic sensors, spending a little more on a premium aftermarket brand like Standard Ignition can prevent future headaches compared to budget options.
Symptoms of a Failing Vehicle Speed Sensor
When the VSS on your TJ starts to fail, it can cause several noticeable problems. Because the sensor's signal is used by multiple systems, a bad sensor can create a range of issues from annoying to potentially unsafe.
- Erratic or Dead Speedometer: The most common symptom is a speedometer that jumps around wildly, reads incorrectly, or doesn't move at all.
- Check Engine Light: A failing VSS will often trigger a Check Engine Light and store a diagnostic trouble code, most commonly P0500.
- Cruise Control Not Working: The cruise control system relies on the VSS to maintain a set speed. If the signal is lost, the cruise control will not engage.
- Poor Automatic Transmission Shifting: On automatic Wranglers, the PCM uses the speed signal to determine shift points. A bad sensor can cause harsh shifting, delayed shifting, or a feeling of the transmission 'hunting' for the right gear.
- Stalling or Poor Idle: In some cases, especially with manual transmissions, a faulty VSS can cause the engine to stall or idle erratically when coming to a stop because the computer gets confused about whether the vehicle is moving.
Choosing the Right Aftermarket VSS
While an original Mopar sensor is often considered the gold standard, high-quality aftermarket options can offer a great balance of price and performance. However, quality varies significantly between brands, and with electronic sensors, it's often best to avoid the cheapest options to prevent doing the job twice.
Brand Quality Tiers
- Tier 1 (Premium Aftermarket): Brands like Standard Ignition (SMP) and Walker Products are generally well-regarded in the industry. They focus on meeting or exceeding OEM specifications and are a solid choice for reliability. Forum users often recommend sticking to OEM or high-quality brands for critical sensors.
- Tier 2 (Jeep-Specialist & Value): This category includes brands like Crown Automotive, Omix-Ada, and Dorman. Crown and Omix are popular in the Jeep community, but user reviews are often mixed, with some parts being excellent and others having fitment or longevity issues. Dorman provides a wide range of affordable parts, but their electronic components sometimes have a reputation for shorter lifespans. These can be a good budget option if you're aware of the potential trade-offs.
Pro Tip: Check the Connector!
The 1997 model year TJ in particular used a sensor with a different electrical connector that was prone to leaking and causing a poor connection. If you have a '97, inspect your connector for moisture 🎬 Watch a step-by-step replacement on a 1997 Wrangler. or corrosion. Some replacement kits come with a new pigtail connector that you'll need to splice into your Jeep's wiring harness for a more reliable, updated connection.
Cost of Replacing a Vehicle Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $30 - $170 |
| New OEM (Mopar) Sensor | $100 - $200+ |
| Shop Labor | $50 - $125 |
Frequently Asked Questions
Where is the VSS located on my 1997-2002 Wrangler?
The Vehicle Speed Sensor is located on the driver's side of the transfer case, at the very rear where the rear driveshaft exits. It's held in place by a single bolt and has an electrical connector attached.
Is this a difficult part to replace myself?
No, this is a very DIY-friendly job. It typically requires only basic hand tools (like an 11mm or 13mm socket), can be accessed from under the Jeep, and usually takes less than 30 minutes. 🎬 See how easy it is to swap the sensor yourself. You simply disconnect the electrical plug, remove one bolt, and pull the sensor housing out.
What is the speedometer gear and do I need to replace it?
The VSS is the electronic part, but it's driven by a plastic gear inside the transfer case. You will need to remove the VSS and its housing to access this gear. The gear itself is what needs to be swapped if you change tire size or axle gearing to make your speedometer accurate. When replacing just a faulty sensor, you typically reuse your existing gear. Make sure it is not damaged.
🎬 Learn how to inspect and seat the speedometer gear correctly.Do I need to reset the computer after replacing the VSS?
Generally, no special reset is required. Once the new sensor is installed and providing a correct signal, the Check Engine Light should turn off on its own after a few drive cycles. You can also clear the code immediately with an OBD-II scanner or by disconnecting the battery for about 15 minutes.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56027905 47079839AA SC107

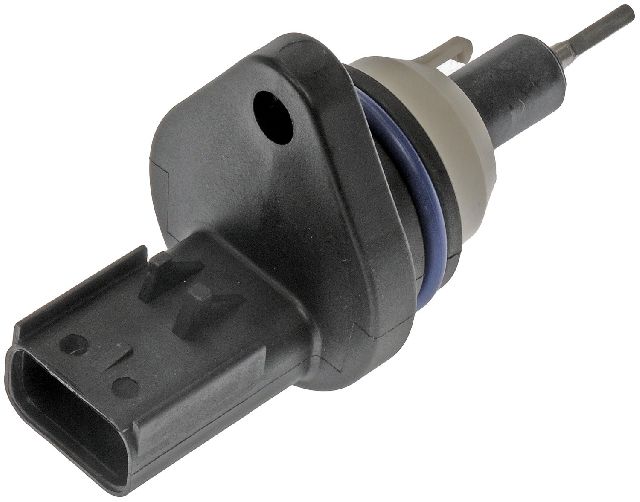

Located on the tail housing of the NP231 transfer case. The assembly consists of the electronic sensor and a removable gear housing. The internal speedometer gear must be transferred from the old unit. The 1997 model year may have a unique electrical connector.
