1997-2002 Mercury Mountaineer ABS Wheel Speed Sensor Guide
If your ABS light is on, this guide will help you understand the problem and choose the right replacement sensor for your Mountaineer.
- A constant ABS light is the primary symptom of a failed sensor.
- Your regular brakes will still work, but you will not have anti-lock functionality.
- Use an ABS-capable scanner to identify which specific sensor has failed before buying a replacement.
- For this vehicle, a quality aftermarket brand like Delphi or Bosch offers a reliable repair without the high cost of an OEM part.
Understanding ABS Sensor Failure in Your Mountaineer
A failing ABS wheel speed sensor is a common issue on the 1997-2002 Mercury Mountaineer. These sensors are located at each wheel hub, exposed to dirt, water, and road debris. Over time, this exposure, along with damage to the sensor's wiring or the toothed 'tone ring' it reads, can cause it to fail. When a sensor fails, the ABS computer can no longer see the speed of that wheel, so it shuts down the entire anti-lock system as a safety precaution and turns on the ABS warning light on your dashboard.
Known Issues, TSBs, and Recalls
Important Recall Information
While there are no recalls specifically for the ABS wheel speed sensors themselves, a significant recall (NHTSA Campaign ID: 09V399000) affects 1997 and 2002 Mountaineer models. This recall is for a faulty speed control deactivation switch that could leak and cause a fire. In some cases, the remedy involved inspecting the ABS control module connector for related damage. It's crucial to ensure this recall has been performed on your vehicle. Additionally, Technical Service Bulletin (TSB) #17215 was issued for the 2002 model regarding the ABS warning light being on with specific diagnostic codes (C1235, C1236/C1237), which point to wheel speed sensor issues.
Choosing the Right Aftermarket ABS Sensor
For a vehicle of this age, aftermarket sensors offer a great balance of value and performance. You don't necessarily need to buy the most expensive part, but it's wise to avoid the cheapest, no-name options which can have a higher failure rate. Here’s a breakdown of available brands:
- Premium Brands (Bosch, Delphi, SKF, NGK/NTK): These companies are often original equipment (OEM) suppliers for many car manufacturers. Their parts are known for high quality, good fit, and long-term reliability. Forum discussions often recommend brands like Delphi and NTK for sensors. They are an excellent choice if you plan to keep your Mountaineer for a long time.
- Mid-Tier Brands (Standard Ignition, Hella, Walker Products): These are well-known aftermarket brands that offer solid quality. They are a reliable choice and often provide a good mix of price and performance.
- Value Brands (Dorman, Holstein, URO Parts, Vemo): These brands provide a cost-effective solution. Dorman is a very common aftermarket brand, but their quality can sometimes be inconsistent. For an older vehicle, these can be an acceptable choice, especially if budget is the main concern, but be aware that the lifespan might not match that of a premium part.
Estimated Replacement Costs
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket ABS Sensor | $22 - $140 |
| Shop Labor | $65 - $95 |
| Total Professional Replacement | $97 - $235 per sensor |
Pro Tip: Before ordering, have the system scanned with an ABS-capable code reader. The code will tell you exactly which wheel sensor has failed (e.g., 'Right Front Wheel Speed Sensor Circuit Malfunction'), so you only replace the part that's broken.
Frequently Asked Questions
Can I replace just one ABS sensor?
Yes, you only need to replace the sensor that has failed. The ABS control module will store a trouble code that identifies the specific sensor that needs replacement.
Is it hard to replace an ABS sensor on a 1997-2002 Mountaineer?
No, it's a relatively easy job for a DIYer with basic tools. The sensor is typically held in by a single bolt and has one electrical connector. The main challenge can be the bolt being rusted in place. You will need to remove the wheel to access it.
What causes the ABS sensor to fail?
The most common causes are exposure to the elements, physical damage from road debris, or breaks in the wiring harness. Sometimes, a failing wheel bearing can also damage the sensor or the tone ring it reads.
Will a bad ABS sensor make my brakes fail?
No, your normal brakes will still work. However, the anti-lock braking function will be disabled, which means your wheels can lock up during a hard stop, increasing stopping distance and reducing steering control.
Technical Specifications
OEM Part Numbers: F77Z2C204AB F77Z2C204AD YL2Z2C204AB

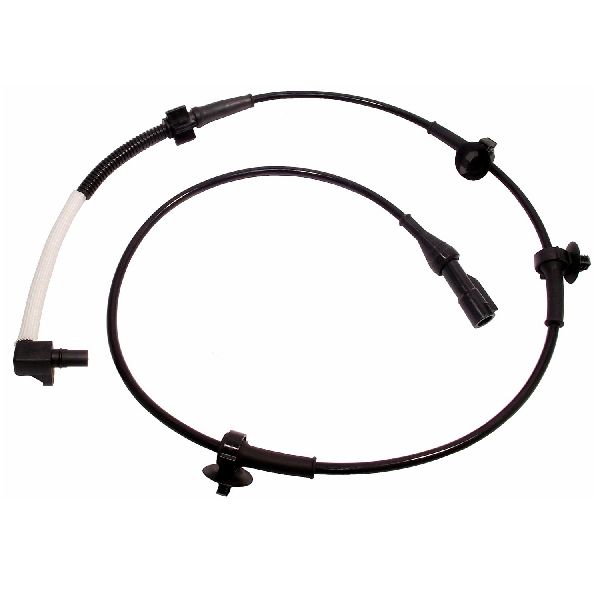

The system uses four individual sensors, one at each wheel. The sensor is a magnetic type that reads a toothed tone ring on the axle or wheel hub assembly.
