Your Guide to the 1997-2003 Acura CL Engine Cooling Fan Switch
Stop your Acura CL from overheating by learning about this simple but vital cooling system part.
- Overheating at idle is the #1 symptom of a bad fan switch.
- The most common fan switch is located on the thermostat housing and is easy to replace.
- Quality aftermarket brands offer a reliable repair for a much lower cost than OEM parts.
- Ignoring an overheating engine can lead to catastrophic engine failure.
Is Your Acura CL Overheating at Stoplights?
If you notice your 1997-2003 Acura CL's temperature gauge climbing in traffic but returning to normal on the highway, a faulty engine cooling fan switch could be the culprit. This part is essential for keeping your engine cool when there's no air flowing through the radiator from driving at speed. When it fails, your engine is at risk of overheating, which can lead to serious and expensive damage.
Symptoms of a Failing Cooling Fan Switch
A bad fan switch can cause several noticeable problems. Pay attention to these signs:
- Engine Overheating at Idle: The most common symptom is the engine temperature rising when the car is stationary or moving slowly.
- Cooling Fan Never Turns On: If you let the car run while parked and the temperature rises, but you never hear the cooling fan kick on, the switch is a likely suspect.
- Cooling Fan Won't Turn Off: Sometimes the switch can fail in the 'on' position, causing the fan to run constantly. This can drain your battery.
- Poor A/C Performance: The radiator fan also helps your air conditioning system. If the fan isn't working, your A/C might blow warm air when you're stopped.
Critical Warning: Do Not Ignore Overheating
Driving your Acura CL while it is overheating can cause severe engine damage, including a warped cylinder head or a blown head gasket. If the temperature gauge enters the red zone, pull over safely and turn off the engine as soon as possible.
Choosing the Right Aftermarket Fan Switch
For a part like a cooling fan switch on the Acura CL, both OEM and aftermarket options are available. OEM parts from Acura are a guaranteed fit but come at a higher price. High-quality aftermarket parts can offer the same performance for a fraction of the cost, making them a great value for many owners.
Here's a look at the available brands:
- Premium Aftermarket (Beck Arnley, Standard Ignition): Brands like Beck Arnley and Standard Motor Products often engineer parts to meet or exceed original specifications. They are trusted choices for reliability and fit, providing a good balance of quality and price.
- Standard Aftermarket (Four Seasons, Facet, Walker Products): These brands provide a cost-effective solution for your repair. Four Seasons is a well-known name in vehicle heating and cooling systems and is generally considered a reliable choice.
- Value-Priced (Global Parts): These offer the most budget-friendly option to get your cooling system working correctly again.
Pro Tip: Check the Location
Some Acura CL models have more than one sensor that controls the fans. The most common one to fail is located on the thermostat housing. It is relatively easy to access and replace. Another switch may be located near the water pump, which is much more difficult to service. Always confirm the location of the faulty switch before ordering a replacement.
Cost of Replacing the Engine Cooling Fan Switch
The cost to replace the fan switch is reasonable, especially if you do it yourself. The part itself is affordable, and the job doesn't require many specialized tools.
| Cost Category | Estimated Price Range |
|---|---|
| New Aftermarket Part | $34 - $96 |
| New OEM Part | $85 - $120 |
| Shop Labor Cost | $70 - $130 |
| Total Professional Replacement (Aftermarket Part) | $104 - $226 |
Frequently Asked Questions
Where is the cooling fan switch located on my Acura CL?
The primary engine cooling fan switch is typically screwed into the thermostat housing, which is where the main radiator hose connects to the engine. On some V6 models, there may be multiple switches, so it's important to diagnose which one has failed.
Can I replace the fan switch myself?
Yes, this is a DIY-friendly job for the switch located on the thermostat housing. It requires basic hand tools to unscrew the old sensor and install the new one. Be prepared for some coolant to spill out when you remove the old switch. It's a good idea to have the new switch ready to install quickly to minimize coolant loss.
Do I need to drain all the coolant to replace it?
You do not need to drain all the coolant. However, the coolant level is above the switch's location, so some coolant will leak out when you remove it. Working quickly or partially draining the radiator can reduce the mess. After replacement, you will need to top off the coolant and bleed any air from the system.
Are there any recalls for the cooling fan switch on the 1997-2003 Acura CL?
No, there are no specific recalls or technical service bulletins (TSBs) from Acura or the NHTSA for a widespread failure of the engine cooling fan switch on the 1997-2003 Acura CL. Failures that occur are due to normal aging of the part.

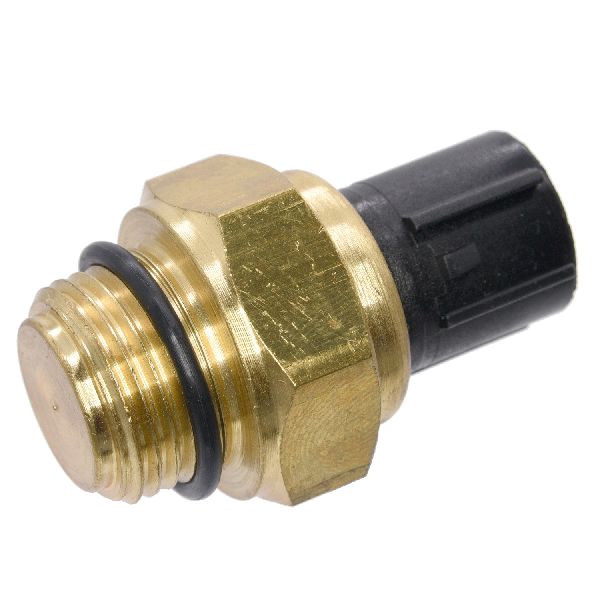

Technical Specifications
OEM Part Numbers: 37760-P00-003 37760-P00-004
Location: Typically mounted on the thermostat housing. There may be multiple switches on V6 models.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
