Ford E-150 Econoline Starter Replacement Guide (1997-2003)
If your 1997-2003 Ford E-150 Econoline won't start, this guide will help you diagnose the starter and choose the right replacement part.
- A single loud click with no crank is the classic symptom of a bad starter on these vans.
- Always check the battery and ground connections first; bad grounds are a known issue and mimic starter failure.
- Replacement is a feasible DIY job, but you will need long extensions and a swivel socket to reach the difficult top bolt.
- For this van's age, a quality new aftermarket starter is a reliable and cost-effective choice.
Is Your E-150 Starter Failing?
A bad starter on your 1997-2003 Ford E-150 Econoline will usually give you some clear warning signs before it leaves you stranded. Because these vans are often used for work, it's critical to recognize these symptoms early. The most common sign is a single, loud "CLICK" from the engine area when you turn the key, but the engine doesn't crank. Other times, you might hear a rapid clicking sound, a slow, sluggish crank that sounds like the battery is weak, or a harsh grinding noise. In some cases, you'll turn the key and get nothing at all, even though the dashboard lights and radio work fine.
🎬 Watch: Troubleshooting a no-start, no-crank condition on your E-150.Pro Tip: Check Your Grounds and Battery First!
Before you spend money on a new starter, check the simple things. A weak or dead battery can cause a rapid clicking sound or a slow crank. Also, these E-150 vans are known for the main ground strap between the frame and body corroding or breaking. 🎬 See how a broken braided wire causes common Ford starter failures. A bad ground can cause the exact same no-start symptoms as a failed starter. Always check that your battery is fully charged and that all battery cable connections and ground straps are clean, tight, and free of corrosion.
Choosing the Right Aftermarket Starter
For a vehicle of this age, a new aftermarket starter is a common and practical choice. The original Motorcraft starters are excellent, but a quality new aftermarket unit can offer great value. Remanufactured starters are also an option, but quality can vary. Here's a breakdown of the brands available:

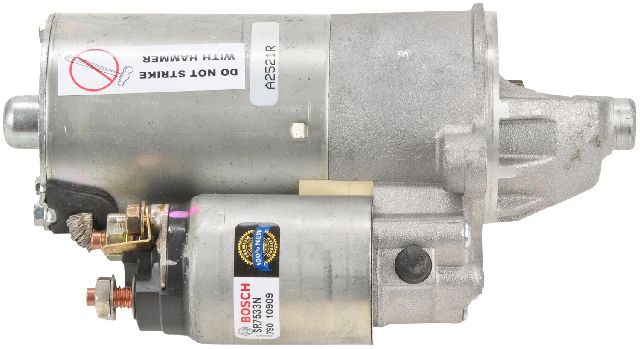

- Premium Brands (Bosch, Denso): These companies are often original equipment manufacturers for many automakers and are known for their high quality and reliability. If you want the closest thing to OEM quality and peace of mind, these are excellent choices, though they often come with a higher price tag.

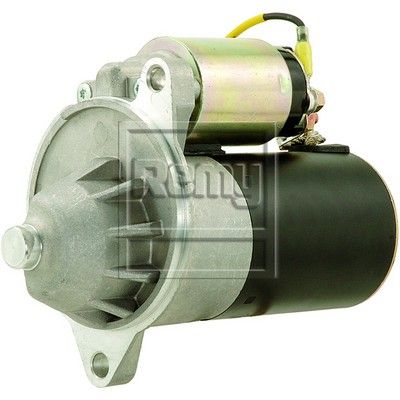

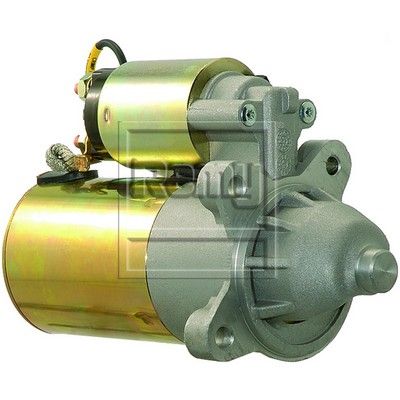

- Standard Brands (Remy, WAI Global): These brands offer a balance of price and quality. User experiences can be mixed. Some owners report new Remy starters having excellent torque and performance. However, others have experienced premature failures with remanufactured units from various brands, including Remy and WAI Global. A new starter from these brands is generally a safer bet than a remanufactured one.

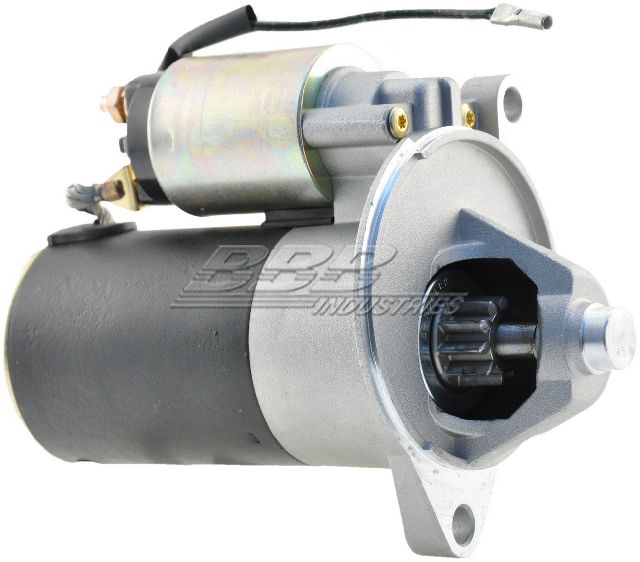

- Remanufacturers (BBB Industries): BBB Industries is a large company that remanufactures starters for many store brands. They follow processes to meet OE standards, replacing common wear items. While often the most affordable option, the quality can sometimes be inconsistent compared to a new part.
For the E-150, especially models with V8 engines that can suffer from heat-related starting issues ("heat soak"), a high-torque gear reduction starter can be a worthwhile upgrade. These are often smaller, more powerful, and more efficient than the original design.
Starter Replacement Cost for 1997-2003 Ford E-150
The cost of replacing your starter can vary significantly based on the parts you choose and whether you do the work yourself. Shop labor rates can also differ by location.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $85 - $265 |
| Shop Labor | $100 - $250 |
| Total (DIY) | $85 - $265 |
| Total (Installed at Shop) | $185 - $515 |
Frequently Asked Questions (FAQ)
How hard is it to replace the starter on a 1997-2003 E-150?
The job is considered DIY-friendly for someone with moderate mechanical skill. The starter is held on by three bolts. The main challenge is accessing the top bolt, which is in a very tight space. You will need a good socket set with long extensions and a universal/swivel joint to reach it. You must always disconnect the negative battery terminal before starting.
Where is the starter located on the Ford E-150?
The starter is located on the passenger side of the vehicle, bolted to the transmission bell housing where the engine and transmission meet.
What tools are needed to replace the starter?
You will need a socket set (10mm, 13mm are common sizes for this job), a ratchet, several long extensions (6-inch or more), and a swivel socket. You may also need a wire brush to clean electrical connections and jack stands to safely lift and support the vehicle.
My van just clicks once. Is it the starter or the solenoid?
On these Ford starters, the solenoid is typically mounted directly on top of the starter motor itself. A single, loud click usually means the solenoid is engaging but the starter motor isn't turning. For this reason, the starter and solenoid are replaced as a single assembly.
🎬 Watch this DIY guide to testing and replacing your starter motor.Are there any recalls on the starter for this van?
No, there are no specific recalls or technical service bulletins (TSBs) for the starter motor on the 1997-2003 Ford E-150. However, related issues like a bad ground connection can cause identical symptoms.
Helpful Videos
Technical Specifications
The starter is a 12-volt, permanent magnet gear reduction (PMGR) type for most applications in this year range. It is mounted to the transmission bell housing with three bolts. The electrical connections consist of a main power cable from the battery and a smaller signal wire from the ignition circuit.
