Ford Expedition (1997-2003) HVAC Heater Hose: A Complete Replacement Guide
Leaking coolant or getting no heat in your Expedition? Your HVAC heater hose is the likely culprit.
- You must verify if your Expedition has rear auxiliary heat before ordering a new hose, as the parts are different.
- A coolant leak from the heater hose can cause an engine misfire by dripping on the passenger-side ignition coils.
- Accessing the hose connections at the firewall is difficult; be prepared for a tight workspace.
- It is highly recommended to replace the entire hose assembly, not just patch a single leak, as other sections are likely degraded.
Symptoms of a Failing Heater Hose
When a heater hose fails on your Expedition, the signs are usually obvious. Because the hoses are under constant pressure and exposed to high temperatures, they eventually wear out. Here’s what to look for:
- Coolant Leaks: The most common symptom is a coolant leak. You may see puddles of green, orange, or pink fluid under the passenger side of your truck, especially near the firewall (the wall between the engine and the cabin).
- Sweet Smell: Leaking coolant has a distinct sweet, syrupy smell. You might notice this smell inside or outside the vehicle.
- No Cabin Heat: If a hose is severely clogged or has created a large air pocket in the system, you may get little to no heat from your vents, even when the engine is warm. 🎬 Watch: Troubleshooting a clogged heater core and lack of heat.
- Engine Overheating: A significant leak will cause you to lose coolant, leading to engine overheating. This is a serious condition that can cause major engine damage.
- Damp Passenger Floorboard: In some cases, a leak at the firewall connection can allow coolant to seep inside, creating a damp or wet carpet on the passenger side.
- Warning: A coolant leak from the heater hoses on the 5.4L or 4.6L V8 engines can drip directly onto the passenger-side ignition coils (COPs). This can cause the coil to short out, leading to a rough running engine, misfires, and a flashing check engine light.
Choosing the Right Aftermarket Heater Hose
For a vehicle from the 1997-2003 generation, a quality aftermarket heater hose assembly is an excellent and cost-effective choice. The original Ford hoses often fail at their plastic quick-connect fittings or integrated T-connectors, which become brittle and crack over time. Aftermarket brands often use materials that meet or exceed original specifications.
Crucial First Step: Check for Rear Heat
Before you order, you MUST determine if your Expedition has the auxiliary rear HVAC system. Hoses for trucks with rear heat are different from those without. Look for a second set of climate controls for passengers in the back, or check for heater hoses running along the frame rail on the passenger side. Ordering the wrong part is the most common mistake.
Brand Quality: Continental, Dayco, and Gates
Continental, Dayco, and Gates are all well-respected manufacturers of aftermarket hoses. There is no single “best” brand among the three, as all produce reliable products. Forum discussions among mechanics and owners show that all three are widely used with success. The most important factor is getting a molded hose assembly that is an exact match for your vehicle's configuration (with or without rear heat) to ensure proper fitment without kinking.
- Good: A basic replacement hose from a known brand like Dayco. These are affordable and reliable for daily use.
- Better: A molded assembly from Gates or Continental. These often have a reputation for excellent fit and finish, closely matching the original part's dimensions.
- Best: Some owners choose to upgrade the failure-prone plastic 'Y' connectors with metal versions for added durability, though this requires cutting and clamping the hoses rather than using a direct-fit assembly. 🎬 Watch: How to upgrade failure-prone plastic connectors to aluminum.
Cost of Replacing an Expedition Heater Hose
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Heater Hose Assembly | $12 - $155 |
| New OEM (Motorcraft) Heater Hose Assembly | $75 - $250 |
| Shop Labor Cost | $150 - $350 |
| Total Professional Replacement (Aftermarket Part) | $162 - $505 |
Costs are estimates and can vary based on your location, specific part needed, and the repair shop's labor rates.
Frequently Asked Questions
Can I perform this replacement myself?

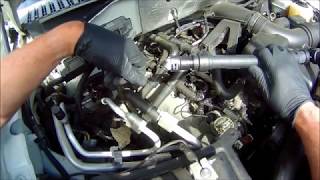

This is a challenging DIY job for a beginner. While the hose connections themselves are simple, access is very tight, especially at the firewall behind the engine. It often requires patience and removing other components to get enough room to work. 🎬 See this walkthrough for replacing hoses without special tools. The old plastic connectors can be brittle and break during removal, complicating the job.
Why is my check engine light flashing after the leak started?
On the V8 engines in these Expeditions, the heater hoses are routed directly above the passenger-side cylinders. A coolant leak can drip onto the ignition coil for cylinder #4, causing it to fail. This creates an engine misfire, which triggers the flashing check engine light. The coil will likely need to be replaced along with the heater hose.
Can I just patch the hose or replace the broken plastic 'T' connector?
While it's possible to patch a hose or splice in a new connector as a temporary fix, it is not recommended for a permanent repair. If one part of the hose assembly has failed due to age, the rest is likely weak as well. Replacing the entire molded assembly is the most reliable solution to prevent future leaks.
What type of coolant should I use to refill the system?
For the 1997-2003 Expedition, you should use a conventional green or a universal yellow/gold IAT (Inorganic Acid Technology) coolant that meets Ford's specifications. After the repair, the system must be properly filled and bled of all air to prevent overheating.
Helpful Videos
Technical Specifications
OEM Part Numbers: OEM part numbers vary significantly based on year, engine, and the presence of rear auxiliary heat. Always verify the part number with your vehicle's VIN.
Molded rubber hose assembly, often including plastic quick-connect fittings and/or T-connectors. Designed for either 4.6L or 5.4L V8 engines.
