Chevrolet S10 Starter Replacement Guide (1997-2004)
Don't get stranded by a bad starter—here's what you need to know for your 1997-2004 S10.
- Always test the battery and check cable connections first, as symptoms of a bad starter and a weak battery are very similar.
- Accessing the top mounting bolt is the hardest part of the job; using long extensions or slightly jacking up the transmission can help.
- If your original starter used shims for alignment, you must transfer them to the new starter to prevent damage.
- A grinding noise while the engine is running could be the starter failing to disengage, which requires immediate attention.
Is Your S10 Starter Failing?
A starter motor rarely fails without giving some warning signs. While these symptoms are strong indicators of a starter issue, they can also be caused by a weak battery or loose cables. Always test your battery and clean the terminal connections before deciding to replace the starter.
- Single, Loud Click: This is the most common sign. You turn the key, hear one click from the engine bay, but the engine doesn't crank. This usually means the starter's solenoid is working, but the motor itself has failed.
- No Sound at All: If you turn the key and get complete silence, the starter could be completely dead. This could also point to a bad ignition switch or starter relay, so further diagnosis is needed. 🎬 See a demonstration of common S10 starter failure symptoms.
- Slow Cranking: The engine turns over very slowly, as if the battery is dying. If you've confirmed the battery is fully charged, the starter motor is likely drawing too much power due to internal wear.
- Grinding or Whirring Noise: A loud grinding sound during startup can mean the starter gear is damaged or not aligning correctly with the flywheel. A high-pitched whirring sound suggests the starter motor is spinning, but its gear is not engaging the engine.
Known Issue: Intermittent Grinding While Driving
A Technical Service Bulletin (TSB) has noted that some starters may fail to fully disengage after the engine starts. This can cause an intermittent grinding or growling noise while the engine is running. If you hear this, the starter should be replaced to prevent damage to the flywheel.
🎬 Learn how to fix a grinding starter and check shims.Choosing the Right Aftermarket Starter
For a workhorse truck like the S10, reliability is key. While a new OEM starter from the dealer is an option, high-quality aftermarket parts offer a great balance of performance and value. The brands available fall into a few tiers.
- Tier 1 (OEM Quality): Bosch, Denso. These companies are often the original equipment manufacturers for many car brands. Their aftermarket parts are built to the same high standards, offering excellent reliability and fit. They are a top choice for a long-lasting repair.

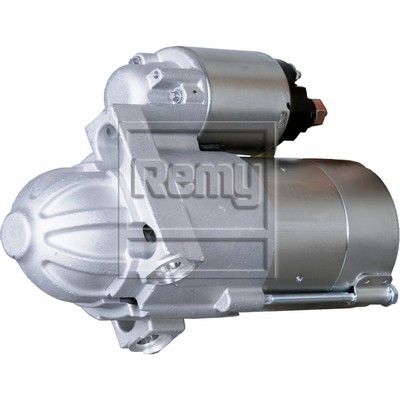

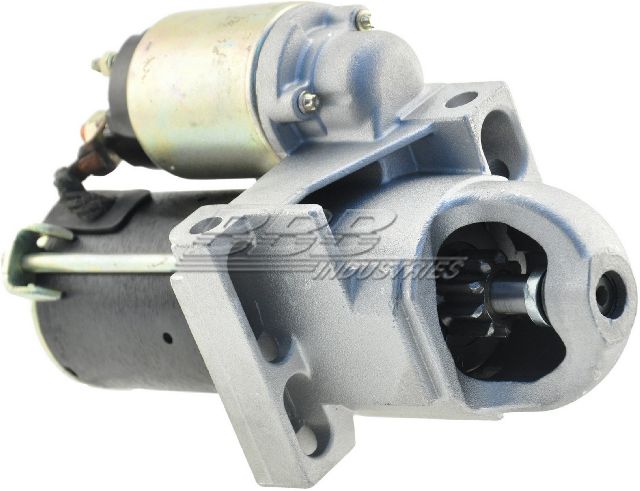

- Tier 2 (Reputable Aftermarket): Remy, BBB Industries. Remy is a long-established brand in starters and alternators. BBB Industries is a major remanufacturer that supplies many well-known parts stores. These brands offer a solid balance of quality and price, often with good warranties.

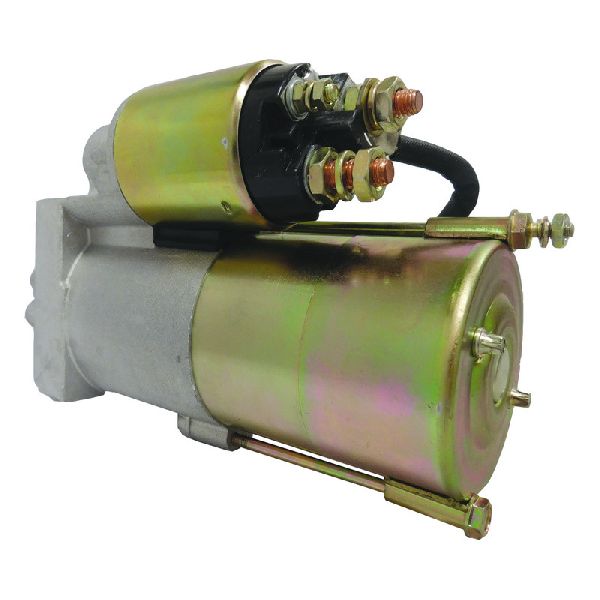

- Tier 3 (Value-Oriented): WAI Global. WAI offers new starters at a very competitive price point. While many users report good experiences, some online reviews mention inconsistent quality and a higher chance of premature failure. This can be a budget-friendly option, but may be a gamble on longevity.
New vs. Remanufactured
Most aftermarket starters are available as either "new" or "remanufactured." A new starter is made with all-new components. A remanufactured starter uses the original core (housing) but is rebuilt with new internal wear items like brushes, bearings, and solenoids. A quality remanufactured starter from a reputable brand like Bosch or Remy can be just as reliable as a new one and is a common, cost-effective repair option.
Chevrolet S10 Starter Replacement Cost
The total cost depends on whether you do the job yourself or take it to a shop. The provided aftermarket price range is $103.70 - $255.53.
| Part or Service | Estimated Cost |
|---|---|
| Shop Labor | $167 - $246 |
| New Aftermarket Starter | $104 - $256 |
| Remanufactured Starter | $110 - $230 |
| New OEM Starter (Dealer) | $250 - $450+ |
Frequently Asked Questions (FAQ)
Is replacing the S10 starter a difficult job?
For an experienced DIYer, it is a manageable job that takes about 1-2 hours. 🎬 Watch this step-by-step walkthrough for replacing your S10 starter. The primary challenge is accessing the starter's mounting bolts, especially the top one. You will need to safely raise the truck on jack stands and remove the driver's side front wheel for better access.
Are there any tricks to make the replacement easier?
Yes. Many mechanics find that using a long extension and a swivel socket helps reach the top bolt. On some models, particularly 4x4s, you may need to slightly jack up the back of the transmission to tilt the engine, creating more clearance to remove the starter.
Do I need shims for my new starter?
Maybe. Some S10 starters require thin metal shims between the starter and the engine block for proper gear alignment. If your old starter has shims, you MUST save them and install them with the new starter in the exact same way. Failure to do so can cause grinding noises and damage to both the starter and the flywheel.
Is it the starter or the battery?
An easy way to check is to turn on your headlights and try to start the truck. If the headlights dim significantly or go out, your battery is likely weak. If the headlights stay bright but the engine won't crank, the problem is more likely the starter or its connections.
Are the starters for the 2.2L 4-cylinder and 4.3L V6 engines the same?
No, they typically use different part numbers. The mounting and electrical connections are similar, but the motors themselves can differ. It is critical to order the correct starter for your specific engine to ensure proper fit and function.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10455070 10465519 10465459
Varies by engine (2.2L I4 or 4.3L V6). Most are 12-volt, Permanent Magnet Gear Reduction (PMGR) type starters. Ensure the part is a direct fit for your specific engine and transmission combination.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
