Dodge Dakota Power Steering Pressure Switch (1997-2004): A Complete Guide
Understanding and fixing the common P0551 code, leaks, and stalling issues in your truck.
- A primary symptom of failure is a fluid leak through the electrical connector, not just the threads.
- This leak is critical because fluid can travel up the wiring harness and damage the main engine computer (PCM).
- When replacing, always use electrical contact cleaner to clean out the harness plug, even if it looks dry.
- The Check Engine Light code P0551 almost always points to this switch being the problem.
Is Your Dakota Stalling on Turns? It Could Be This Switch.
If you own a 1997-2004 Dodge Dakota, you might run into a common problem: the engine stumbles or stalls when you're turning slowly. You might also see a puddle of power steering fluid under your truck or have a Check Engine Light that won't go away. Often, the culprit is a small, inexpensive part: the power steering pressure switch.
CRITICAL: Check for Leaks at the Connector!
The most common failure for this switch is an internal seal leak. Power steering fluid is forced through the body of the sensor and into the electrical connector. This is more than just a leak. The fluid can travel up the inside of the wires in the harness, a process called wicking. In some cases, this fluid can travel all the way to the Powertrain Control Module (PCM), your truck's main computer, causing contamination and potential failure of the PCM itself. 🎬 Watch: How fluid wicking can damage your truck's computer. When you inspect or replace your switch, always check the wiring harness connector for any signs of oil. If it's wet, clean it thoroughly with an electrical contact cleaner before installing the new part.
Choosing the Right Aftermarket Switch
Since some original Mopar switches are being discontinued, the aftermarket is your best bet. Quality here is important, as a cheap switch can fail quickly and leave you with the same problem. Here’s a breakdown of the available brands:
- Premium Aftermarket (Recommended): Brands like Standard Ignition (SMP) are often considered top-tier in the aftermarket. They focus on quality control and testing to ensure their parts meet or exceed original specifications. For a critical sensor that can leak, spending a little more for a quality part can save you headaches later.
- OEM-Alternative Brands: Crown Automotive specializes in parts for Jeep and Mopar vehicles like your Dakota. They can be a good source for hard-to-find parts and often provide a solid value. While they are a good option, some users in forums report occasional fitment or quality issues on more complex parts, so inspect the part carefully before installation.
- Value Brands: This category includes Replacement, Rostra Powertrain, and True Tech. These brands offer a cost-effective solution and can be a good choice if you're on a tight budget. However, be aware that one Dakota owner on Reddit reported having to replace a value-branded switch multiple times due to repeated failures. If you choose a value brand, inspect it for quality and check for leaks often after installation.
Cost Comparison
Replacing the power steering pressure switch is an inexpensive repair, especially if you do it yourself. The job is simple and requires only basic hand tools.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $32.68 - $72.96 |
| New OEM (Mopar) | $55.00 - $85.00 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
What does the Check Engine Light code P0551 mean?
P0551 is the specific diagnostic trouble code for a "Power Steering Pressure Sensor/Switch Circuit Range/Performance" problem. This means the truck's computer is seeing a signal from the switch that is illogical or out of the expected range. It's the most common code associated with a failing switch on these Dakotas.
Is replacing the power steering pressure switch a hard job for a DIYer?

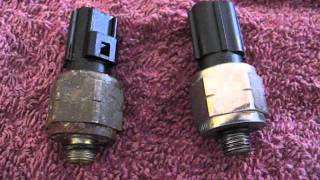

No, this is a great job for a beginner. The switch is located on the high-pressure power steering line, usually near the power steering fluid reservoir and battery. The job typically requires only a couple of wrenches (one to hold the line, one to turn the switch). You can complete the replacement in under 30 minutes. 🎬 See this step-by-step replacement walkthrough for 2000-2004 models. Be prepared for a small amount of fluid to spill when you remove the old switch.
Why is my switch leaking from the plastic electrical connector?
This is the classic sign of an internal failure. The seal inside the switch has broken, allowing pressurized fluid to push past the electronics and out the connector. The part is bad and must be replaced immediately to prevent damage to the wiring harness and potentially the PCM.
Do I need to use a special tool to replace it?
No special tools are needed. You will need a wrench for the switch itself (often 7/8" or 22mm) and another wrench to hold the fitting on the power steering line steady (often 11/16" or 18mm). Holding the line fitting steady is important to avoid twisting and damaging the power steering line.
🎬 Watch: A quick guide to fixing the P0551 code.Helpful Videos
Technical Specifications
OEM Part Numbers: 56027906AC 56027906AB 56041335AC 56041335AB
The switch is located on the high-pressure power steering line. It uses a screw-in design with an O-ring to seal. The electrical connector is a single, round plug. Always verify the part number with your vehicle's VIN for an exact match.
