Ford Expedition 1997-2004 EGR Valve: A Complete Guide
Everything you need to know about replacing the EGR valve on your first-generation Ford Expedition.
- A P0401 code is most often caused by clogged EGR ports in the intake manifold, not just a bad valve.
- Always inspect the DPFE sensor and its vacuum hoses for cracks, as they are common failure points.
- Motorcraft is the OEM brand and ensures a perfect fit and function, which is important for emissions parts.
- The replacement is DIY-friendly, but cleaning the intake ports is a critical step that should not be skipped.
Is Your Expedition's EGR Valve Failing?
A bad EGR valve on your 1997-2004 Expedition can cause several noticeable problems. Because the valve controls the flow of exhaust gases, it can get stuck open or closed from carbon buildup. If it's stuck open, you might experience a rough, shaky idle or even stalling at stop lights. If it's stuck closed, you might hear a pinging or knocking sound from the engine, especially when accelerating. In either case, a faulty EGR valve will almost always turn on your Check Engine Light.
A Common Problem: Clogged EGR Ports
A very common issue on these Ford V8 engines is not the EGR valve itself, but the small ports in the intake manifold getting clogged with carbon. This blockage prevents exhaust gas from flowing, which triggers an "insufficient flow" code (P0401). Even with a brand new EGR valve, you will still have the same problem if these ports are not cleaned out during the repair.
🎬 See how to perform a simple test for clogged EGR ports.Choosing the Right Aftermarket EGR Valve
When shopping for a replacement, you have a few options. The choice between a budget part and an OEM-equivalent part often comes down to quality and peace of mind.
- Motorcraft: This is Ford's own brand and the original equipment manufacturer (OEM). A Motorcraft valve is a direct-fit replacement that guarantees the same performance and calibration as the part your Expedition came with from the factory. For critical emissions components, sticking with the OEM design is often the safest bet to avoid further issues.
- Replacement (Aftermarket Brands): These are value-oriented brands that offer a more affordable alternative. While many aftermarket parts work fine, some may have slight differences in calibration or materials that could cause issues with the Expedition's sensitive emissions monitoring system. If choosing an aftermarket brand, select one with a good warranty and positive reviews from other Ford owners.
Pro Tip: Check the DPFE Sensor and Vacuum Lines
The EGR system on your Expedition relies on other parts to work correctly. The Differential Pressure Feedback (DPFE) sensor and its rubber hoses are frequent failure points. These hoses can become brittle and crack, creating vacuum leaks that cause EGR codes. Always inspect these components when replacing the EGR valve.
🎬 Watch this video to learn how to replace the DPFE sensor.EGR Valve Replacement Cost (1997-2004 Ford Expedition)
The cost can vary depending on the brand you choose and whether you do the work yourself. The job is straightforward for a DIY mechanic with basic tools.
| Item | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $90 - $140 |
| New Aftermarket Part | $60 - $105 |
| Shop Labor | $80 - $125 |
| Total Professional Replacement | $204 - $288 |
Frequently Asked Questions
Where is the EGR valve located on my 1997-2004 Expedition?

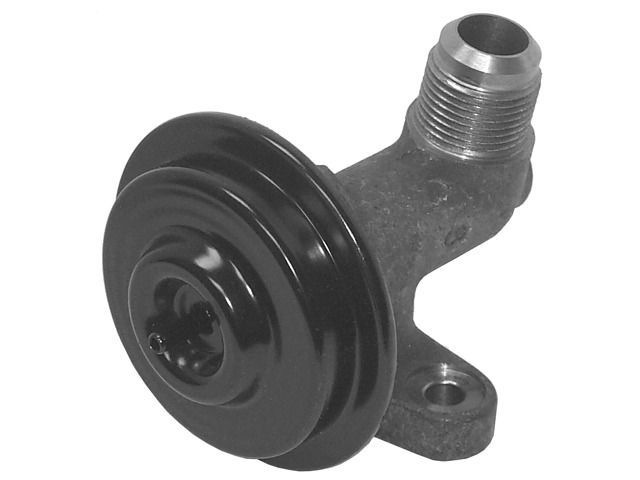

The EGR valve is located on the driver's side of the engine, near the back by the firewall. It's a small, round, metal part bolted to the side of the throttle body elbow, with a metal tube running down from it to the exhaust manifold.
Can I just clean my old EGR valve?
While you can sometimes clean carbon deposits from an EGR valve, it's often a temporary fix. Ford issued a Technical Service Bulletin (TSB) for later models advising against cleaning and recommending full replacement to ensure proper function. Given the low cost of a new part and the labor involved, replacing it is usually the better option. More importantly, you must clean the clogged EGR ports in the intake manifold itself.
What is a P0401 code?
P0401 is the most common trouble code associated with EGR issues on these trucks. It means "EGR Flow Insufficient Detected." This code is triggered when the engine's computer tells the EGR valve to open, but the DPFE sensor doesn't detect a change in pressure. This is usually caused by clogged EGR passages in the intake manifold, but can also be caused by a bad EGR valve, a faulty DPFE sensor, or cracked vacuum lines.
Is replacing the EGR valve a difficult job?
For a DIY mechanic, this is a relatively easy job. It involves removing two bolts holding the valve, a large nut on the exhaust tube, and a vacuum line. The hardest part is often accessing the bolts near the firewall and breaking the exhaust tube nut loose. 🎬 Watch this step-by-step guide to replacing your Expedition's EGR valve. You should also remove the throttle body to clean the EGR ports inside the intake manifold.
Helpful Videos
Technical Specifications
OEM Part Numbers: XL3Z-9D475-CA F75Z-9D475-C4A XL3Z-9D475-BB CX-1721
The EGR system on the 1997-2004 Ford Expedition is a vacuum-actuated valve controlled by an electronic solenoid. It uses a Differential Pressure Feedback (DPFE) sensor to monitor exhaust gas flow. The valve itself is typically made of steel and mounts to the throttle body elbow.
