Ford Expedition (1997-2004) Fuel Tank Pressure Sensor: A Comprehensive Guide
Everything you need to know about replacing the Fuel Tank Pressure Sensor on your first-generation Ford Expedition.
- A bad Fuel Tank Pressure sensor will almost always turn on the Check Engine Light with codes P0452 or P0453.
- The sensor is located on top of the fuel tank, which must be lowered for access.
- Before replacing the sensor, always check that the gas cap is tight and in good condition, as a bad seal can cause similar error codes.
- Quality aftermarket brands like Standard Ignition are reliable alternatives to the more expensive Motorcraft OEM part for this repair.
Understanding the Fuel Tank Pressure Sensor in Your Expedition
The Fuel Tank Pressure (FTP) sensor is a small but important part of your Expedition's emissions system. It constantly measures the pressure inside the fuel tank. This information is sent to your truck's computer. The computer uses this data to check for leaks in the fuel system. A tiny leak, even from a gas cap that isn't tightened properly, can be detected by this system. When the sensor fails, it can't provide accurate information, leading to several noticeable problems.
Symptoms of a Failing Fuel Tank Pressure Sensor
When the FTP sensor goes bad, your Expedition will let you know. Here are the most common signs:
- Check Engine Light: This is the most common symptom. A failing sensor will trigger the computer to light up the check engine light on your dashboard. Specific trouble codes like P0452 (low voltage) or P0453 (high voltage) point directly to a problem with the FTP sensor.
- Fuel Odor: You might smell gasoline around your vehicle. A bad sensor can't properly monitor the system, which may allow fuel vapors to escape.
- Difficulty Refueling: The gas pump nozzle might click off repeatedly when you're trying to fill the tank. This happens because the system isn't venting pressure correctly due to the bad sensor reading.
- Reduced Fuel Economy: If the sensor provides incorrect data, the engine's computer might adjust the fuel mixture improperly, leading to worse gas mileage over time.
- Failed Emissions Test: Since the FTP sensor is a critical emissions component, a faulty one will likely cause your Expedition to fail a state emissions inspection.
Aftermarket Brand Quality for 1997-2004 Expedition
| Brand | Tier | Our Assessment |
|---|---|---|
| Motorcraft | OEM / Premium | As the original equipment manufacturer for Ford, Motorcraft offers the highest assurance of fit, quality, and reliability. If you want a part that matches what the factory installed, this is your best choice. It's the benchmark for performance and durability. |
| Standard Ignition (SMP) | Premium Aftermarket | Standard Motor Products is a well-respected brand known for producing high-quality parts that meet or exceed OE specifications. They have broad market coverage and use precision manufacturing processes. A reliable alternative to OEM. |
| Global Parts (gpd) | Standard Aftermarket | Global Parts Distributors offers direct-fit replacement sensors designed to meet OE form and function. They are a cost-effective option and are durability tested. Customer reviews are generally positive for fitment and function. |
| Replacement | Value / Economy | The 'Replacement' brand offers a budget-friendly option. These parts are designed as a direct fit to replace the original equipment number, providing a functional solution at a lower price point. Quality can be variable, but it serves as a basic, cost-effective repair option. |
Known Issues, Recalls, and TSBs
Searches for recalls and Technical Service Bulletins (TSBs) specifically for the 1997-2004 Ford Expedition fuel tank pressure sensor did not yield any results. However, problems with the EVAP system are common. Often, a check engine light for the EVAP system is first addressed by checking or replacing the gas cap, as a poor seal is a frequent cause of pressure-related codes. If that doesn't solve the issue, the FTP sensor itself is a likely culprit.
Common Ordering Mistake
For the 1997-2004 Expedition, the Fuel Tank Pressure sensor is located on top of the fuel tank and is often part of the fuel pump assembly. Do not confuse it with the Fuel Rail Pressure Sensor, which is located on the engine's fuel rail and measures liquid fuel pressure. They are different parts with different functions. Always confirm the part is for the fuel tank/EVAP system.
Frequently Asked Questions
Where is the fuel tank pressure sensor located on a 1997-2004 Expedition?
The sensor is mounted on the top of the fuel tank. On many of these models, it is integrated into the fuel pump assembly. To access it, you will need to lower the fuel tank.
Can I replace this sensor myself?

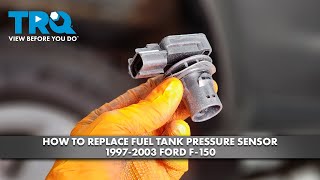

Yes, this is a DIY-feasible job for someone with mechanical experience. The main challenge is safely lowering the fuel tank, which can be heavy even when near-empty. Using a transmission jack can make this process much safer and easier. 🎬 See how to replace the sensor on a similar Ford model. Some owners have reported being able to access the sensor by reaching between the tank and the vehicle body, but this is difficult and not always possible.
Should I buy an OEM Motorcraft sensor or is aftermarket okay?
Motorcraft is the guaranteed OE fit and quality. However, premium aftermarket brands like Standard Ignition (SMP) offer a very reliable alternative that often meets or exceeds original specifications. Brands like Global Parts provide a good balance of quality and cost. For this specific part, a quality aftermarket sensor is a perfectly acceptable choice for most owners.
What do the trouble codes P0452 and P0453 mean?
These are the two most common codes for a failing FTP sensor. P0452 means the sensor's voltage reading is too low, indicating a potential short in the circuit or a sensor failure. P0453 means the voltage is too high, pointing to an open circuit or a faulty sensor. 🎬 Learn more about diagnosing and fixing the P0453 trouble code. Both codes point to an electrical failure within the sensor or its circuit, not necessarily a fuel vapor leak.
Helpful Videos
Technical Specifications
OEM Part Numbers: XS4Z9C052AA
3-pin connector, mounts on top of fuel tank assembly.
