Ignition Lock Cylinder Guide for 1997-2004 Ford Expedition
Having trouble turning your key or starting your truck? Your ignition lock cylinder is a likely culprit.
- The most common failure symptom is the key becoming difficult or impossible to turn.
- Replacement is simple, but you must address the PATS key programming for the truck to run.
- You can either program the new keys, or swap the tumblers from the old cylinder into the new one to keep your original keys.
- Check for a binding steering lock or shifter issue before condemning the cylinder.
Is Your Expedition's Ignition Lock Cylinder Failing?
A bad ignition lock cylinder on a 1997-2004 Ford Expedition usually gives clear warning signs. The most common issue is the key becoming difficult to turn, or getting stuck in the 'Off,' 'Accessory,' or 'On' position. This is often due to worn internal tumblers or debris inside the cylinder. You might find yourself needing to jiggle the key or wiggle the steering wheel to get it to turn. In more serious cases, the key won't turn at all, leaving you stranded. Another symptom is when the engine starts but shuts off as soon as you release the key from the 'Start' to 'On' position, which can point to a problem with the connection between the lock cylinder and the ignition switch.
Don't Confuse the Cylinder with the Switch
The Ignition Lock Cylinder is the mechanical part your key fits into. The Ignition Switch is the electronic part behind it that sends power to the vehicle's systems. While they work together, they are separate parts and can fail independently. If your accessories (radio, windows) work but the truck won't crank, the problem could be the switch, but if the key physically won't turn, the cylinder is the prime suspect.
Choosing the Right Aftermarket Ignition Lock Cylinder
When replacing the ignition lock cylinder, you have several options besides going to the dealer. Here’s a breakdown of common aftermarket brands.
- Motorcraft: This is Ford's OEM parts brand. It offers a direct fit and the same quality as the original part. While it's the most expensive option, it's the benchmark for performance and longevity. 🎬 See how to install a Motorcraft ignition lock cylinder. Many owners choose to recode the new Motorcraft cylinder to match their original keys, avoiding the need for reprogramming.
- Standard Motor Products (SMP): Often considered a top-tier aftermarket brand, SMP produces high-quality electronic and mechanical parts. Their lock cylinders are known for using durable materials like brass tumblers and meeting or exceeding OE specifications, making them a trusted choice for professional mechanics.

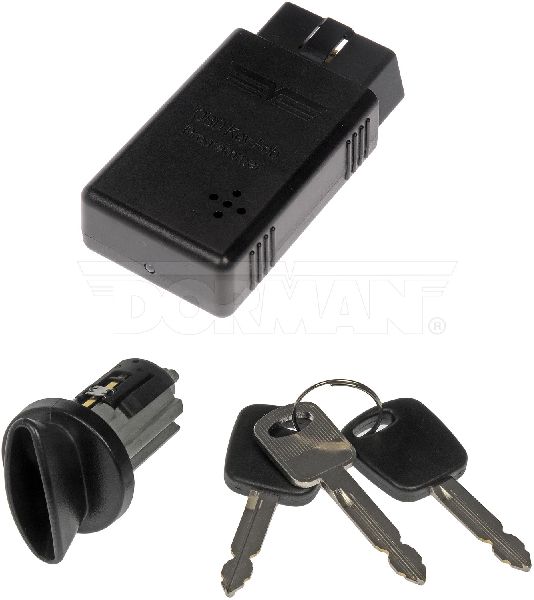

- Dorman: Dorman is a well-known aftermarket brand that offers a wide range of parts. For the Expedition, they offer several kits, some of which include a special tool to program new keys, which can save a trip to the dealer. While some users have mixed opinions on Dorman quality in forums, their OE FIX solutions often aim to correct original design flaws.
- Replacement / Store Brands: These are the most budget-friendly options. They are designed to match the fit and function of the original part and can be a good value for the money. However, their long-term durability may not match that of premium brands.
Cost of Replacing an Ignition Lock Cylinder (1997-2004 Ford Expedition)
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $75 - $155 |
| New Aftermarket | $33 - $121 |
| Shop Labor | $133 - $195 |
| Total Professional Replacement | $164 - $350+ |
A Note on Keys and Programming
Most 1997-2004 Expeditions use a key with a chip for the PATS system. When you replace the lock cylinder, it will come with new keys. You cannot simply use these new keys, as the vehicle's computer won't recognize their chips. You have three main options: 1) Have a locksmith or dealer program the new keys to your truck. 2) Swap the tumblers from your old cylinder into the new one, allowing you to keep using your original keys. 3) Some Dorman kits come with a programming tool that lets you do it yourself, provided you have at least one working original key.
Frequently Asked Questions
Can I replace the ignition lock cylinder myself?
Yes, this is a very DIY-friendly job for most home mechanics. The process involves removing the steering column shrouds, turning the key to the 'Run' position, and inserting a small punch or screwdriver into a release hole to pop the cylinder out. The entire job can usually be done in under an hour. 🎬 Follow this step-by-step guide to remove and install the cylinder. The main challenge is dealing with the key programming afterward.
Are there any recalls for the ignition lock cylinder on my Expedition?
No, there are no specific recalls for the ignition lock cylinder itself. There were major recalls (NHTSA 05V-388) for the speed control deactivation switch on 1997-2002 Expeditions, which could cause a fire, but this is an unrelated part. There was also a Technical Service Bulletin (TSB 99-16-4) for keys being hard to turn, but it related to a misaligned shift column bushing, not the cylinder itself.
My key is stuck. What should I do first?
Before assuming the cylinder is bad, try turning the steering wheel back and forth while gently trying to turn the key. Sometimes pressure from the steering lock can bind the cylinder. Also, ensure the gear shifter is fully in Park. If these steps don't work, 🎬 Watch this video for more tips if your key won't turn. a shot of dry graphite lubricant (not WD-40) into the keyhole can sometimes free up stuck tumblers.
Will a new lock cylinder fix my truck not starting?
It depends on the symptom. If the key won't turn to the 'Start' position, then yes, a new cylinder will likely solve the problem. However, if the key turns fine but the engine doesn't crank or it starts and immediately dies, the problem is more likely the ignition switch, a dead battery, or an issue with the PATS anti-theft system.
Helpful Videos
Technical Specifications
OEM Part Numbers: AU5Z-11582-B 1L3Z-11582-A
This is a mechanical lock cylinder that actuates the ignition switch. For 1997-2004 models, it is compatible with Ford's PATS chipped key system. Replacement requires either re-coding the cylinder or reprogramming the vehicle's computer to accept the new keys.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
