Ford Expedition Parking Brake Switch Guide for 1997-2004 Models
Having issues with your parking brake light? Here’s what first-generation Expedition owners need to know.
- The 'BRAKE' light staying on is the most common symptom of a bad switch on a '97-'04 Expedition.
- Before replacing the switch, always check the brake fluid level first, as the warning light is shared.
- Accessing the switch under the dash is often harder than replacing it; cleaning the contacts may solve the problem.
- There are no known recalls for this mechanical switch; recent recalls are for newer electronic systems.
Is Your Expedition's Parking Brake Switch Failing?
On the first-generation Ford Expedition, the parking brake switch is a straightforward mechanical part. Over time, it can wear out, get stuck, or suffer from bad electrical contacts. The most common complaint from owners is the red 'BRAKE' light on the dash either staying on when it shouldn't or not turning on at all.
Common Symptoms of a Bad Switch
- 'BRAKE' Light Stays On: The most frequent issue is the brake light remaining illuminated even after the parking brake pedal is fully released. Owners often report that tapping the pedal with their foot makes the light go off, which points directly to a faulty or misaligned switch. 🎬 Watch this video to see how to fix a faulty light.
- 'BRAKE' Light Won't Turn On: When you press the parking brake pedal, the light on the dash should come on immediately. If it doesn't, the switch has likely failed or its contacts are too corroded to complete the circuit.
- Flickering or Intermittent Light: A light that flickers can indicate a loose switch or dirty internal contacts that are struggling to maintain a solid connection.
Warning: Don't Ignore the 'BRAKE' Light
Because the 'BRAKE' light on your Expedition is a multi-function warning, don't automatically assume a faulty parking brake switch is the cause. Always check your brake fluid level first. If the fluid is low, you could have a more serious issue with your primary hydraulic brakes. If the fluid level is normal, the parking brake switch becomes the next likely suspect.
Choosing the Right Aftermarket Part
For a vehicle of this age, new Original Equipment (OEM) parts can be difficult to find and are often discontinued. The aftermarket provides reliable and readily available options. The two common brands for this part are Standard Ignition (Standard Motor Products) and Rostra Powertrain.
- Standard Ignition (SMP): A very well-known brand in the aftermarket, Standard Motor Products is generally regarded as a supplier of quality, OE-style replacement parts. They manufacture a wide range of automotive electronics and emphasize quality control.
- Rostra Powertrain: Rostra is also a supplier for both OE and aftermarket applications, specializing in electronic components and transmission parts. They often highlight their quality certifications, aiming to meet or exceed original specifications.
For a simple switch like this, both brands are considered reliable choices that offer a direct-fit replacement for the original part.
Pro Tip: Try Cleaning It First
Before you buy a new part and tackle the replacement, you might be able to fix the issue for free. Accessing the switch under the dash can be tricky, but once you can see it, try spraying the plunger and electrical connector with electrical contact cleaner. Some owners on forums have had success using a small file to gently clean oxidation off the switch's metal contacts and grounding point to restore function.
Cost to Replace the Parking Brake Switch
The cost to fix this issue is relatively low, especially if you do the work yourself. The main variables are the price of the part and the shop's labor rate.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Switch | $20 - $87 |
| New OEM Switch | $45 - $100+ (Often discontinued) |
| Shop Labor | $82 - $120 |
| Total Professional Repair | $102 - $207 |
Cost estimates are based on national averages and may vary. The aftermarket part price range is based on available inventory.
Frequently Asked Questions
Is it hard to replace the Expedition's parking brake switch yourself?
The replacement itself is simple—it's usually held by a single bolt. However, getting to it can be difficult. It's located in a tight space under the dashboard, and you may need to work around other panels and wiring harnesses. It is a feasible DIY job for someone comfortable working in a cramped footwell.
🎬 See this walkthrough for testing and replacing the switch.Are there any recalls for this part on my 1997-2004 Expedition?
No. Searches of the NHTSA database show no recalls or major technical service bulletins (TSBs) for the mechanical parking brake switch on the 1997-2004 Ford Expedition. Recent recalls you may have heard about involve the *electronic* parking brake systems on much newer models (2021+).
Why is there such a big price difference in aftermarket switches?
The price range of $20.95 to $86.12 often reflects differences in brand reputation, included hardware (like a new connector pigtail), and warranty. However, for a basic switch, a lower-priced option from a reputable brand like Standard or Rostra is typically sufficient.
What does the parking brake switch look like?
It is a small switch, typically with a plastic body and a metal plunger. It has a single electrical connector. It is mounted directly to the large metal parking brake pedal assembly under the driver's side dashboard.

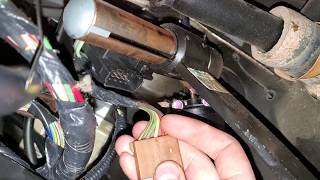

🎬 Watch a mechanic demonstrate the easy way to replace the switch.Helpful Videos
Technical Specifications
OEM Part Numbers: 2F2Z-15A851-AB
A single-bolt mount, 2-pin electrical connector, spring-loaded plunger switch located on the foot pedal parking brake assembly.
