Ford Expedition Starter Motor Guide for 1997-2004 Models
Everything you need to know before replacing the starter on your first-generation Ford Expedition.
- For 1997-2002 models, check the inexpensive firewall-mounted starter relay first before replacing the entire starter.
- A single 'click' is the most common symptom of a failed starter, but always test the battery to rule it out.
- Accessing the top mounting bolt is the hardest part of the job; a long extension and removing the passenger wheel well liner helps significantly.
- Choosing a quality brand like Motorcraft or a high-torque option like Powermaster is recommended over cheap store brands to avoid premature failure.
Symptoms of a Failing Starter
A bad starter can leave you stranded. Recognizing the signs early can save you a headache. The most common symptom is a single, loud "click" when you turn the key, but the engine doesn't crank. Other signs include:
- No Crank, No Start: You turn the key and nothing happens at all—no sounds, no cranking.
- Slow Cranking: The engine turns over very slowly, as if the battery is weak, even when it's fully charged.
- Grinding Noise: A harsh grinding sound during or after starting can indicate a problem with the starter gear not meshing correctly with the flywheel.
- Intermittent Starting: The truck starts fine sometimes but fails to crank at other times. This can be caused by "dead spots" in the starter motor.
- Starter Spins but Engine Doesn't Engage: You might hear a whirring or spinning noise, but the engine itself isn't turning over. This points to a failure in the starter's Bendix gear.
Before replacing your starter, always test your battery first. A weak or dead battery, or even corroded battery terminals, can cause symptoms that mimic a bad starter, such as rapid clicking or a no-crank situation.
Known Issues for 1997-2004 Ford Expedition
For this generation of Expedition, a common point of failure isn't always the starter motor itself, but the fender-mounted starter relay (solenoid) 🎬 Watch this video to find your starter relay location. on 1997-2002 models. This inexpensive part can fail, resulting in a "no-click, no-crank" situation. It's often mistaken for a bad starter motor. Testing this relay first can save you from buying a part you don't need. The starter is also located beneath the passenger-side exhaust manifold, making it susceptible to heat damage and contamination from oil leaks from the valve covers above.
Choosing a New Aftermarket Starter
When it comes to electrical parts, quality matters. While a cheap, no-name starter might get you back on the road, owners often report premature failures. Sticking with a reputable brand is a better long-term investment.
- Motorcraft: As the original equipment (OE) supplier for Ford, Motorcraft is the benchmark for fit and quality. While they offer new parts, their remanufactured units are also a very reliable option, often rebuilt to high standards.

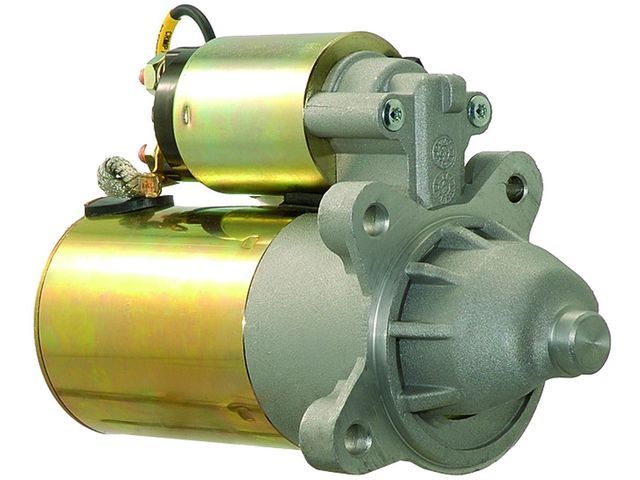

- ACDelco: A well-respected brand with a history tied to General Motors, ACDelco offers quality parts that meet or exceed OE specifications. They are a solid choice for Expedition owners looking for a dependable aftermarket alternative.
- Powermaster: If you need more cranking power for a modified engine or just want a robust, high-torque option, Powermaster is a popular choice. They are known for solving heat-soak issues and providing faster, more reliable starts, especially on high-compression engines.
- MPA (Motor Parts of America): MPA is a large producer of starters and alternators, often supplying store brands. Quality can be hit-or-miss depending on the specific product line, so it's important to check warranties and reviews.
Many experienced owners and mechanics prefer a new or remanufactured Motorcraft starter over a cheap, new aftermarket unit. The build quality and reliability are generally considered superior.
Cost of Replacing a Ford Expedition Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $89 - $197 |
| Remanufactured Starter | $140 - $210 |
| OEM (Motorcraft) Starter | $307 - $325 |
| Shop Labor | $122 - $179 |
| Total Professional Replacement | $429 - $504 |
Frequently Asked Questions (FAQ)
Is replacing the starter on a 1997-2004 Expedition a DIY job?
Yes, for most home mechanics with a decent set of tools, this is a manageable job. The main challenge is accessing the top mounting bolt 🎬 Follow this step-by-step guide to replace your starter., which is tucked away. You will need a long socket extension and possibly a wobble adapter to reach it. Removing the passenger-side wheel and wheel well liner can provide much better access.
What are the most common mistakes when replacing the starter?
The biggest mistake is not disconnecting the battery first. The starter has a direct, unfused connection to the battery, and failing to disconnect it can cause dangerous sparks and short circuits. Another common issue is breaking the corroded studs on the solenoid when removing the wires; using a penetrating oil like PB Blaster beforehand is highly recommended. Finally, always compare the new starter to the old one before installation to ensure the bolt pattern matches.
What tools are needed to replace the starter?
You'll need basic hand tools, including a socket set with 10mm and 13mm sockets, a long extension (at least 6 inches), and a ratchet. A floor jack and jack stands are essential for safely working under the vehicle. A wobble socket or universal joint can make reaching the top bolt much easier.
My truck just clicks. Is it the starter or the solenoid?
On 1997-2002 models, a single click often points to the firewall-mounted relay/solenoid. You can test this by having a helper turn the key while you check for voltage at the starter. A quick test is to jump the two large terminals on the relay 🎬 See how to troubleshoot a no-crank solenoid problem. with an old screwdriver; if the starter spins, the relay is bad. On 2003-2004 models, the solenoid is part of the starter, so a click usually means the entire starter assembly needs replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: SA817RM
Voltage: 12V, Power Rating: 1.4 kW, Rotation: Clockwise, Number of Teeth: 12.
We Have This Part in Stock
