Guide to Replacing the Starter Motor on a 1997-2004 Ford Mustang
Don't get stranded by a bad starter—here's what you need to know for your SN95 or New Edge Mustang.
- A single, loud click with no crank is the most common sign of a failed starter.
- The replacement is notoriously difficult due to a hard-to-reach top bolt, especially on V8 models.
- Heat soak is a frequent problem on 4.6L V8s; consider a high-torque mini-starter or heat shield as a solution.
- Always test the battery and check for corroded cables first, as these can cause similar symptoms.
Is Your Mustang's Starter Failing?
A bad starter is one of the most common no-start problems on the 1997-2004 Ford Mustang. The symptoms can sometimes be confused with a dead battery, so it's important to diagnose the issue correctly. The most classic sign of a bad starter is a single, loud "click" from the engine bay when you turn the key, but the engine doesn't crank.
Key Symptoms of a Bad Starter:
🎬 Watch: A visual guide to common starter failure symptoms.- Single Loud Click, No Crank: You turn the key, hear one solid click, and then silence. This usually means the starter's solenoid is engaging, but the motor itself isn't turning.
- Slow, Labored Cranking: The engine turns over very slowly, as if the battery is weak. This can happen when the starter motor is wearing out and drawing too much power.
- Grinding or Whirring Noise: A harsh grinding sound during or after starting can mean the starter gear isn't meshing properly with the flywheel or isn't retracting correctly. This can cause expensive damage to the flywheel if ignored.
- No Sound at All: If your dashboard lights come on but you hear nothing when you turn the key, the problem could be the starter solenoid or the electrical circuit leading to it.
- Intermittent Starting: The car starts fine sometimes and fails to start at others. This can be a sign of worn internal components or a heat-related issue.
Heat Soak on V8 Models
A very common issue on 4.6L V8 Mustangs (GT, Cobra, Mach 1) is "heat soak." The starter is located close to the hot exhaust manifold. After a long drive, the heat can cause the starter's internal components to expand and bind, preventing it from working. 🎬 See how heat soak affects your starter and how to fix it. After the engine cools down for an hour or so, the car may start normally again. Upgrading to a high-torque mini-starter or adding a heat shield can help solve this problem.

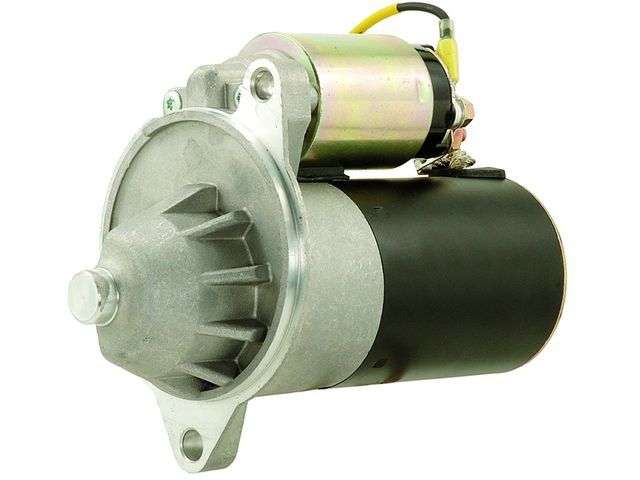

Choosing the Right Aftermarket Starter
When your original starter fails, you have several options. While a cheap, remanufactured part from a local store is an option, many Mustang owners report better long-term success with new, quality aftermarket units or OEM parts.
Brand Tiers for Your Mustang
- OEM (Motorcraft): Ford's own brand, Motorcraft, offers a direct replacement for guaranteed fit and performance. It's a reliable, safe choice if you want to stick with factory quality.
- Performance (Powermaster, Ford Performance): Brands like Powermaster are very popular with Mustang enthusiasts, especially for modified cars. They offer high-torque, compact "mini-starters" that provide more cranking power for high-compression engines and better clearance for aftermarket headers. They are also known to resist heat soak problems.
- OEM-Equivalent (ACDelco): ACDelco is a well-respected brand that offers quality parts that meet or exceed original specifications. Their Professional line is a solid choice for a daily driver.
- Standard Replacement (MPA): MPA typically offers remanufactured starters that provide a good value. These are functional replacements that meet original equipment specifications.
Pro Tip: For V8 models with aftermarket headers, a compact, high-torque starter from a brand like Powermaster is highly recommended to prevent fitment and heat soak issues. Many owners also choose to replace the starter when installing headers for easier access.
Cost of Replacing a 1997-2004 Mustang Starter
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $125 - $297 |
| New Aftermarket | $89 - $178 |
| Used OEM | $50 - $85 |
| Shop Labor | $117 - $250 |
Frequently Asked Questions
Is replacing the starter on a 1997-2004 Mustang a DIY job?

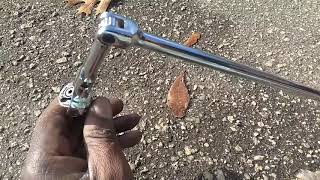

Yes, but it can be difficult. The starter is located on the passenger side of the engine, but it's tucked in a tight space. The top mounting bolt is notoriously hard to reach. 🎬 Watch this trick for reaching that difficult top mounting bolt. Many mechanics use a very long extension with a swivel socket or even remove a section of the exhaust H-pipe for access. The job is generally considered more difficult on this Mustang than on other Ford vehicles of the same era.
Do I need to replace any other parts with the starter?
It's a good time to inspect your battery cables. Corroded or damaged cables can cause starting problems that mimic a bad starter. Ensure the connections at the battery, engine block, and starter solenoid are clean and tight.
What's the difference between a new and a remanufactured starter?
A new starter is made with all-new components. A remanufactured starter has been disassembled, cleaned, and had its worn-out internal parts (like brushes and bearings) replaced with new ones before being reassembled and tested. Quality can vary, but a good remanufactured unit can be a reliable option.
Are there any recalls for the starter on this Mustang?
No, there have been no specific recalls issued by the NHTSA for the starter motor on the 1997-2004 Ford Mustang. Most recalls for this generation concerned lighting, airbags, or other components.
Helpful Videos
Technical Specifications
OEM Part Numbers: F7SU-11000-AA F7SZ-11002-AARM F7UZ-11V002-AARM
Power Rating: 1.2kW - 1.4kW; Voltage: 12V; Number of Teeth: 10 or 12 depending on engine and transmission.
