A Guide to Replacing Fuel Injectors on the 1997-2005 Cadillac DeVille
Keep your Northstar V8 running smoothly by understanding how to spot and fix a bad fuel injector.
- A flashing check engine light with a P0300 code often points to fuel system issues, including injectors.
- Always replace injector O-rings to prevent dangerous fuel leaks.
- For reliability, it's best to replace all eight injectors at once using a quality brand like Bosch or Standard.
- Be aware of the 1996-1997 fuel rail recall (04014E), as a leak there can be mistaken for an injector problem.
Is Your DeVille's Fuel Injector Failing?
A bad fuel injector in the Northstar engine can cause problems ranging from annoying to serious. When an injector fails, it can get stuck open, stuck closed, or just spray fuel poorly. This throws off the air-fuel mixture in one or more cylinders, leading to noticeable symptoms. 🎬 Watch: How to identify symptoms and test for a failed injector. If you notice a strong smell of raw gasoline, do not drive the car, as this could indicate a dangerous fuel leak and fire hazard.
Known Issues, Recalls, and Service Bulletins
There was a significant safety recall (NHTSA ID: 04014E) for 1996-1997 Cadillac DeVille models concerning the fuel rail. The original nylon fuel rail could degrade and crack, leading to a fuel leak in the engine bay, which poses a fire risk. The fix involves replacing the original rail with a more durable stainless steel version. While this recall doesn't target the injectors themselves, it's a critical fuel system component to be aware of. No other fuel injector-specific recalls were found for the 1997-2005 model years. General Motors has issued technical service bulletins (TSBs) related to fuel odors and hard starting, which can be caused by injector O-rings failing. TSBs are not recalls but are official repair guides for technicians.
Choosing the Right Aftermarket Fuel Injector
When replacing injectors on your DeVille, you have options outside of the expensive dealership parts. However, quality varies significantly. The original equipment (OE) manufacturer for GM is typically ACDelco.
Tier 1: OEM-Equivalent Brands

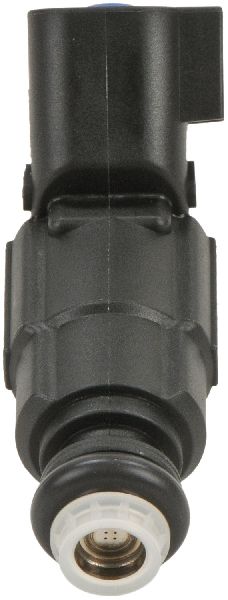

- Bosch: Bosch is a massive, highly respected German company that often supplies original parts to automakers. They are known for precision engineering and high-quality standards, making them a top-tier choice that often matches or exceeds OEM quality. For a critical part like a fuel injector, Bosch is a reliable bet for long-term performance.
Tier 2: Reputable Aftermarket Brands
- Standard Motor Products (Standard Ignition): Standard is a long-standing American company known for producing reliable ignition and fuel system parts. They are a trusted name among professional mechanics and are considered a solid, dependable option that provides good performance and value.
Tier 3: Budget & Remanufactured Brands

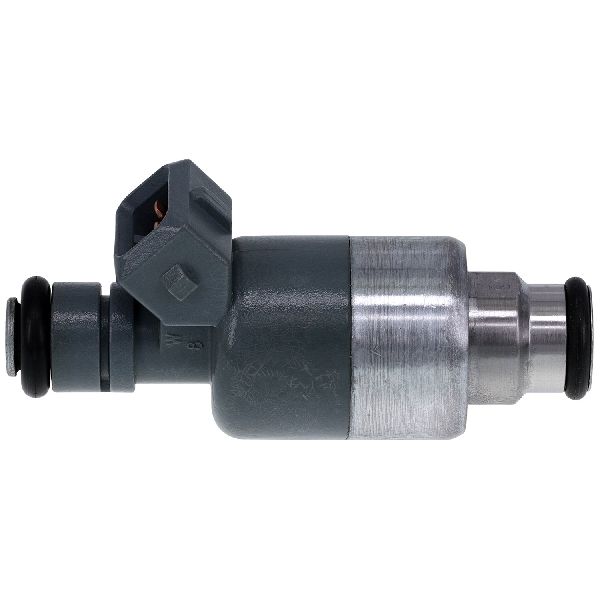

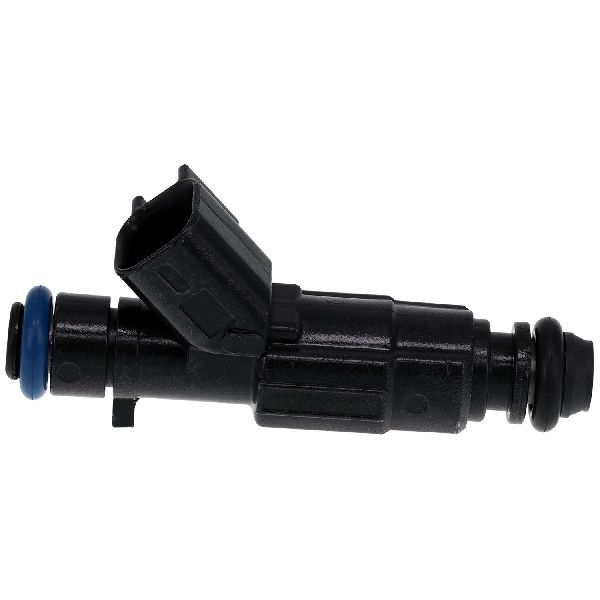

- GBR Fuel Injection (GB Remanufacturing): GB specializes in remanufacturing fuel injectors. While remanufactured parts can save a lot of money, their quality can be inconsistent. Some users report success, while others have experienced premature failures, such as injectors getting stuck open right out of the box. This can lead to serious issues like hydro-locking the engine or washing fuel into the oil. Buying remanufactured injectors is a risk; it's often better to invest in a new, quality part if the budget allows.
A Note on Replacing Injectors
Your DeVille has eight fuel injectors. When one fails, it's common for others to be near the end of their life. For balanced engine performance and to avoid repeating the repair process, 🎬 Follow this step-by-step walkthrough to replace your fuel injectors correctly. it is highly recommended to replace all eight injectors at the same time. Also, always replace the small rubber O-rings on the injectors during installation to prevent fuel and vacuum leaks.
How Much Does a Fuel Injector Replacement Cost for a 1997-2005 Cadillac DeVille?
The cost can vary widely. A single aftermarket injector can range from about $50 to over $115. If you're replacing all eight, the parts cost adds up quickly. Professional labor to replace a single injector is estimated to be between $140 and $205, but replacing the full set will cost more.
| Part/Service | Estimated Cost Range |
|---|---|
| New OEM (ACDelco) Injector (Single) | $120 - $150+ |
| New Aftermarket Injector (Single) | $50.97 - $113.91 |
| Remanufactured Injector (Single) | $30 - $70 |
| Shop Labor (Single Injector) | $140 - $205 |
| Shop Labor (Full Set of 8) | $400 - $700+ |
Frequently Asked Questions
Can I drive my DeVille with a bad fuel injector?
If you do not smell fuel, you can likely drive it to a repair shop, but it's not recommended for long. A bad injector can cause engine misfires, poor fuel economy, and potentially damage the catalytic converter or engine internals over time. If you smell raw fuel, do not drive the vehicle; it is a fire hazard.
Do I need to replace all eight injectors at once?
It is best practice to replace all eight injectors at the same time. Since they have all operated for the same amount of time under the same conditions, the failure of one often means others are not far behind. Replacing them as a set ensures balanced fuel delivery to each cylinder, which is crucial for the smooth operation of the Northstar engine.
What is an injector O-ring and why is it important?
An O-ring is a small rubber seal at the top and bottom of the fuel injector. These seals prevent fuel from leaking out of the fuel rail and prevent unmetered air (a vacuum leak) from entering the engine. These seals degrade over time and must always be replaced when an injector is serviced or replaced to ensure a proper seal.
What is the difference between a fuel injector and a fuel rail?
The fuel rail is a pipe that holds pressurized gasoline and distributes it to all the fuel injectors. The fuel injectors are the individual nozzles that plug into the fuel rail and spray fuel into the engine. You must remove the fuel rail to access and replace the injectors.
🎬 See this quick guide on safely disconnecting fuel rail lines.Helpful Videos
Technical Specifications
The 1997-2005 Cadillac DeVille uses a port fuel injection system with one injector per cylinder for its 4.6L Northstar V8 engine.
