Chevrolet Astro Distributor Cap Replacement Guide (1997-2005)
Solving common misfires and no-start problems in your 4.3L V6 Astro van.
- Address the TSB by removing the distributor vent screens to prevent moisture and corrosion buildup.
- Always replace the distributor rotor at the same time as the cap; they wear as a set.
- Check that the A/C line above the distributor has proper insulation to prevent condensation drips.
- Consider using a quality aftermarket cap with brass terminals (like Standard Ignition) for better corrosion resistance.
Is Your Astro Van Running Rough? Check the Distributor Cap.
If you own a 1997-2005 Chevrolet Astro, you're likely familiar with its reliable 4.3L Vortec V6 engine. However, a common weak point in this ignition system is the distributor cap and rotor. These parts wear out over time and are a frequent cause of engine performance issues. Due to the engine's placement, the distributor is located at the very back, tucked under the windshield cowl, making it susceptible to specific problems.
Known Issues for the 1997-2005 Chevrolet Astro
Technical Service Bulletin (TSB) #05-06-04-007
General Motors issued a TSB for the 4.3L engine regarding poor performance and a P0300 (Random Misfire) code. The cause is often excessive corrosion inside the distributor cap. This is caused by clogged vent screens at the base of the distributor, which trap moisture and corrosive gases. Mechanics often remove these small screens during replacement to improve ventilation and prevent future buildup.
Condensation from A/C Lines
Another known issue is condensation from the air conditioning line that runs directly over the distributor. This water can drip onto the cap, leading to moisture intrusion, corrosion, and misfires. Many vans have a foam insulator on the A/C line from the factory to prevent this, but it can degrade or fall off over time. Ensure this insulation is in place.
Choosing the Right Aftermarket Distributor Cap
When your original cap fails, you have several aftermarket options. Quality varies, so it's important to choose wisely. For the Astro van's problematic ignition setup, investing in a quality cap is recommended.
- Premium Brands (OEM-Equivalent): ACDelco and Delphi are Original Equipment suppliers for GM. Choosing a cap from these brands is the closest you can get to the original factory part's fit and function. They are trusted for reliability and are often recommended by professional mechanics.
- Quality Aftermarket Brands: Standard Ignition (SMP) is a well-regarded aftermarket manufacturer. They often produce parts that meet or exceed OEM specifications and frequently use high-quality materials like glass-reinforced polyester and brass terminals, which resist corrosion better than the aluminum terminals found on some other caps.

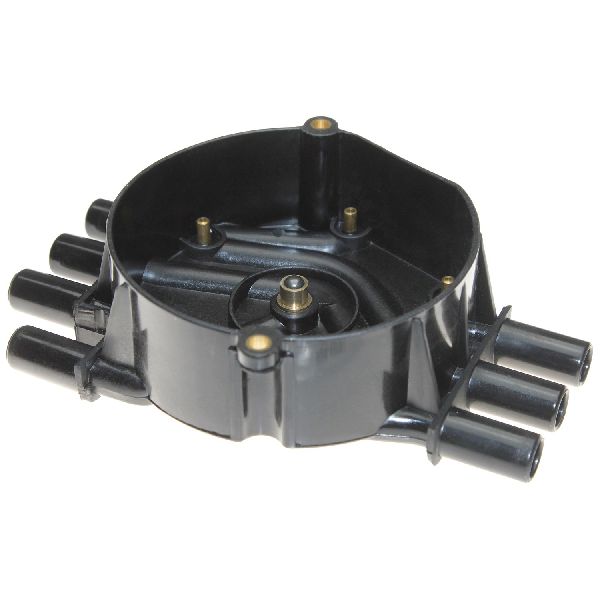

- Performance/Value Brands: Brands like Accel and Walker Products offer alternatives that may focus on performance or value. Accel is known for high-performance parts, often featuring materials designed for higher voltage. Walker is a broad-line replacement part manufacturer. While often more affordable, always check reviews for long-term reliability on this specific vehicle.
Brass vs. Aluminum Terminals
You will see caps with either aluminum or brass contact points. While both work, many mechanics and experienced Astro owners prefer caps with solid brass terminals. Brass is more resistant to the corrosion and oxidation that plagues the Astro's distributor system, potentially offering a longer service life.
Distributor Cap & Rotor Cost for 1997-2005 Chevrolet Astro
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Distributor Cap | $35 - $70 |
| New Aftermarket Cap & Rotor Kit | $45 - $90 |
| Shop Labor for Cap & Rotor Replacement | $100 - $200 |
| Total Professional Replacement | $145 - $290 |
Cost estimates are for parts and labor and can vary by location, vehicle condition, and the parts chosen. It is almost always recommended to replace the distributor rotor at the same time as the cap.
Frequently Asked Questions
Do I have to replace the rotor with the cap?
Yes, you absolutely should. The rotor is the spinning part inside the distributor that makes contact with the cap's terminals. It wears out at the same rate as the cap. Replacing the cap but leaving a worn rotor is a recipe for continued problems and means you'll have to do the job all over again soon. Most quality brands sell a cap and rotor together in a kit.
Why does my Astro van go through distributor caps so often?
This is a common complaint among Astro owners. It's due to a combination of factors: poor ventilation inside the distributor leading to corrosion (the TSB issue), moisture dripping from A/C lines, and high heat at the back of the engine bay. Using a quality cap with brass terminals and ensuring the distributor base vents are clear can help extend its life.
How do I know if my distributor cap is bad?
Common symptoms include the engine misfiring (running rough), a flashing or solid Check Engine Light (especially code P0300), difficulty starting, stalling, and even a no-start condition where the engine just cranks. You may also see a white, chalky residue or green corrosion on the metal terminals inside the cap.
Is replacing the Astro's distributor cap a DIY job?
It is, but it's more difficult than on many other vehicles. Access requires removing the interior engine cover (the "doghouse") between the front seats. The distributor is at the very back of the engine. The job requires some patience and basic hand tools (like Torx drivers), but it is feasible for a DIY mechanic.
Helpful Videos
Technical Specifications

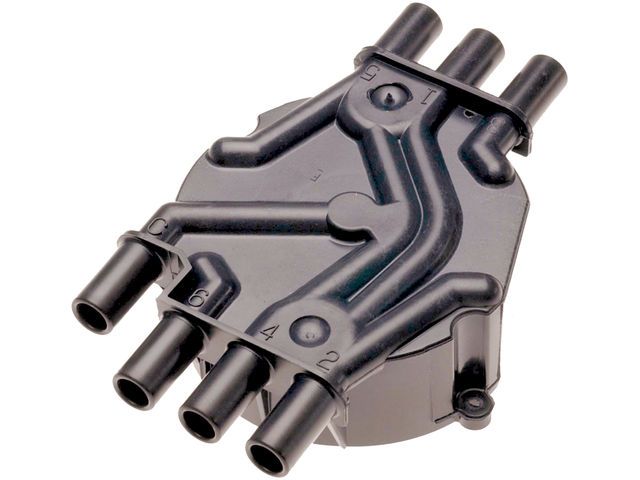

OEM Part Numbers: 10452459 D328A D329A
Fitment for 4.3L (262ci) V6 Vortec Engine. Cap is typically secured by two Torx screws (T20). Material is a high dielectric strength polymer, with either aluminum or brass terminals.
