Engine Water Pump Replacement Guide for the 1997-2005 Chevrolet Astro
Keep your Astro's 4.3L V6 from overheating with the right new water pump.
- A failing water pump gives clear warnings: leaks, overheating, and noise. Do not ignore them.
- For this van, premium aftermarket brands like ACDelco and Gates offer OEM-level quality and are a reliable choice.
- While the part is inexpensive, budget for 2-3 hours of shop labor as the replacement is moderately difficult.
- To prevent future issues, replace the thermostat, serpentine belt, and coolant at the same time as the water pump.
Is Your Astro's Water Pump Failing?
A water pump doesn't usually fail suddenly. It gives warning signs. If you notice any of these symptoms with your 1997-2005 Chevrolet Astro, it's time to inspect the water pump.
Common Failure Symptoms
- Coolant Leaks: This is the most common sign. You might see a puddle of green, orange, or pink fluid under the front-center of your van. A slow leak might just leave a white or colored crusty residue around the pump itself from dried coolant. The leak comes from a small 'weep hole' on the bottom of the pump, which is designed to let coolant out when the internal seal fails.
- Overheating Engine: If your temperature gauge starts climbing into the red, the water pump might not be circulating coolant effectively. Driving an overheating engine can cause severe damage like a blown head gasket.
- Whining or Grinding Noises: A high-pitched whine or a rough grinding sound coming from the front of the engine that changes with engine speed is a classic sign of a bad water pump bearing. The bearing inside the pump is wearing out and will eventually seize. 🎬 Watch: How to diagnose these symptoms and estimate repair costs
- Wobbly Pulley: If you can, safely look at the front of the engine while it's off. The water pump has a pulley that the serpentine belt rides on. If this pulley looks loose or you can wiggle it by hand (with the engine off and cool!), the bearing is gone.
Can I Drive with a Bad Water Pump?
It is not recommended. A failing water pump cannot properly cool the engine, which can lead to rapid overheating and catastrophic engine damage. If you see steam from the engine or the temperature gauge is in the red, pull over and shut the engine off immediately.
Choosing the Right Aftermarket Water Pump
For the 1997-2005 Astro, you don't need to buy a part from the dealer. Aftermarket water pumps offer excellent quality, often from the same companies that make the original parts. Here’s how the available brands generally stack up in terms of quality and reputation.
Tier 1: Premium & OEM-Level Quality
These brands are known for excellent reliability and are often the original equipment manufacturer for GM. They are a top choice for owners who want the best-available part and peace of mind.

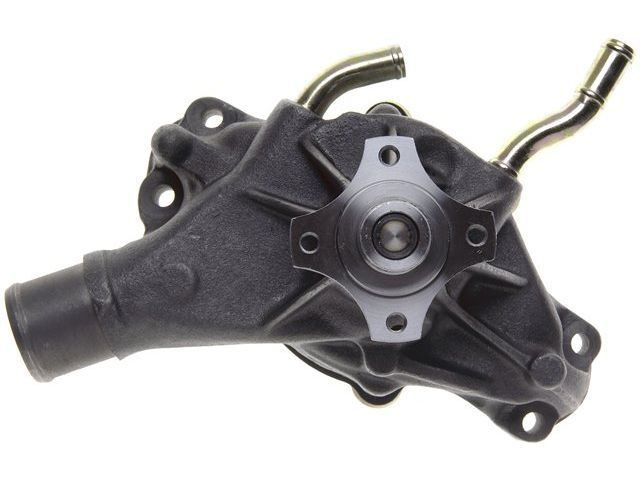

- ACDelco: As GM's own parts brand, ACDelco is the closest you can get to the original part your Astro came with. They are a trusted, go-to choice for GM vehicles.
- Gates: Gates is a huge name in cooling systems and drive belts. They are highly respected for durable, high-quality water pumps that offer a great balance of performance and value.
Tier 2: Trusted Aftermarket Brands
These brands are well-established and offer dependable performance. They are a solid choice for most repairs and provide a good mix of quality and price.
- Dayco: With over a century in the auto parts business, Dayco is a reliable mid-range choice known for quality cooling system parts that meet original specifications.
- Melling: Melling is a respected aftermarket manufacturer, and their parts are often considered a good quality alternative.
Tier 3: Economy Options
These brands provide a functional replacement at a lower cost. They can be a good choice for budget-conscious repairs, but forum discussions show mixed reviews on long-term durability compared to premium brands.

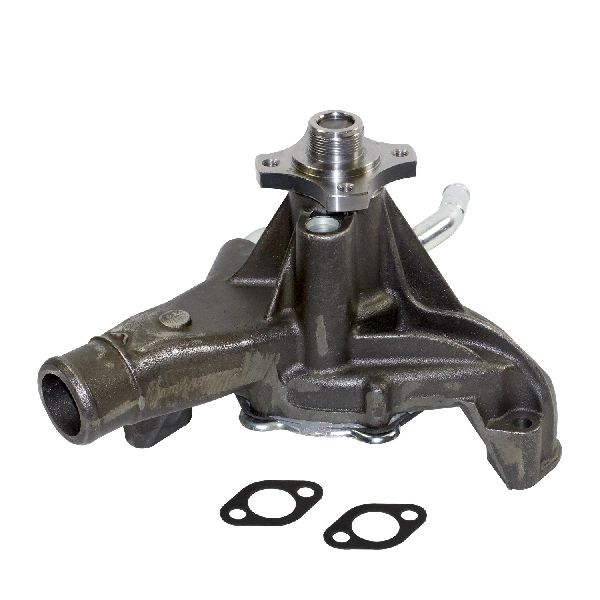

- GMB: GMB is a large manufacturer and even makes parts for some car companies. However, owner reviews are mixed; some have no issues, while others report premature failures.
- US Motor Works: This is a standard aftermarket brand offering a cost-effective replacement option.
Pro Tip: Replace More Than Just the Pump
Since the water pump replacement is a labor-intensive job, it's a good idea to replace other related parts at the same time. Consider replacing the serpentine belt, belt tensioner, and thermostat. Also, this is the perfect time to flush your cooling system and add fresh coolant.
Estimated Replacement Costs
The cost to replace the water pump on a '97-'05 Astro can vary. The part itself is affordable, but the labor to access it makes up a large portion of the cost. The job requires removing the fan shroud and fan clutch, which can be difficult.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $78 - $278 |
| Shop Labor | $250 - $400 |
| Total Professional Installation | $328 - $678 |
*Cost estimates are for the part and labor only and do not include taxes, fees, or related parts like coolant or a new thermostat. Prices can vary significantly by region and repair shop.
Frequently Asked Questions
Was there a recall on the water pump for the Chevy Astro?
No, there have been no specific recalls or technical service bulletins (TSBs) issued by Chevrolet or the NHTSA for the engine water pump on the 1997-2005 Chevrolet Astro.
How difficult is it to replace the Astro water pump myself?
This is a moderately difficult job for a DIY mechanic. It does not require many special tools, but accessing the pump is tight. You will need to drain the coolant and remove the air intake, fan shroud, serpentine belt, and fan clutch assembly. If you are not comfortable with this level of disassembly, it's best to leave it to a professional.
🎬 See this step-by-step water pump replacement on a '98 AstroShould I use sealant on the new water pump gaskets?
Most new water pump kits come with high-quality gaskets that do not require additional sealant. Some mechanics apply a very thin layer of RTV silicone gasket maker to hold the gaskets in place during installation, but a thick layer can cause problems. Always follow the instructions included with your new water pump.
🎬 Watch: A condensed walkthrough of the Astro water pump installationWhat type of coolant should I use in my 1997-2005 Astro?
These vans originally used traditional green coolant. However, many modern universal coolants that are compatible with all makes and models (often yellow or green) will also work. The most important thing is to use a new, clean coolant and not mix different types. Check your owner's manual for the specific coolant type recommended for your vehicle.
Helpful Videos

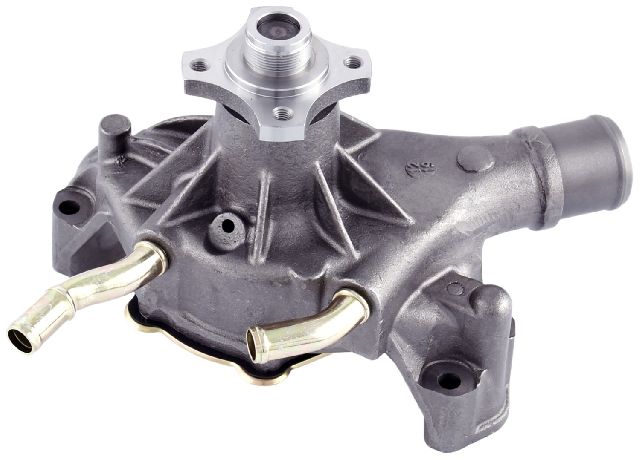

Technical Specifications
OEM Part Numbers: 12532528
Standard rotation, belt-driven mechanical water pump for the GM 4.3L V6 engine. Typically includes gaskets for installation.
