Ignition Control Module Guide for the 1997-2005 Chevrolet Blazer
Is your Blazer stalling or refusing to start? Your ignition control module could be the problem.
- A common sign of failure is the engine stalling when hot and not restarting until it cools down.
- Always apply new thermal paste between the module and its heat sink to prevent premature failure.
- Symptoms can mimic a bad distributor; inspect the cap and rotor for corrosion before replacing the ICM.
- Choose a quality brand like Delphi or Standard, as cheap modules are known for poor reliability.
Is Your Blazer's Ignition Module Failing?
The ignition control module (ICM) on the 4.3L V6 engine is a common failure point due to its location in a hot engine bay. Heat and vibration are its biggest enemies. When it starts to go bad, it can leave you stranded. The most common sign is the engine dying after it has warmed up, and then refusing to restart until it cools down completely.
Key Failure Symptoms:
- No-Start or Stalling: The engine cranks but won't start 🎬 Watch this video to troubleshoot a common no-start issue., or it stalls unexpectedly while driving, especially when hot.
- Rough Running and Misfires: You may feel a rough idle, hesitation when you accelerate, or a general loss of power. This can also cause the Check Engine Light to come on with a misfire code like P0300.
- Check Engine Light: A failing ICM can trigger the check engine light for ignition system faults.
- Poor Fuel Economy: When spark timing is off, your engine burns fuel less efficiently.
Could It Be Something Else?
Symptoms of a bad ICM can be very similar to other ignition problems. A General Motors Technical Service Bulletin (TSB 03-06-04-041) points out that corrosion inside the distributor can also cause a P0300 misfire code on the 4.3L engine. This happens when debris clogs the distributor's air vents, trapping moisture. Before replacing the ICM, it's wise to inspect the distributor cap, rotor, and spark plug wires 🎬 See how to replace the full ignition system on a 4.3L. for wear or corrosion.
Choosing the Right Aftermarket Ignition Module
For a vehicle like the 1997-2005 Blazer, a high-quality aftermarket part offers a great balance of reliability and value. Not all aftermarket brands are created equal, especially with electronic parts.
- Delphi: Delphi was an original equipment (OE) manufacturer for General Motors, meaning their parts are made to the same standards as the one your Blazer came with from the factory. Choosing Delphi is the closest you can get to buying an original part and is highly recommended for fit and long-term reliability.
- Standard Ignition (SMP): Standard is a trusted name in the aftermarket with a long history of producing reliable electronic components. It is a solid choice that meets or exceeds original specifications and is a dependable alternative to an OE part.
Cheaper, unbranded modules are known to fail quickly. Given the critical role of the ICM, it is best to invest in a quality part from a reputable brand like Delphi or Standard.
Pro Tip: Don't Forget Thermal Paste!
The ignition module creates a lot of heat. It must be mounted to a metal heat sink with a special thermal paste applied between them. This paste helps transfer heat away from the module. Almost all new modules come with a packet of this paste. Never install a new module without it, or it will overheat and fail in a very short time.
Cost of Replacing Your Blazer's Ignition Module
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Module | $132 - $139 |
| Shop Labor | $60 - $120 |
| Total Estimated Cost (At a Shop) | $192 - $259 |
Frequently Asked Questions
Is there a recall on the ignition module for my Blazer?
No, there are no specific recalls for the ignition control module on the 1997-2005 Chevrolet Blazer. There were large GM recalls for ignition switches on other models, but this is a different part and does not apply to the Blazer's ICM.
Can I replace the ignition module myself?

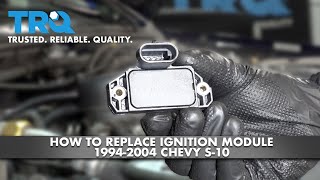

Yes, this is a very DIY-friendly job for someone with basic tools. The module is located on a bracket with the ignition coil on the passenger side of the engine. The process involves removing the air intake box for better access, unplugging the connector, and removing two small bolts. 🎬 Follow this step-by-step walkthrough to install your new module and coil. The whole job can usually be done in under an hour.
Where is the ignition module located on my 4.3L V6?
Look on the passenger side of the engine. You will see the ignition coil mounted to a metal bracket. The ignition control module is the flat, rectangular electronic part mounted right next to or under the coil on the same bracket.
Do I need to replace the ignition coil at the same time?
You don't have to, but it's often a good idea. The coil and ICM are located together and exposed to the same heat and vibration. If one has failed due to age, the other may not be far behind. Replacing them together can save you from doing the same job twice.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16132799 19352931
Mounts to ignition coil bracket; requires thermal grease for heat dissipation.
