Chevrolet Cavalier Accessory Drive Belt Guide (1997-2005)
Everything a Cavalier owner needs to know about choosing the right new aftermarket accessory drive belt.
- A failing belt tensioner is a common problem on Cavaliers and should be inspected or replaced with the belt.
- Verify your engine size (e.g., 2.2L) and if you have A/C to ensure you order the correct length belt.
- Symptoms include squealing noises and visible cracks; a complete failure will leave you stranded.
- Replacement is a DIY-friendly job that requires basic tools and about 30 minutes.
Is Your Cavalier's Accessory Belt Failing?
A failing accessory drive belt gives you warning signs before it breaks completely. Ignoring them can leave you stranded. Watch for these common symptoms.
| Symptom | What it Means |
|---|---|
| Squealing or Chirping Noises | This is the most common sign. The noise comes from the belt slipping on the pulleys because it's old, stretched, or glazed. The noise might get louder when you turn on the A/C or turn the steering wheel. A quick test is to spray a small amount of water on the belt's ribs while the engine is running; if the noise stops for a moment, the belt is likely the problem. | 🎬 Watch: How to diagnose and fix belt squealing noises.
| Visible Cracks and Wear | Look at the ribbed side of the belt. If you see multiple cracks, fraying edges, or chunks of rubber missing, it's time for a replacement. A general rule is that if you see more than three cracks in a one-inch section, the belt is at the end of its life. |
| Power Steering or A/C Issues | If your steering suddenly becomes very hard to turn, or your A/C stops blowing cold, the belt might be slipping badly or may have already broken. |
| Battery Light On / Overheating | If the belt snaps, the alternator will stop charging the battery, and a battery warning light will appear on your dashboard. If your Cavalier's water pump is driven by this belt, the engine will start to overheat very quickly. This is a critical failure. |
Choosing the Right Aftermarket Belt
For the 1997-2005 Cavalier, the original equipment (OEM) belt is made by ACDelco. However, many aftermarket brands offer excellent quality, often at a better price. The key is choosing a reputable brand. All the brands listed (ACDelco, Bando, Mitsuboshi) are considered quality options.
Pro Tip: The most common problem related to the belt is actually a failing belt tensioner. The tensioner is a spring-loaded pulley that keeps the belt tight. If it's worn out, it can be noisy or cause a new belt to jump off. If your belt has more than 70,000 miles on it, it's wise to replace the tensioner at the same time as the belt.
🎬 See this walkthrough for replacing both the belt and tensioner.Brand Quality Tiers

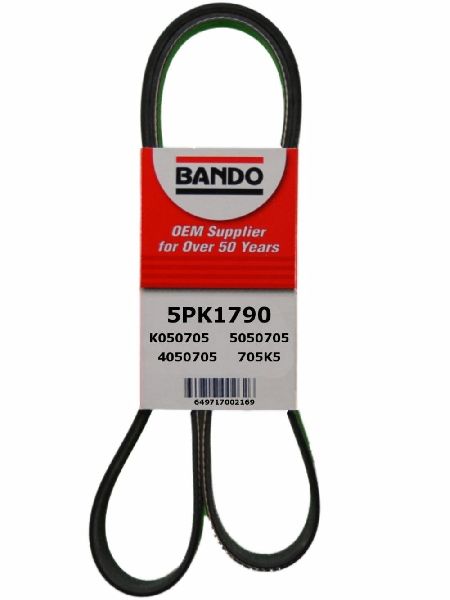

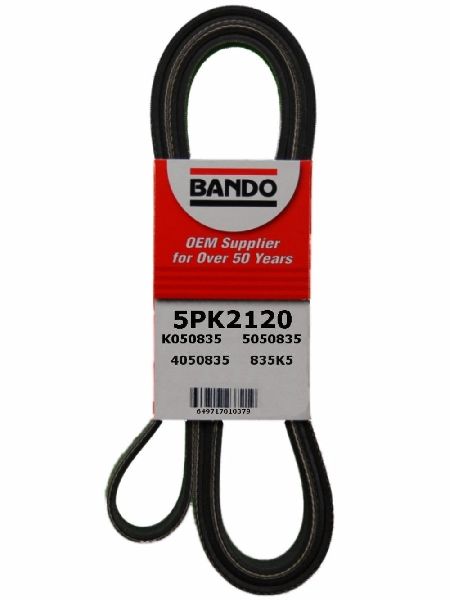

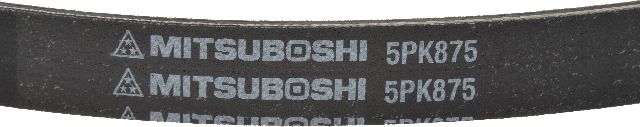

- Premium Aftermarket (ACDelco, Bando, Mitsuboshi): These brands are known for producing high-quality belts that meet or exceed OEM specifications. Bando and Mitsuboshi are major suppliers to Japanese automakers and are highly respected for their durability. ACDelco is GM's own parts brand, offering a direct replacement. You can't go wrong with any of these choices.
- Other Quality Brands (Gates, Continental): While not in the specified list, brands like Gates and Continental are also top-tier choices frequently recommended by mechanics for domestic vehicles like the Cavalier.
Common Ordering Mistake
The 1997-2005 Cavalier came with different engines (like the 2.2L and 2.4L) and with or without air conditioning. This changes the length of the belt required. Always verify your vehicle's specific engine and A/C option before ordering to ensure you get the correct part. The belt routing diagram is usually on a sticker under the hood.
Frequently Asked Questions
Is this a difficult part to replace myself?
No, for most DIYers with basic tools, this is a straightforward job. The main tool needed is a 15mm wrench or a 3/8-inch breaker bar to move the belt tensioner and release the belt. The most common challenge is the tight space. Some people find it easier to access the belt by removing the passenger-side inner fender liner.
🎬 Watch: A step-by-step guide to replacing your Cavalier's serpentine belt.What is a belt tensioner and should I replace it too?
The belt tensioner is a spring-loaded arm with a pulley that automatically keeps the belt tight. A failing tensioner is a very common issue on these Cavaliers and can cause noise or make the belt fall off. If you hear rattling from the belt area or see the tensioner pulley wobbling, it should be replaced. It is good practice to replace the tensioner with the belt, especially on a higher-mileage vehicle.
My new belt is squeaking. What did I do wrong?
If a new belt squeaks, the problem is likely not the belt itself. The most common causes are a weak or worn-out belt tensioner that isn't providing enough tension, or a misaligned or worn-out pulley on one of the accessories (alternator, power steering pump). Also, double-check that the belt is seated correctly in all the pulley grooves.
Does the accessory drive belt control the engine timing?
No. The accessory drive belt (serpentine belt) does not control engine timing on the Cavalier. These engines use an internal timing chain for that purpose. If the accessory belt breaks, it will not cause internal engine damage from valves hitting pistons.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12634320
Belt length and rib count vary based on engine (2.2L, 2.4L) and presence of air conditioning. Most are 5-rib or 6-rib EPDM rubber belts.
