1997-2005 Chevrolet Corvette Camshaft Position Sensor: A Complete Guide
Experiencing hard starts or a check engine light in your C5 Corvette? Your camshaft position sensor might be the culprit.
- On 1997-2004 Corvettes, the sensor is very difficult to access, requiring intake manifold removal.
- Symptoms often include a Check Engine Light (P0341, P0342, P0343), hard starting, and poor performance.
- Due to the high labor cost of replacement, choosing a high-quality aftermarket brand like Delphi or NGK is strongly recommended over budget options.
- Wiring issues can mimic sensor failure, so inspect the connector and harness for damage before replacing the part.
Understanding the Camshaft Position Sensor in Your C5 Corvette
The camshaft position sensor (CMP) is a small but vital electronic component in your 1997-2005 Corvette's engine. Its main job is to monitor the camshaft's rotational position and speed. It sends this data to the main computer, which then uses it to control fuel injector timing and spark plug firing sequence. Without an accurate signal from this sensor, the engine can't run efficiently, leading to a variety of noticeable problems.
Symptoms of a Failing Camshaft Position Sensor
A bad or failing camshaft position sensor can cause several issues, some of which can be intermittent. You might notice one or more of the following signs:
- Check Engine Light: This is the most common symptom. You'll likely see diagnostic trouble codes (DTCs) such as P0341, P0342, or P0343. 🎬 Watch: Understanding P0341 codes and how to fix them.
- Hard Starting: The engine may crank for a long time before it starts, or it might not start at all. This happens because the computer defaults to a backup strategy when it loses the cam signal, which is less efficient.
- Engine Stalling or Hesitation: The engine may stall unexpectedly, especially at idle or low speeds. You might also feel hesitation or stumbling during acceleration.
- Poor Performance and Fuel Economy: Without proper timing, your Corvette will lose power and burn more fuel than usual. The engine may run rich and you might even experience backfiring.
- Rough Idle: An inconsistent signal can cause the engine's idle to become rough or unstable.
A Note on Replacement Difficulty

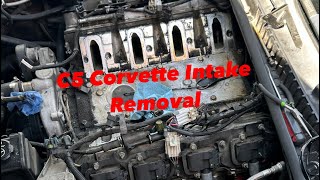

On the 1997-2004 C5 Corvette, the camshaft position sensor is located at the very back of the engine, on top of the block, underneath the intake manifold. Replacing it is a labor-intensive job that requires removing the intake manifold. 🎬 See this walkthrough on removing the LS1 intake and sensor. This is not a simple task for a beginner. The job is significantly easier on 2005 models, where the sensor was moved to the front timing cover.
Choosing the Right Aftermarket Sensor
When it comes to electronic sensors, quality matters. While OEM is always an option, several aftermarket brands offer reliable alternatives. Here’s a breakdown of common choices:
- Top Tier (OEM-Quality): Brands like Delphi are often the original equipment manufacturer for GM and are highly recommended for their reliability. Standard Ignition (SMP) and NGK/NTK are also known for producing high-quality sensors that meet or exceed OEM specifications.
- Mid-Tier (Reliable Aftermarket): Beck Arnley often sources parts from the original manufacturers and is a solid choice. Dorman and Walker Products are popular aftermarket brands, but quality can sometimes be inconsistent with critical sensors.
- Economy Tier (Budget-Friendly): Brands like URO Parts, Prenco, and other lower-priced options are available. While the low cost is tempting, these sensors have a higher risk of premature failure, which could mean doing the difficult replacement job all over again. For a part this hard to access, it's wise to invest in a better-quality brand.
Pro Tip: Given the high labor cost or significant time investment to replace this sensor, spending a little extra on a quality brand like Delphi or NGK is highly recommended. You don't want to replace a part this difficult to access twice.
Known Issues, Recalls, and TSBs
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) for the camshaft position sensor on the 1997-2005 Corvette. Most issues are related to normal wear and tear or potential wiring problems. Often, a P0342 code can be caused by a bad connection or damaged wiring harness rather than the sensor itself, so it's important to inspect the connector and wiring during replacement.
Estimated Replacement Costs
The cost can vary significantly based on who does the work. The part itself is relatively inexpensive, but the labor to install it is where the cost adds up due to its location.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $27 - $179 |
| New OEM Part | $70 - $130 |
| Shop Labor | $300 - $500 |
| Total Professional Replacement | $350 - $680 |
Frequently Asked Questions
Where is the camshaft position sensor located on a C5 Corvette?
For 1997-2004 models, it is located at the top rear of the engine block, behind the intake manifold. You must remove the intake manifold to access it. For 2005 models with the LS2 engine, the sensor was moved to the front timing cover, near the harmonic balancer.
🎬 Watch: How to swap the front-mounted LS2 cam sensor.Can I replace this sensor myself?
If you have a 1997-2004 model, this is a difficult job for a DIYer. It requires removing the intake manifold, which involves disconnecting fuel lines, various electrical connectors, and vacuum hoses. It is considered a 2-4 hour job for an experienced mechanic. If you are not comfortable with a job of this complexity, it is best left to a professional.
Is it okay to use a cheap aftermarket sensor?
While it might save you money initially, it's not recommended for this specific part. The replacement is very labor-intensive. A cheap sensor failing prematurely would require you to pay for the labor all over again. Investing in a quality brand like Delphi, NGK, or Standard Ignition is a smart choice.
What's the difference between a camshaft and crankshaft sensor?
Both sensors work together. The crankshaft sensor tracks the position and speed of the crankshaft (and pistons). The camshaft sensor tracks the position of the camshaft (and valves). The computer compares both signals to determine which cylinder is on its power stroke versus its exhaust stroke, which is essential for sequential fuel injection and spark timing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12561211 12591720 19420911 12585545
3-pin connector, Hall Effect sensor type. Located at the rear of the engine block for 1997-2004 models and on the front timing cover for 2005 models.
