Engine Timing Cover Gasket Guide for 1997-2005 Chevrolet Corvette (C5)
Stop that frustrating oil leak at the front of your LS1 or LS6 engine with the right set of gaskets.
- The primary symptom of failure is an oil leak at the front of the engine, behind the main pulley.
- High-quality aftermarket brands like Fel-Pro and Cometic are excellent choices for this repair.
- Replacement is a labor-intensive job; always replace the front crank seal and water pump gaskets at the same time.
- Proper alignment of the new cover and seal is critical to prevent immediate leaks.
Is Your Corvette's Timing Cover Gasket Leaking?
An oil leak from the front of your C5 Corvette's engine is a common issue, often pointing to a bad timing cover gasket. Over time, the original gasket can become hard and brittle from heat and age, losing its ability to seal properly. The most obvious sign is engine oil dripping from the area behind the main crankshaft pulley, often blown back across the oil pan and underside of the car while driving. You might notice a low oil level on your dipstick or even the low oil warning light if the leak is severe.
Don't Ignore a Leak
While a small leak might seem like just an annoyance, it can lead to serious problems. Low engine oil can cause accelerated wear and major internal engine damage. It's best to address the leak as soon as you confirm it.
Choosing the Right Aftermarket Gasket Set
For the LS1 and LS6 engines in the 1997-2005 Corvette, the aftermarket offers excellent, reliable options that often meet or exceed original equipment (OEM) quality. The key is choosing a reputable brand. It is not recommended to reuse an old timing cover gasket.
Brand Quality Tiers
- Top-Tier (Excellent Quality): Brands like Fel-Pro and Cometic are highly regarded in the performance and repair communities. Fel-Pro is known for user-friendly designs that provide excellent, leak-proof performance, often being more forgiving on surfaces that aren't perfectly flat. Cometic is a favorite among engine builders, especially for high-performance applications.
- OEM-Equivalent (Good Quality): Brands like Victor Reinz and Elring are major OEM suppliers and produce high-quality gaskets. Many professional mechanics trust these brands for reliable, stock-like sealing and durability. There is general agreement that both Fel-Pro and Victor Reinz are quality, reputable brands.
Pro Tip: Get the Whole Kit
Make sure the set you buy includes the main timing cover gasket, the front crankshaft seal, and new water pump gaskets. Since you have to remove the water pump and harmonic balancer to get to the timing cover, it's essential to replace all the related seals and gaskets at the same time to prevent future leaks.
Cost of Replacing a Timing Cover Gasket Set

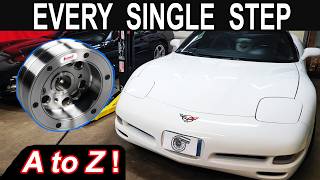

The cost involves the parts themselves and the significant labor required for the job. 🎬 Watch this step-by-step walkthrough of the entire disassembly process. The majority of the expense comes from labor due to the number of components that must be removed to access the cover.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $61.98 - $85.03 |
| New OEM Gasket Set | $164 - $171 |
| Shop Labor | $400 - $1,000+ |
| Total Professional Replacement | $460 - $2,397+ |
Note: Labor costs can vary widely based on shop rates and location. Some estimates for this specific job on a Corvette are significantly higher due to the complexity.
Frequently Asked Questions
Is this a good DIY project?

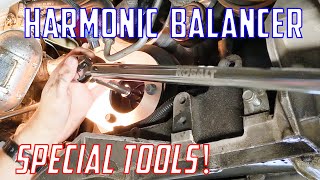

This is a moderately difficult job. It requires special tools, like a harmonic balancer puller, 🎬 See the specialty tools you will need for this repair. and careful work to align the new cover and seal correctly to prevent leaks. If you are an experienced home mechanic with the right tools, it is feasible. For beginners, it's best left to a professional.
Are there any recalls for this issue?
No, there are no specific recalls or technical service bulletins (TSBs) from GM or the NHTSA for leaking timing cover gaskets on the 1997-2005 Corvette. Leaks are typically considered a normal wear-and-tear issue.
What else should I replace at the same time?
Since you'll have the front of the engine apart, it's a perfect time to inspect and consider replacing the water pump, harmonic balancer (especially if the old one has a groove worn into it by the old seal), and the timing chain and gears if your engine has high mileage. At a minimum, you must replace the water pump gaskets and the front crank seal.
What's the most common mistake when doing this job?
The most common mistake is improper alignment of the timing cover and front seal, which will cause a leak almost immediately. It's critical to use an alignment tool or follow the service manual procedure carefully to center the cover and seal on the crankshaft before tightening the bolts. Another common leak point is where the timing cover meets the oil pan; this area requires a small dab of RTV sealant.

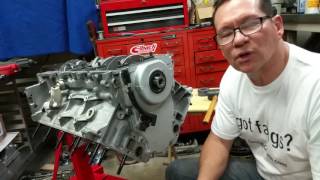

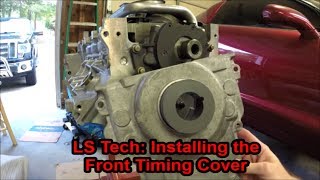

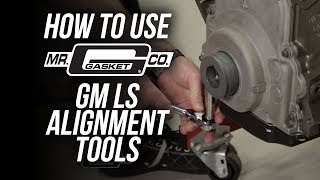

🎬 Watch how to use an alignment tool for a leak-free seal.Helpful Videos
Technical Specifications
OEM Part Numbers: 12633904 12735382 12585673 12630223
Fits 5.7L LS1 and LS6 engines. Set typically includes timing cover gasket, front crankshaft seal, and two water pump gaskets.
