1997-2005 Chevrolet Malibu Vehicle Speed Sensor Guide
Solve your Malibu's erratic speedometer and shifting problems by understanding and replacing the vehicle speed sensor.
- A bad VSS on this Malibu generation primarily causes an erratic speedometer and poor automatic transmission shifting.
- A Check Engine Light with code P0502 is a strong indicator of a failed VSS or wiring issue.
- Replacement is a simple, low-cost DIY job located on the transmission housing.
- Brands like Delphi offer OEM quality, while Walker Products provides a reliable, budget-friendly alternative.
Is Your Malibu's Speedometer or Shifting Acting Up?
If you own a 1997-2005 Chevrolet Malibu, you might experience issues with how the transmission shifts or what the speedometer reads. These are classic signs that your Vehicle Speed Sensor (VSS) is failing. This sensor is a common failure point, but it is simple and affordable to replace. Ignoring it can lead to poor drivability, incorrect gear shifting, and a non-working speedometer.
Symptoms of a Bad Vehicle Speed Sensor
When the VSS starts to go bad, your Malibu will give you clear signs. The most common issues involve the transmission and the dashboard.
- Harsh or Incorrect Shifting: This is the most noticeable symptom. The transmission may shift at the wrong times, slam into gear, or feel like it's slipping.
- Erratic Speedometer: The speedometer needle might jump around, read 0 mph while you're moving, or show a speed that is clearly wrong.
- Cruise Control Not Working: Because the cruise control system needs to know the vehicle's speed, it will stop working if the VSS fails.
- Check Engine Light: A failing VSS will almost always trigger the check engine light. You may find codes like P0502 stored in the computer.
Known Issues for This Malibu
While no specific recalls exist for the transmission-mounted VSS on the 1997-2005 Malibu, some 2004-2005 models were recalled for an issue with a rear wheel speed sensor that could cause unwanted ABS activation. Additionally, owners in forums frequently report the shifting and speedometer problems that point directly to a bad VSS. Sometimes, the problem isn't the sensor itself but a broken or corroded wire leading to it.
Choosing the Right Aftermarket VSS Brand
For this repair, you don't need to buy the most expensive part to get a reliable fix. Both OEM and quality aftermarket parts are very affordable. The key is choosing a brand with a good reputation.
- Tier 1 (OEM Equivalent): Delphi
Delphi is a well-known Original Equipment (OE) supplier for General Motors. This means their parts are often the same as the ones that came in your Malibu from the factory. Choosing a Delphi sensor means you are getting a part that is tested to OE standards for fit and performance. It is a top-quality choice for a guaranteed fix. - Tier 2 (Quality Aftermarket): Walker Products
Walker Products is a respected aftermarket brand that produces reliable sensors. Their parts are made to meet or exceed OEM specifications and are a dependable, budget-friendly option. For a part like the VSS, a Walker sensor is a solid choice that will restore function without the higher cost of a dealer part.
Cost of Replacing the Vehicle Speed Sensor
Replacing the VSS is one of the more affordable repairs you can make. The part itself is inexpensive, and if you have it done at a shop, the labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $22 - $55 |
| New Aftermarket Part | $23 - $33 |
| Shop Labor | $60 - $135 |
| Total Professional Repair | $85 - $190 |
Frequently Asked Questions (FAQ)
Where is the VSS located on a 1997-2005 Malibu?
The vehicle speed sensor is located on the automatic transaxle (transmission). You will need to get under the car to see it. It is typically found near where the passenger-side axle shaft enters the transmission. It is held in by a single bolt.
Can I replace the VSS myself?
Yes, this is a very DIY-friendly job for most people. The process involves safely raising the front of the vehicle, locating the sensor on the transmission, disconnecting the electrical connector, removing one bolt, and swapping the old sensor for the new one. The entire job usually takes less than an hour.
What happens if I don't replace a bad VSS?
You can continue to drive the car, but it's not recommended for long. You will have an unreliable speedometer, which is a safety risk. More importantly, the constant harsh and incorrect shifting can cause extra wear and tear on your transmission over time.
Is an aftermarket VSS okay for my Malibu?
Yes, a quality aftermarket sensor from a brand like Delphi or Walker Products is a perfectly acceptable and reliable choice for this repair. Since Delphi is an OE supplier, their parts are often identical to the original.
Technical Specifications
OEM Part Numbers: 24207507 24238267

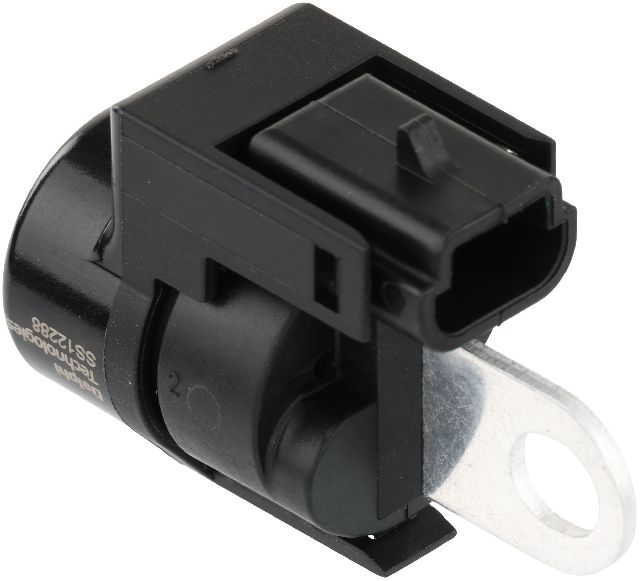

Typically a 2-pin magnetic sensor that mounts to the automatic transmission housing with a single bolt.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
