Choosing the Best Spark Plugs for Your 1997-2005 Chevrolet Venture
Get your Venture's 3.4L engine running smoothly by picking the right spark plugs for the job.
- Accessing the three rear spark plugs is very difficult and requires tilting the engine forward for clearance.
- For best results and longevity, use premium iridium spark plugs from ACDelco or NGK.
- Avoid using Bosch +2 or +4 multi-electrode spark plugs, as they are known to cause idle problems in this engine.
- Always replace spark plugs as a full set of six and consider replacing the spark plug wires at the same time.
Is Your Venture Trying to Tell You Something?
Worn-out spark plugs can cause a number of noticeable issues in your van. Because they are a normal wear-and-tear item, you will eventually need to replace them. If you're experiencing any of these symptoms, your spark plugs could be the culprit.
- Rough Idling: The engine shakes or vibrates more than usual when you're stopped at a light or in park.
- Poor Acceleration: The van feels sluggish or slow to respond when you press the gas pedal.
- Reduced Fuel Economy: You find yourself filling up the gas tank more often than you used to.
- Engine Misfires: You might feel a hesitation or stumble during acceleration. This can trigger a flashing Check Engine Light, which is a sign of a severe misfire that can damage other components.
- Trouble Starting: The engine takes longer than normal to crank and start.
- Check Engine Light: A steady Check Engine Light with codes like P0300 (Random/Multiple Cylinder Misfire) or P0301 through P0306 (indicating a misfire in a specific cylinder) often points to ignition system problems, including bad spark plugs. 🎬 Watch: Diagnosing a P0300 misfire code on your Venture
A Word of Warning: The Rear Spark Plugs

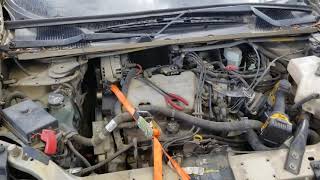

Changing the spark plugs on the 3.4L V6 in the Venture is not a simple job. The front three plugs are easy to access. However, the rear three plugs are located against the firewall with very little space to work. The most common and effective method used by mechanics involves removing the upper engine mounts (often called "dog bones") and using a ratchet strap to carefully tilt the engine forward. This creates the necessary clearance to reach the rear plugs and wires from the top. Attempting this job without tilting the engine is extremely difficult and not recommended.
🎬 See how to tilt the engine for rear plug accessChoosing the Right Aftermarket Spark Plugs
Not all spark plugs are created equal. For the Chevrolet Venture's 3.4L engine, sticking with proven technology is your best bet. Here’s a breakdown of your options.
Tier 1: OEM & Premium Iridium
These are the best choices for longevity and performance that meets or exceeds the original factory standard.
- ACDelco Iridium: As the original equipment (OE) supplier for General Motors, ACDelco is the benchmark. Their iridium plugs, like the popular 41-101, offer excellent durability and a strong spark. Interestingly, many ACDelco iridium plugs are manufactured by NGK.
- NGK Iridium (IX or Laser): NGK is consistently recommended by Venture owners and mechanics as a top-tier alternative to ACDelco. They provide a smooth idle and long service life, making them an excellent investment, especially given the difficulty of the replacement job.
Premium iridium plugs from ACDelco and NGK come pre-gapped from the factory. Do not try to adjust the gap, as you can easily damage the fine iridium tip.
Tier 2: Quality Platinum & Standard Aftermarket
These brands offer a good balance of performance and price, though they may not last as long as premium iridium plugs.
- Denso: A well-respected Japanese brand that makes quality plugs. They are a solid choice if premium options aren't available.
- Autolite: A common and reliable aftermarket brand that offers platinum and iridium options that perform well in the Venture's engine.
- Bosch (Standard Platinum): Standard Bosch platinum plugs are a perfectly fine choice for this engine. However, be careful not to confuse them with their multi-electrode designs.
Tier 3: Use With Caution
- Bosch (+2 and +4 Plugs): Many owners of vehicles with the GM 3.4L engine have reported issues like rough idling after installing Bosch +2 or +4 spark plugs. It is generally recommended to avoid these specific plug types for your Venture.
- Basic Copper Plugs (Champion, etc.): While inexpensive, copper plugs have a much shorter lifespan than platinum or iridium plugs. Given the high labor involved in changing the rear plugs, using a short-life plug is not cost-effective in the long run.
| Plug Type | Typical Price Per Plug | Notes |
|---|---|---|
| Premium Iridium (ACDelco, NGK) | $9 - $21 | Best performance and longest life. Recommended for the difficult installation. |
| Platinum (Autolite, Denso, Bosch) | $5 - $10 | Good performance with a moderate lifespan. |
| Basic Copper (Champion, etc.) | $3 - $5 | Shortest lifespan. Not recommended due to high labor cost of replacement. |
Frequently Asked Questions
How often do the spark plugs need to be changed?
The original platinum plugs were designed to last up to 100,000 miles, but performance can degrade before then. If you install new iridium plugs, you can expect a similar 60,000 to 100,000-mile lifespan. If using standard platinum, consider checking them around 60,000 miles. For copper plugs, the interval is much shorter, around 30,000 miles.
What is the correct spark plug gap for a Chevy Venture?
The correct spark plug gap for the 3.4L V6 engine is 0.060 inches. While you should verify this for any plug you install, remember that premium ACDelco and NGK Iridium plugs are pre-gapped and should not be adjusted.
Can I change just one bad spark plug?
It is highly recommended to replace all six spark plugs at the same time. Spark plugs wear at a similar rate, so if one has failed, the others are likely not far behind. Replacing them all at once ensures a balanced engine and saves you from having to do the difficult rear plug replacement multiple times.
Should I replace the spark plug wires at the same time?
Yes. Given the high mileage on these vans and the difficulty of accessing the rear bank, it is an excellent idea to replace the spark plug wires while you are changing the plugs. Worn wires can cause misfires just like worn plugs. You will already have them disconnected, so doing both jobs at once is efficient.
🎬 Watch this walkthrough for replacing both plugs and wiresAre there any recalls for the spark plugs on this van?
No, there are no specific recalls or technical service bulletins (TSBs) from NHTSA for spark plug failure on the 1997-2005 Chevrolet Venture. Spark plugs are considered a standard maintenance item.
Helpful Videos
Technical Specifications
OEM Part Numbers: 41-101 12568387 41-921 41-962
Engine: 3.4L V6 (LA1). Spark Plug Gap: 0.060 inches (1.5mm). Hex Size: 5/8 inch.
