Chevrolet Venture Throttle Position Sensor (TPS) Guide: 1997-2005
Fix stalling, poor acceleration, and rough idling in your Venture by understanding and replacing a faulty throttle position sensor.
- A failing TPS in a Venture causes hesitation, stalling, and hard shifting.
- Replacement is a simple DIY job requiring a T20 Torx bit, taking less than an hour.
- For best results, choose an OEM-equivalent brand like Delphi or a reputable aftermarket brand like Standard Ignition or Walker Products.
- No specific recalls exist for the TPS, but symptoms are well-documented for this engine.
Symptoms of a Failing Throttle Position Sensor
When the TPS in your Venture starts to fail, it can cause a range of noticeable problems. Because the sensor's signal is critical for fuel management and transmission control, a bad sensor can make your van difficult or unsafe to drive.
- Check Engine Light: This is often the first sign. You may see codes like P0121, P0122, or P2135.
- Poor Acceleration or Hesitation: The van may feel sluggish, stumble, or not respond when you press the gas pedal.
- Erratic Idling and Stalling: The engine might idle roughly, surge, or stall completely when you come to a stop.
- Hard or Incorrect Shifting: The automatic transmission may shift gears harshly, too early, or too late.
- Reduced Engine Power: In some cases, the vehicle's computer may enter a "limp mode" to prevent damage, severely limiting speed. 🎬 Watch: A detailed breakdown of common TPS symptoms and fixes.
Choosing the Right Aftermarket TPS
When replacing the TPS on your Venture, you don't have to buy an expensive OEM part from the dealer. Several reputable aftermarket brands offer quality replacements that meet or exceed original specifications. Here’s a breakdown of available brands to help you choose.
Pro Tip: Since Delphi was a major original equipment manufacturer for GM, choosing a Delphi sensor is often the closest you can get to the factory part's quality and reliability.
- Top Tier (OEM-Equivalent): Brands like Delphi and ACDelco Professional are excellent choices. Delphi is a well-regarded OE supplier, and their parts are known for reliability. NGK and Standard Motor Products (Standard Ignition) also have a strong reputation for producing quality sensors that are tested to match OE performance.
- Quality Aftermarket: Dorman is a widely known aftermarket brand that sometimes improves on original designs, though quality can sometimes be inconsistent. Walker Products is another established brand that manufactures sensors to meet OE standards and offers a wide range of coverage.
- Budget-Friendly: Brands like True Tech, Global Parts, Motorad, and Replacement offer more affordable options. While they can provide a functional fix, their long-term durability and precision may not match the top-tier brands.
Installation and Known Issues
Replacing the TPS on a 1997-2005 Venture is a straightforward job that most DIYers can handle. The sensor is located on the side of the throttle body and is held in place by two T20 Torx screws. The most difficult part is often accessing the bottom screw due to tight space. 🎬 See this walkthrough for removing the sensor on a GM 3.4L. No recalls were found specifically for the throttle position sensor on this vehicle. However, GM did issue Technical Service Bulletins (TSBs) for similar models with related error codes like P2135, which points to TPS issues.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $25 - $72 |
| Shop Labor | $61 - $95 |
| Total Estimated Cost (At a Shop) | $86 - $167 |
Frequently Asked Questions (FAQ)
Can I replace the throttle position sensor myself?
Yes, this is a DIY-friendly repair. You will need basic tools like a ratchet and a T20 Torx bit. The sensor is on the throttle body, secured by two screws. After disconnecting the electrical connector, you can unbolt the old sensor and install the new one.
Does a new TPS need to be calibrated or reset?
For most GM vehicles of this era, a specific manual relearn procedure is recommended after replacing the TPS to ensure the computer recognizes the new sensor's idle position. A common procedure involves starting the engine and letting it idle for 3 minutes, turning it off for 1 minute, and then idling for another 3 minutes. In many cases, the computer will adjust on its own after a short period of normal driving.
🎬 Watch: How to manually perform a GM throttle relearn procedure.What happens if I don't replace a bad TPS?
Ignoring a failing TPS can lead to worsening symptoms like stalling in traffic, very poor fuel economy, and potential damage to the transmission from constant hard shifting. It can make the vehicle unreliable and unsafe to drive.
Are all 1997-2005 Venture TPS sensors the same?
Yes, the throttle position sensor for the 3.4L V6 engine used in the Chevrolet Venture from 1997 to 2005 is generally the same part across these model years. However, it is always best to confirm the fitment for your specific vehicle before purchasing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17113578 17123852 19259452

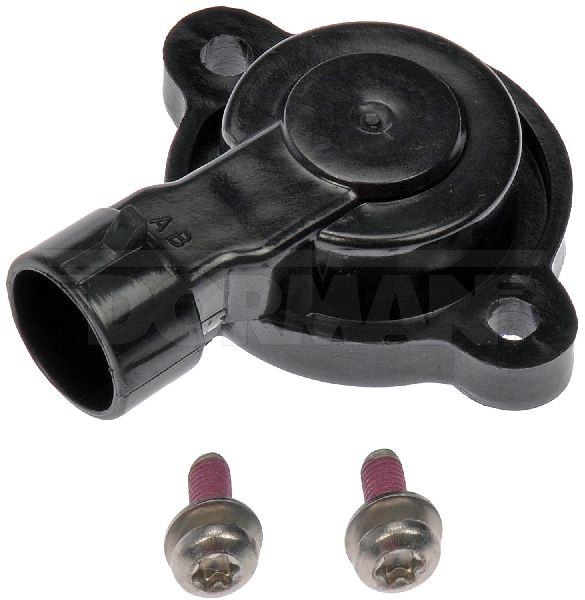

The sensor is a three-pin potentiometer style sensor mounted to the throttle body, held by two T20 Torx screws. It operates on a 5-volt reference signal from the ECU.
