Ford Expedition 1997-2005 Engine Intake Manifold Gasket Set: A Complete Guide
Address coolant leaks and poor engine performance by understanding this common Ford Expedition issue.
- The plastic OEM intake manifold is a common failure point; inspect it for cracks and consider replacing it with the gaskets.
- A coolant leak at the front of the engine that pools in the valley is a classic sign of a failed intake manifold or gasket.
- Vacuum leaks from bad gaskets are common and will trigger lean codes like P0171 and P0174.
- While replacing the gaskets, it's a cost-effective time to also replace hard-to-reach items like spark plugs and the thermostat.
The Common Failure on Ford Triton Engines
If you own a 1997-2005 Expedition with a 4.6L or 5.4L V8, you should know about a common problem. The original intake manifolds were made of plastic. Over time, the plastic can crack, especially around the front coolant crossover passage. This often causes the intake manifold gaskets to fail, leading to coolant and vacuum leaks. Because of this, when the gasket fails, it is highly recommended to inspect the intake manifold itself for cracks or warping. Many owners choose to replace the entire manifold with an improved aftermarket version at the same time they replace the gaskets.
Symptoms of a Bad Intake Manifold Gasket
A failing gasket can cause several noticeable problems. You might see coolant leaking from the front of the engine, often pooling in the valley underneath the intake manifold. This can also lead to the engine overheating. Another common sign is a rough idle, poor acceleration, and your Check Engine Light coming on. This is often caused by a vacuum leak from the bad gasket, which can trigger lean condition codes like P0171 and P0174. In severe cases, coolant can leak into the spark plug wells, causing engine misfires.
🎬 Watch: How to diagnose a leaking intake manifoldWhy You Shouldn't Ignore It
Driving with a leaking intake manifold gasket is not recommended. A coolant leak can lead to engine overheating, which may cause severe and expensive damage like a warped cylinder head or a blown head gasket. A vacuum leak forces your engine to run lean, which can harm internal components over time.
Choosing the Right Aftermarket Gasket Set
When you're shopping for a replacement, you'll find several aftermarket brands. The quality of these gaskets is crucial for a long-lasting repair, especially given the known issues with the original manifold design.
- Good: Brands like Apex offer a cost-effective solution that meets basic requirements. These are suitable for a budget repair, but may not have the advanced features of premium brands.
- Better: Dorman is a well-known aftermarket brand that often redesigns parts to fix common factory flaws. Their gasket sets are a popular choice and are often paired with their replacement intake manifolds.
- Best: Brands like Victor Reinz and Cometic Gasket are often considered OE-quality or better. They use high-quality materials, like steel carriers and premium rubber, that are designed to withstand modern coolants and high temperatures better than the original parts. Many professional mechanics prefer these premium brands for their durability and reliable seal.
Pro Tip: While the intake manifold is off, it's the perfect time to address other maintenance items. Consider replacing the spark plugs, ignition coils, and thermostat, as they are much easier to access during this job.
Cost of Replacing the Intake Manifold Gasket Set
| Option | Estimated Cost |
|---|---|
| DIY (Aftermarket Part Only) | $38 - $152 |
| Professional Installation (Parts & Labor) | $970 - $1,590 |
Note: Costs are estimates and can vary based on your location and the specific parts chosen. Professional installation costs often include replacing the entire intake manifold, not just the gaskets.
Frequently Asked Questions
Do I have to replace the whole intake manifold too?
Not always, but it's highly recommended. The original plastic manifolds are prone to cracking and warping. If you replace only the gasket on a damaged manifold, the new gasket will likely fail again quickly. An aftermarket manifold with a metal coolant crossover is a common and recommended upgrade.
Is this a difficult job to do myself?
For a DIY mechanic, this job is moderately difficult and time-consuming. It requires draining the coolant, removing the fuel rail, alternator, and numerous hoses and electrical connectors. It's achievable with the right tools and patience, but a beginner may find it challenging. 🎬 See these expert tips for removing the intake manifold The estimated time for a professional is around 4-6 hours.
🎬 Watch this step-by-step guide to replacing the manifoldAre there any recalls for this problem?
No, there are no specific recalls from Ford or the NHTSA for the intake manifold gasket or the manifold itself on the 1997-2005 Expedition. The issue is considered a common failure but not a safety recall. There was a Technical Service Bulletin (TSB) for similar models that identified vacuum leaks from the intake gaskets as a cause for lean codes (P0171, P0174).
What kind of coolant should I use after the repair?
Always check your owner's manual for the specific coolant type. For these model years, Ford typically specified a green conventional coolant. However, if you are replacing components, it's a good time to flush the system and use a modern, high-quality coolant that is compatible with the materials in your new gaskets and manifold.

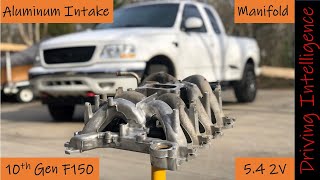

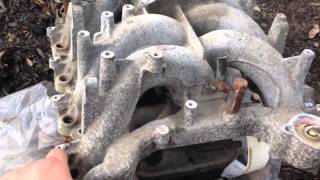

Helpful Videos
Technical Specifications
OEM Part Numbers: 2L1Z-9424-AA
Fits 1997-2005 Ford Expedition with 4.6L or 5.4L V8 engines. Gasket sets are designed to seal both coolant and air passages between the intake manifold and cylinder heads.
