Ford Expedition Engine Valve Cover Gasket Set Guide (1997-2005)
Stop that burning oil smell and keep your Expedition's engine running strong with the right valve cover gaskets.
- A burning oil smell is the #1 symptom of a failing valve cover gasket on this Expedition.
- Always replace gaskets as a set, including the spark plug tube seals, to prevent future misfires.
- While you're doing the job, it's the perfect time to inspect and likely replace your spark plugs and ignition coil boots.
- Using a quality aftermarket brand like Victor Reinz or Cometic can provide a reliable, long-lasting seal.
Is Your Expedition's Valve Cover Gasket Failing?
The gaskets on your Triton V8 are made of rubber and live in a very hot environment. Over many years and miles, this heat makes the rubber hard and brittle, causing it to crack and leak. This is a common issue on high-mileage 1997-2005 Expeditions.
Key Symptoms of a Leak:
- Burning Oil Smell: This is the most obvious sign. Oil drips from the leaking gasket onto the hot exhaust manifold below, creating a distinct burning smell that you may notice inside the cabin, especially when stopped.
- Visible Oil and Grime: Look at the sides of your engine, just below the big plastic engine cover. If you see wet, dark patches of oil and caked-on dirt, your gaskets are likely leaking.
- Smoke from Engine Bay: A more significant leak can produce a light smoke from under the hood as the oil burns off the hot engine parts.
- Rough Idle and Misfires: If the spark plug tube seals fail, oil will fill up the tubes where your spark plugs and ignition coils sit. This oil can ruin the ignition coils and cause your engine to run rough, hesitate, or misfire, which may turn on your Check Engine Light. 🎬 Watch: Why oil in spark plug wells causes engine misfires.
Choosing the Right Aftermarket Gasket Set
For a job like this, you don't necessarily need to go to the dealer. High-quality aftermarket gaskets often meet or exceed the quality of the original parts, especially since gasket technology has improved. The key is to choose a reputable brand. Your gasket set should always include both the main valve cover gaskets and the spark plug tube seals.
Aftermarket Brand Tiers
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| OEM-Grade / Premium Aftermarket | Victor Gaskets (Victor Reinz), Cometic Gasket | Victor Reinz is a well-respected brand that is an original equipment supplier for many European cars and is known for soft, pliable rubber that seals well. Cometic specializes in high-performance gaskets, often using advanced materials that offer superior durability, which can be a great long-term solution. |
| Standard Aftermarket | Reinz, Apex | These brands offer a good balance of quality and value. Reinz (part of Victor Reinz/Dana) provides reliable, quality gaskets. Apex is a known aftermarket brand that provides a dependable seal for daily driving needs and is often a cost-effective choice. |
Common Ordering Mistake
The 1997-2005 Ford Expedition primarily used the 4.6L and 5.4L 2-valve Triton V8 engines. Ensure the gasket set you order is specified for your exact engine. While many kits fit a wide range of these years, always double-check compatibility before purchasing.
Replacement Cost
Replacing valve cover gaskets is more time-consuming than difficult. The passenger side is known to be tight on space, making it more challenging than the driver's side.
🎬 See this walkthrough for replacing gaskets on the 5.4L engine.| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $39 - $101 |
| New OEM Gasket Set | $70 - $120 |
| Shop Labor | $290 - $430 |
| Total Professional Replacement | $371 - $507 |
Frequently Asked Questions
Do I need to use RTV sealant with the new gaskets?
Yes, a small dab of black RTV silicone sealant is required at the points where the engine timing cover meets the cylinder head. This creates a seal at the sharp corners to prevent leaks. Do not apply sealant around the entire gasket.
Should I replace spark plugs and ignition coils at the same time?
It's a great idea. You have to remove the ignition coils to get the valve covers off anyway. If you find oil in the spark plug wells, you should replace the spark plugs and the ignition coil boots at a minimum. If a coil is soaked in oil, it's best to replace it to prevent future misfires.
Are there any recalls for this issue?
No, there are no specific recalls from Ford or the NHTSA for leaking valve cover gaskets on the 1997-2005 Expedition. This is considered a normal wear-and-tear maintenance item.
Is this a DIY job?
If you are comfortable working on engines, this is a manageable DIY project that can save you hundreds in labor. It requires basic hand tools, patience, and about 3-5 hours. The main challenges are disconnecting wiring and hoses and accessing the bolts on the passenger side.

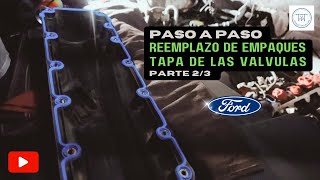

🎬 Watch: A step-by-step DIY guide to replacing your valve gaskets.Helpful Videos
Technical Specifications
OEM Part Numbers: VS50481R VS50275
Fits 4.6L and 5.4L 2-Valve Triton V8 engines. Set includes two valve cover gaskets and sixteen spark plug tube seals (grommets).
