A Ford Fiesta Owner's Guide to the 1997-2005 Windshield Washer Pump
Don't let a faulty pump blur your view; here's how to diagnose and replace the washer pump on your Fiesta.
- The most common problem is a clogged pump filter, which can be cleaned to restore function.
- Replacement is a simple DIY job, typically accessed through the front wheel well.
- A single, dual-action pump operates both front and rear washers.
- Quality aftermarket brands like Hella and Trico are cost-effective and reliable alternatives to OEM parts.
Is Your Windshield Washer Pump Failing?
A non-working windshield washer is more than an annoyance; it can be a safety hazard in bad weather. For 1997-2005 Ford Fiesta models, the cause is often simple. Before you buy a new part, it's worth checking a few things first.
Common Symptoms of a Bad Washer Pump
- No Sound, No Spray: If you activate the washer and hear nothing from the front of the car, the pump motor may have failed or is not receiving power. Always check the fuse first before deciding to replace the pump.
- Motor Hums, But No Fluid Sprays: Hearing the pump motor whirring without any fluid coming out is a very common symptom. This often points to a clog rather than a failed pump. The small filter at the base of the pump can get blocked with slime and debris from the washer fluid.
- Weak or Inconsistent Spray: If the spray is weak, it could be a sign of a dying pump struggling to create enough pressure, or it could be a partial clog in the filter or the washer jets themselves. 🎬 Learn how to clean and adjust your washer nozzles.
- Only Front or Rear Washer Works: Since one pump often does both jobs by reversing polarity, a failure in only one direction could point to an issue with the pump's internal valve or the control switch on the steering column.
Pro Tip: Clean Before You Replace. The most common issue on these Fiestas is a clogged pump filter. Before spending money on a new pump, try to access the old one and clean its filter screen. You might fix the problem for free.
Choosing the Right Aftermarket Pump
For a part like the windshield washer pump, you don't necessarily need to buy an expensive Original Equipment (OEM) part from the dealer. High-quality aftermarket brands offer reliable performance at a much lower cost. For the 1997-2005 Fiesta, these pumps are a straightforward and effective repair.
- Hella: A well-known German brand, Hella produces a wide range of quality automotive electrical components and lighting. Their parts are generally considered to be reliable, meeting or exceeding OEM specifications.
- Trico: Trico is a brand famous for its wiper systems and related components. Their washer pumps are known for being durable and easy to install, making them a popular choice for DIY repairs.
Both Hella and Trico are solid choices for your Fiesta. The decision can simply come down to price and availability. There is no significant quality difference for this specific part that makes an OEM pump a necessity.
Typical Replacement Costs
The cost to replace the washer pump on a 1997-2005 Fiesta is very reasonable, especially if you do the work yourself.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump (Hella, Trico) | $42.30 - $47.52 |
| Shop Labor | $80 - $150 |
| Total Professional Replacement | $122 - $198 |
A Note on Vehicle Market: The 1997-2005 Ford Fiesta was a primary model in Europe and other global markets, but it was not sold in North America during this period. This guide is based on the specifications for the globally available model from those years.
Frequently Asked Questions
Is it hard to replace the washer pump myself?
No, this is a very DIY-friendly job for most home mechanics. The pump is usually accessed by removing the front wheel and the plastic wheel arch liner. 🎬 Watch this step-by-step guide to replacing the pump yourself. Basic hand tools are all that's required. The pump itself just pulls out from a rubber seal on the washer fluid bottle.
My pump makes noise but nothing comes out. Is it broken?
Not necessarily. This is the classic sign of a clogged filter. The washer fluid reservoir can accumulate algae or debris over time, which gets sucked into the pump's inlet filter. Removing the pump and cleaning this small screen will often restore full function.
Do I need one pump or two for the front and back?
For this generation of Fiesta, a single pump typically operates both the front and rear washers. It does this by reversing the motor's direction. When ordering, make sure you get a dual-outlet pump designed for front and rear operation.
🎬 See a quick demonstration of a Fiesta pump replacement.Are there any recalls for the Fiesta washer pump?
No, searches of official recall databases for this vehicle generation did not show any recalls or technical service bulletins (TSBs) related to the windshield washer pump.

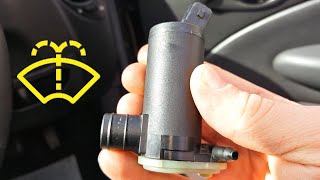

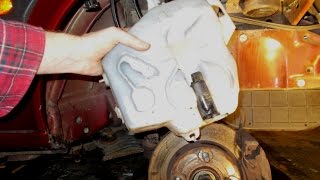

Helpful Videos
Technical Specifications
OEM Part Numbers: 2691825 2164116 8A61-17K624-AA H1BB17664AC
Dual outlet pump for front and rear washer systems. 12V electric motor. Push-fit installation into washer reservoir grommet.
