Ford Lobo & F-150 Disc Brake Caliper Guide (1997-2005)
Everything a Ford Lobo or F-150 owner needs to know before replacing a disc brake caliper.
- Verify your truck's generation: 1997-2003 (10th Gen) and 2004-2005 (11th Gen) use different calipers.
- Sticking calipers are the most common failure, often caused by seized slide pins or a collapsed rubber brake hose.
- Replacing calipers in pairs is highly recommended for balanced braking and to prevent future repairs.
- New aftermarket calipers with an anti-rust coating offer the best combination of value and longevity for these trucks.
Is Your Caliper Failing? Common Symptoms
A bad brake caliper is a serious safety risk. The most common failure on this generation of Ford truck is a seized or sticking caliper. This can happen when the caliper piston corrodes and gets stuck, or when the slide pins that allow the caliper to move side-to-side get rusted and freeze up. Look for these signs:
- Truck Pulling to One Side: A sticking caliper can cause the truck to constantly pull to the left or right, even when you're not braking.
- Burning Smell & Hot Wheel: After a drive, a dragging caliper generates a lot of heat. You might notice a strong burning smell from one wheel, and the wheel itself will be very hot to the touch.
- Spongy or Soft Brake Pedal: If a caliper piston seal fails and leaks brake fluid, you lose hydraulic pressure. This can make the brake pedal feel soft or go too far down.
- Uneven Brake Pad Wear: If you check your brakes and one pad is worn down much more than the other on the same wheel, it's a classic sign of seized caliper slide pins.
A Critical Model Year Difference: 1997-2003 vs. 2004-2005
The 1997-2005 year range covers two different generations of the Ford F-150/Lobo. Parts are NOT interchangeable between them.

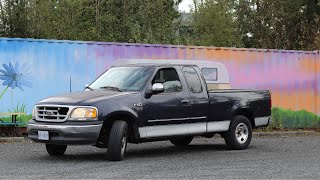

- 1997-2003 (10th Gen): 🎬 Watch: Step-by-step front caliper replacement for 10th Gen trucks. This is the classic rounded body style. There are even minor differences between 1997-1998 models (12mm wheel studs) and 1999-2003 models (14mm wheel studs) that can affect brake components.
- 2004-2005 (11th Gen): 🎬 See how to replace front calipers on 11th Gen models. This is the newer, more squared-off body style. Some 2004 models were sold as the "Heritage" edition, which is the older 10th-gen body style. You must correctly identify your truck's generation before ordering calipers.
Always verify your truck's specific year and body style before purchasing parts.
Choosing the Right Aftermarket Caliper
You don't need to buy expensive OEM calipers for this truck. Quality aftermarket parts offer excellent performance and value. Your main choice will be between standard remanufactured calipers and premium new or coated calipers.
Brand Tiers & Owner Experiences
Based on owner discussions in truck forums, here is an honest look at common aftermarket brands:
- Centric: Generally considered a reliable mid-tier choice. Their standard remanufactured calipers work well, but some owners report that the basic finish can show surface rust quickly. Opting for their coated versions can improve corrosion resistance.

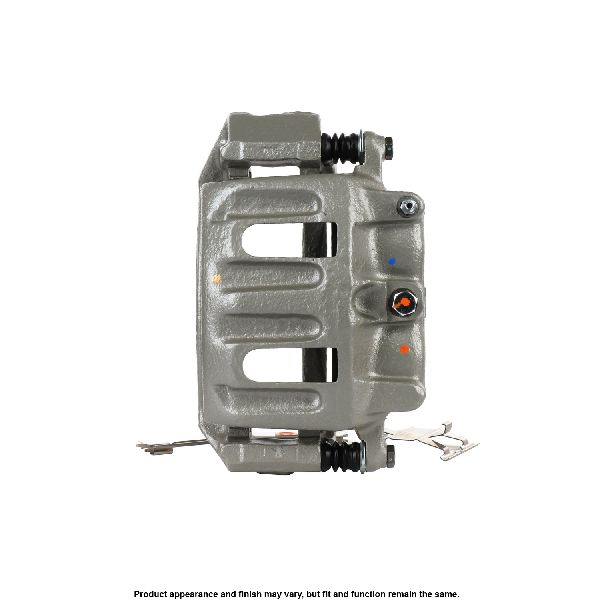

- Cardone (A1 Cardone): A major remanufacturer with a mixed reputation. Some owners have no issues, while others report receiving parts with torn boots or other quality control problems out of the box. Their premium "Ultra" line, which is powder-coated, is often seen as a better, more reliable option than their standard reman parts.
Pro Tip: Replace the Brake Hoses
Over time, the internal lining of the rubber brake hoses can break down and collapse. This can act like a one-way valve, trapping brake fluid and pressure at the caliper, causing it to stick. Many owners replace a caliper thinking it's bad, only to have the new one stick because of a bad hose. It is highly recommended to replace the flexible rubber brake hoses when you replace your calipers.

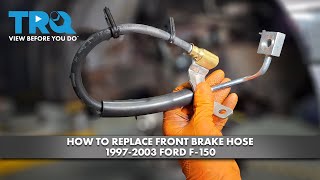

🎬 Watch this guide on replacing your front brake hoses.Estimated Costs for Caliper Replacement
| Part Type | Estimated Cost (Per Caliper) | Notes |
|---|---|---|
| New Aftermarket | $55 - $198 | Often coated for rust protection. No core charge. Our recommended choice. |
| Remanufactured Aftermarket | $45 - $90 | A budget-friendly option. Usually requires a core charge. Quality can vary. |
| New OEM (Dealer) | $100 - $250+ | Highest cost. Not necessary for good performance on this truck. |
| Shop Labor | $100 - $250 | Per side. Includes installation and bleeding the brake system. |
Frequently Asked Questions
Do I need to replace calipers in pairs?
While not strictly required, it is highly recommended. If one caliper has failed due to age and corrosion, the other side is likely not far behind. Replacing them in pairs ensures even braking performance and saves you from doing the same job twice in the near future.
What's the difference between phenolic and steel pistons?
Phenolic (a type of composite resin) pistons are lighter and don't transfer heat as much as steel pistons, which can help keep brake fluid cooler. Steel pistons are stronger and less prone to cracking under extreme use. For a daily driven F-150/Lobo, either type is perfectly acceptable. Some aftermarket calipers give you a choice.
What is a "core charge"?
Remanufactured parts are built from used OEM parts (cores). A core charge is a deposit you pay when you buy the part. You get this deposit back when you return your old, worn-out caliper to the store.
Are there any recalls for my truck's calipers?
No. Searches of the NHTSA database and other sources did not find any specific recalls for brake calipers on the 1997-2005 Ford F-150 or Lobo. Recalls found were for different components on much newer trucks.
What is the F-150 "7700" Package?
Some F-150s came with a heavy-duty payload package known as the "7700" (named for its 7700lb GVWR). These trucks have 7-lug wheels instead of the standard 5 or 6. They use larger, heavy-duty brakes, and standard F-150 calipers will not fit. Always check your wheel lug count before ordering.
Helpful Videos
Technical Specifications
Vehicle configuration is critical. Calipers differ based on: Model Year (1997-2003 vs 2004-2005), Drive Type (2WD vs 4WD), and Payload Package (Standard vs 7700 Heavy Duty 7-Lug models).
