Your Complete Guide to the 1997-2005 Mercury Sable A/C Compressor Clutch Assembly
Is your Sable's A/C blowing warm or making strange noises? Your A/C compressor clutch could be the reason.
- A failing A/C clutch is a common issue on older Sables and often doesn't require a full compressor replacement.
- Symptoms include warm air, grinding/squealing noises, and the clutch plate not spinning.
- Replacing only the clutch is a cost-effective, DIY-possible repair, but requires special tools.
- Properly setting the air gap during installation is essential for the new clutch to function correctly.
Is Your Sable's A/C Failing? It Might Be the Clutch
If the air conditioning in your 1997-2005 Mercury Sable has stopped blowing cold, the problem might not be the expensive compressor itself. Often, the electro-magnetic clutch assembly attached to the front of the compressor is the real culprit. This component can wear out or fail, especially on older vehicles. Understanding its symptoms can save you from a much more expensive repair.
Common Symptoms of a Bad A/C Clutch
- Warm Air from Vents: The most obvious sign is when your A/C system blows air that is warm or not as cold as it used to be. If the clutch doesn't engage the compressor, the refrigerant won't circulate.
- Loud Noises: A grinding or high-pitched squealing sound when you turn the A/C on usually points to a worn-out or seized bearing inside the clutch pulley. You might also hear a loud click without the clutch engaging, or chattering noises.
- Clutch Doesn't Engage: With the engine running, turn on the A/C. Look at the front of the compressor. The outer plate of the clutch should pull in and start spinning with the belt pulley. If it remains stationary, the clutch has failed to engage.
- Intermittent Cooling: The clutch might work sporadically, causing the A/C to cycle between cold and warm air. This can be due to a worn clutch plate or a failing electromagnetic coil.
A Note on Diagnosis
These symptoms can also be caused by other issues, like low refrigerant, a bad pressure switch, or a blown fuse. It's important to confirm the clutch is the problem before ordering parts. A common test is to check for 12-volt power at the clutch's electrical connector when the A/C is on. If power is present but the clutch doesn't engage, the clutch coil is likely bad.
Choosing the Right Aftermarket Part
For a vehicle like the 1997-2005 Sable, replacing a failed A/C clutch with a new aftermarket part is a practical and cost-effective solution. The original Motorcraft parts can be expensive and hard to find.
Aftermarket brands like Global Parts (gpd) offer a direct-fit replacement that meets original equipment specifications. While OEM parts are often viewed as higher quality, a new aftermarket clutch assembly provides a reliable repair that makes financial sense for an older vehicle. The most important factors for longevity are proper installation and ensuring the rest of the A/C system is in good working order.
Cost Comparison: 1997-2005 Mercury Sable A/C Clutch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Clutch Assembly | $75 - $110 |
| New OEM (Motorcraft) Clutch Assembly | $180 - $280 |
| Used OEM (Full Compressor Assembly) | $85 - $120 |
| Shop Labor (Clutch Only) | $200 - $400 |
| Shop Labor & Parts (Full Compressor) | $927 - $1,261 |
Note: Costs are estimates and can vary based on location, supplier, and vehicle condition.
Pro Tip: The Air Gap is Critical
When installing a new clutch, you must set the correct "air gap" between the clutch plate and the pulley. For the FS-10 compressor commonly used on these Sables, the gap should be between 0.35mm and 0.85mm (0.014" - 0.033"). An incorrect gap will cause the clutch to fail prematurely or not engage at all. Use a feeler gauge to measure and add or remove the included shims to get it right.
Frequently Asked Questions (FAQ)
Can I replace just the clutch instead of the whole compressor?
Yes. If the compressor itself is not leaking or seized, replacing only the clutch assembly is a great way to save money. This repair doesn't require opening the sealed refrigerant system, which avoids the cost of evacuating and recharging the A/C.
Is replacing the A/C clutch a DIY job?
For an experienced DIY mechanic, yes. However, it requires special tools, including snap ring pliers and an A/C clutch puller/installer kit. Access to the compressor on the Sable can be tight, and you may need to remove other components to get enough room to work.
Will a new clutch fix an A/C refrigerant leak?
No. The clutch is an external component. If your system is leaking refrigerant, the leak must be found and fixed separately. A common leak point is the compressor shaft seal, which would require replacing the entire compressor, not just the clutch.
Are there any recalls for the A/C clutch on this Sable?
No, there are no specific recalls or technical service bulletins (TSBs) from Ford or the NHTSA for the A/C compressor clutch on the 1997-2005 Mercury Sable.

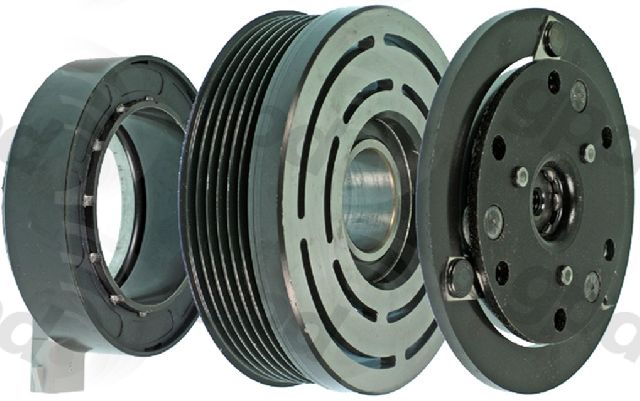

Technical Specifications
OEM Part Numbers: 4F1Z19V703AA YCC238 F7DZ19703GB
Fits FS10 style compressors. Critical installation specification is the clutch air gap, which should be set to 0.35-0.85 mm (0.014-0.033 inch).
