Ford Expedition Neutral Safety Switch Guide for 1997-2006 Models
Having trouble starting your Expedition or dealing with no reverse lights? Your neutral safety switch could be the culprit.
- A faulty switch can cause a no-start condition, make it start in only Park or Neutral, or cause the reverse lights to fail.
- Before replacing the switch, check for loose shifter linkage bolts under the steering column, as this is a common issue.
- Aftermarket switches from brands like Standard Ignition are a cost-effective and reliable option for this repair.
- Proper alignment of the new switch during installation is essential for it to function correctly.
Is Your Expedition's Neutral Safety Switch Failing?
A bad neutral safety switch, or DTR sensor, can cause some confusing problems. Because it's responsible for several functions, a failure can show up in different ways. You might find your truck won't start at all, or it might only start when you jiggle the shifter. Other times, the reverse lights might stop working, which is a safety hazard. These issues can appear 🎬 Watch this video to understand common symptoms and fixes. suddenly and may be intermittent at first.
Common Problems to Check First
Before you replace the switch, check for two common issues on these Expeditions. First, two Torx bolts holding the shifter linkage under the steering column can come loose, 🎬 See how loose shifter linkage causes starting and parking issues. causing a mismatch between the shifter position and the actual gear. Second, check fuses related to the starting and transmission systems, as a simple blown fuse can mimic switch failure.
Choosing the Right Aftermarket Switch
For a vehicle like the 1997-2006 Expedition, a new aftermarket neutral safety switch offers excellent value. The original parts can be expensive or hard to find. Aftermarket brands produce reliable replacements that meet or exceed original equipment (OE) standards.
- Standard Ignition: Often considered a premium aftermarket brand, Standard Ignition provides quality replacement parts that are well-regarded by mechanics. Their switches are designed for durability and proper fit, making them a solid choice for a long-lasting repair.
- Replacement (Store Brands): These are budget-friendly options that get the job done. While they may not have the same brand recognition as Standard, they are designed to be direct-fit replacements and can be a good choice if cost is your primary concern.
Pro Tip: Alignment is Key
When installing a new switch, proper alignment is critical. The switch has alignment marks that must line up perfectly when the transmission is in Neutral. If it's not aligned correctly, you'll continue to have starting issues, incorrect gear readings, or no reverse lights.
Cost to Replace a Neutral Safety Switch
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $53.33 - $94.69 |
| Shop Labor | $95 - $150 |
| Total Estimated Cost (DIY) | $53.33 - $94.69 |
| Total Estimated Cost (Shop) | $148.33 - $244.69 |
Frequently Asked Questions
What are the most common signs of a bad neutral safety switch?
The most common signs are: the engine won't crank or start, it will only start in Neutral but not Park (or vice-versa), the reverse lights don't work, or the check engine light comes on with codes like P0705, P0707, or P0708.
Where is the neutral safety switch located on a 1997-2006 Expedition?
It is mounted on the outside of the transmission, on the driver's side. The manual shifter shaft goes through it.
Can I replace this part myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills. It involves safely raising the vehicle, removing the old switch from the side of the transmission, and installing the new one. The most critical step is ensuring the new switch is properly aligned.

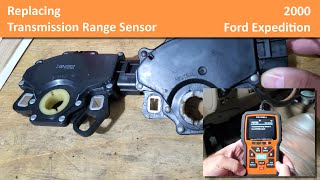

🎬 Follow this step-by-step guide to replace your transmission range sensor.Are there any recalls for this part on my Expedition?
There are no specific recalls for the neutral safety switch itself on the 1997-2006 Ford Expedition. However, there have been recalls on newer models for shifter cable issues that can cause similar symptoms, but these do not apply to this generation.
What's the difference between a Neutral Safety Switch and a Transmission Range Sensor?
For this Expedition, the terms are often used interchangeably. The part is technically a Transmission Range Sensor (TRS) because it does more than just handle the neutral safety function; it also tells the computer the position of the shifter (P, R, N, D, etc.) and operates the backup lights.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1L2Z-7F293-AA F7TZ-7F293-AA F7TZ-7A247-AA
Located on the driver's side of the transmission case. It has an 11-pin electrical connector. Also known as a Digital Transmission Range (DTR) sensor.
