Jeep TJ Wrangler A/C Clutch Cycle Switch Guide (1997-2006)
Is your TJ's air conditioning failing to blow cold? This switch could be the simple fix you need.
- A faulty A/C clutch cycle switch is a common cause for A/C failure in a Jeep TJ and is an easy, inexpensive DIY fix.
- Symptoms include warm air, an A/C compressor that won't turn on, or intermittent cooling.
- Always check for proper refrigerant levels first, as low pressure will also prevent the compressor from engaging.
- Aftermarket brands like Four Seasons and Global Parts are a cost-effective and reliable choice for this specific part.
Is Your TJ's A/C Acting Up? It Might Be the Clutch Cycle Switch
If the air conditioning in your 1997-2006 Jeep Wrangler TJ is blowing warm air or not working at all, a faulty A/C clutch cycle switch is a common and inexpensive part to check. This sensor is a key player in making sure your A/C compressor engages correctly. When it fails, the whole system can stop cooling, leaving you uncomfortable on hot days.
Symptoms of a Failing A/C Clutch Cycle Switch
Diagnosing a bad cycle switch on your TJ is straightforward. Look for these common signs:
- A/C Blows Warm or Hot Air: This is the most obvious symptom. If the switch fails, it can't tell the compressor to turn on, so the refrigerant doesn't circulate to cool the air.
- Compressor Clutch Won't Engage: Pop the hood with the engine running and the A/C on full blast. Watch the front of the A/C compressor. If the outer plate (the clutch) never clicks and spins with the pulley, the switch might not be sending the signal. 🎬 Watch: How to diagnose and fix a TJ A/C that isn't blowing cold.
- Intermittent Cooling: The A/C might work sometimes and then suddenly stop. This can happen if the switch is failing and sending erratic signals to the compressor.
- A/C Compressor Cycles Too Frequently or Not at All: A faulty switch can misread system pressures, causing the compressor to turn on and off rapidly or run constantly until the system freezes up.
Check the Basics First
Before replacing the switch, make sure your A/C system has the correct amount of refrigerant. Low refrigerant is a very common reason for the A/C to stop working, as the cycle switch will correctly prevent the compressor from turning on to avoid damage. A simple pressure check with an A/C gauge set can confirm this.
Choosing the Right Aftermarket Switch for Your TJ
For a vehicle like the Jeep TJ, you don't necessarily need to pay a premium for an OEM Mopar part. Aftermarket brands offer a reliable and cost-effective solution for this component. The two main brands you'll find are Four Seasons and Global Parts.
- OEM (Mopar): The original part is always a guaranteed fit, but often comes at a higher price. For a simple switch, the extra cost may not be justified unless you insist on keeping your Jeep all-original.
- Four Seasons: This is a well-known aftermarket brand that is part of Standard Motor Products. Forum discussions and reviews show that many DIY mechanics have used Four Seasons A/C components with good results, considering them a solid runner-up to OEM parts.
- Global Parts Distributors (GPD): Another common aftermarket supplier. While some users have reported issues with more complex components like compressors, a simple switch is generally a safe bet.
For a part this simple and inexpensive, either a Four Seasons or Global Parts switch is a smart choice for your TJ. The quality is sufficient for this application, and you'll save money over the dealer part.
Expected Replacement Costs for a Jeep TJ
Replacing the A/C clutch cycle switch is one of the cheaper A/C repairs you can make. The part itself is affordable, and labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Mopar) Part | $40 - $70+ |
| New Aftermarket Part (Four Seasons, Global Parts) | $22.12 - $32.43 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the A/C clutch cycle switch located on my Jeep TJ?
The switch is located in the engine bay on the passenger side. It is screwed into the top of the A/C accumulator (a silver or black canister) which is mounted near the firewall.
Can I replace this switch myself?
Yes, this is a very easy DIY job. On most systems, including the TJ, the switch is mounted on a Schrader valve, similar to a tire valve. This means you can unscrew the old switch and screw on the new one without losing refrigerant or needing to evacuate the A/C system. The job typically takes less than 15 minutes and only requires a wrench.
🎬 See this quick walkthrough on replacing the A/C cycle switch.Do I need any special tools to replace it?
No special tools are required. You'll just need a wrench that fits the base of the switch. Simply unplug the electrical connector, unscrew the old switch, and install the new one.
Is there a recall on the A/C clutch cycle switch for the 1997-2006 Jeep TJ?
No, there are no specific recalls for the A/C clutch cycle switch on the 1997-2006 TJ. There was a recall (NHTSA 15V-222) for the clutch interlock switch on 2006 models with manual transmissions, which is a different part that prevents starting the engine without depressing the clutch pedal. Other recalls for Jeep clutches relate to the transmission pressure plate on newer (2018+) models and do not apply to the TJ.
Helpful Videos

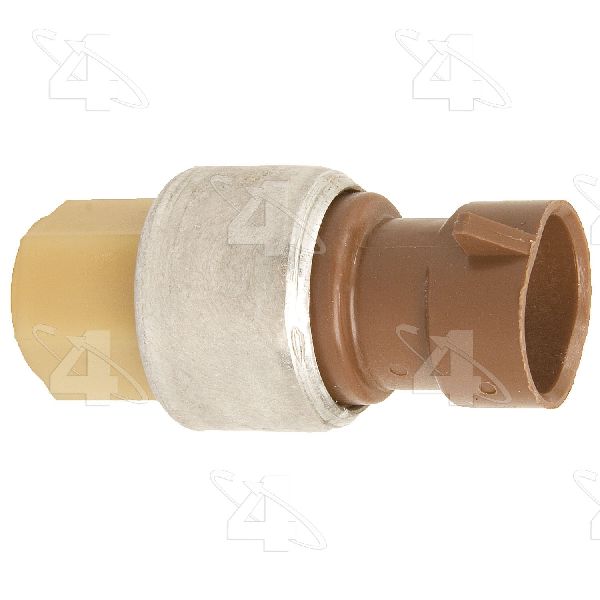

Technical Specifications
OEM Part Numbers: 56027870 04856849 4897613AA 5015872AA
Connector: 2-pin rectangular. Thread Size: M12x1.50.
