Jeep Wrangler TJ (1997-2006) Windshield Washer Pump Replacement Guide
A clear windshield is a must for any trail or highway. Here’s how to fix your washer pump.
- A failed washer pump is a common, simple fix on a Jeep TJ.
- Always check for clogged nozzles or an empty tank before replacing the pump.
- Aftermarket pumps from brands like Omix-Ada or Trico are a cost-effective and reliable solution.
- Replacement is an easy DIY job that takes less than 30 minutes with basic tools.
Is Your Washer Pump Failing?
A broken windshield washer pump on a Jeep Wrangler TJ is a common issue, especially on older models. The signs are usually obvious. If you activate the washer and nothing happens, the pump is the first part to check. Here are the most common symptoms:
- No Sound, No Fluid: You push the button, the wipers move, but you don't hear the familiar humming sound of the pump motor. This often means the pump has failed or isn't getting power.
- Pump Hums, But No Fluid Sprays: If you can hear the motor running but no fluid comes out, the problem might be a clog in the system. It could be clogged nozzles, pinched lines, or a clogged filter screen at the pump's intake. The pump's internal impeller could also be broken.
- Weak Spray: If the fluid barely reaches the windshield, the pump motor might be getting weak and losing its ability to create enough pressure.
- Leaks: Puddles of washer fluid under the driver's side of your Jeep can point to a cracked reservoir or, more commonly, a leak from a dried-out rubber grommet 🎬 See how to replace the entire reservoir if it's cracked. where the pump enters the tank.
Pro Tip: Check The Easy Stuff First
Before you buy a new pump, make sure your washer fluid reservoir is full. Then, check for clogged nozzles on the hood; a safety pin can often clear them. 🎬 Check out this quick tip for aiming your washer sprayers. Also, listen for the pump's hum to see if it's getting power. These simple checks can save you from replacing a part that isn't broken.
Choosing the Right Aftermarket Pump
For a straightforward part like the washer pump on a TJ Wrangler, aftermarket options offer excellent value. The original Mopar part performs well, but it costs more than twice as much as a quality aftermarket replacement. Brands like Omix-Ada and Trico are widely available and are reliable choices for this repair.
- Omix-Ada: Specializing in Jeep parts, Omix-Ada offers direct-fit replacement pumps. Many of their pumps come with a 5-year warranty and include the necessary wiring adapter and a new grommet, which is a critical part to replace at the same time.
- Trico: A well-known brand in wiper and washer systems, Trico pumps are a dependable and budget-friendly option. They are designed for easy installation and meet OE specifications for performance.
For this specific repair on a TJ, there is little practical difference in quality or longevity between an expensive OEM pump and a reputable aftermarket one. Both will get the job done effectively.
Estimated Costs
| New Aftermarket Pump | $32.40 - $43.56 |
| New OEM (Mopar) Pump | $65 - $90 |
| Shop Labor | $50 - $100 |
Known Issues & Recalls
There are no specific recalls or Technical Service Bulletins (TSBs) from Jeep or the NHTSA for the windshield washer pump on the 1997-2006 Jeep Wrangler TJ. Failures are typically due to normal wear and tear on the electric motor over time.
Frequently Asked Questions (FAQ)
Is it difficult to replace the washer pump on a TJ?
No, this is one of the easiest repairs you can do on a TJ Wrangler. The washer reservoir is easily accessible in the engine bay, and the pump simply pulls out of a rubber grommet. The entire job usually takes less than 30 minutes and requires only basic hand tools like a socket wrench.
🎬 Watch this step-by-step guide to installing your new washer pump.Do I need to drain the washer fluid to replace the pump?
If the reservoir is full, the fluid will spill out when you pull the old pump. You can either drain the tank first or be prepared to catch the fluid. A quicker method is to have the new pump ready to install immediately after removing the old one to minimize fluid loss.
My new pump came with a wiring adapter. Do I need it?
Yes, most likely. Many aftermarket pumps use a universal connector and provide a vehicle-specific pigtail adapter. Some pumps designed for the Jeep Cherokee (XJ) are sold for the TJ and require this adapter to connect to the Wrangler's wiring harness. It simply plugs in between the pump and the factory connector.
Why did my new aftermarket pump fail after a few months?
While it's possible to get a defective part, premature failure is rare. If multiple pumps have failed, the issue may be with your Jeep's electrical system, such as bad wiring causing voltage problems. Also, running the pump while the reservoir is empty can cause it to burn out quickly.
Helpful Videos

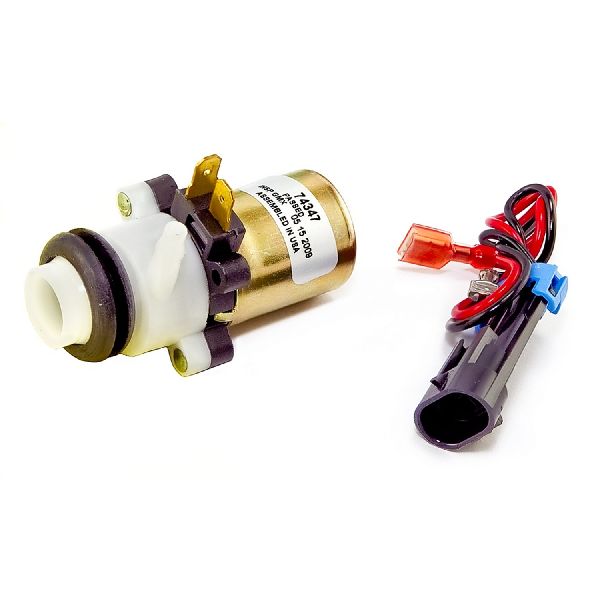

Technical Specifications
OEM Part Numbers: 4797695
Single outlet pump for front windshield. Mounts to washer fluid reservoir with a rubber grommet. Typically requires a 12V electrical connection.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
