A Guide to Direct Ignition Coils for the 1997-2007 BMW 525i
Solve engine misfires and restore performance by understanding and choosing the right ignition coil for your E39 or E60 525i.
- Verify your 525i's year and engine (M54 vs. N52) to buy the correct coil style (bolted vs. friction-fit).
- It is highly recommended to replace all six coils at once using a single, quality brand like Bosch, Delphi, or Hella.
- When replacing coils, inspect for oil in the spark plug wells, which indicates a leaking valve cover gasket that must be fixed.
- Driving with a misfire can damage your catalytic converters, leading to a much more expensive repair.
Understanding Your 525i: E39 vs. E60 Generations
The 1997-2007 period covers two different generations of the 525i, the E39 and the E60. They use different engines and, in some cases, different ignition coils. It is critical to identify your specific model year before buying.

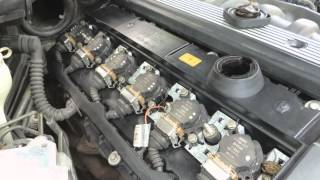

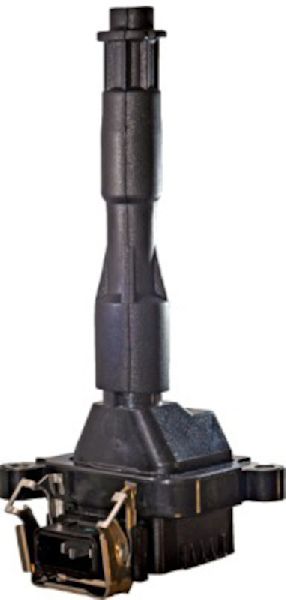

- E39 525i (2001-2003): These models use the M54 engine. The ignition coils are a "pencil" style that are secured to the valve cover with two 10mm bolts. The original 🎬 Watch: E39 M54 ignition coil and spark plug replacement guide equipment (OEM) supplier was typically Bosch.

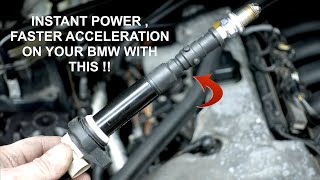

- E60 525i (2004-2007): This generation used two different engines. The 2004-2005 models continued with the M54 engine and use a similar coil to the E39. However, the 2006-2007 models switched to the N52 engine, which uses a different style of pencil coil that is held in place by a friction fit and does not use bolts.
Check for Oil Leaks First!

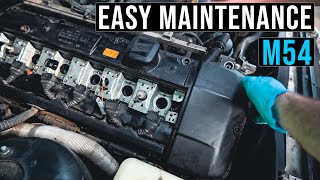

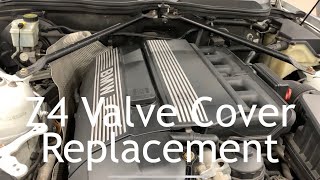

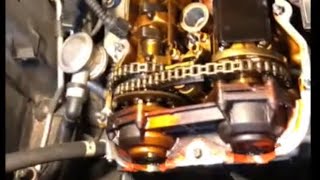

A very common cause of ignition coil failure on these BMW engines is a leaking valve cover gasket. Oil seeps into the spark plug tubes and soaks the bottom of the coil, causing it to short out and fail. When you remove the old coils, check for oil residue on the boots. If you find oil, you must replace the valve cover gasket to prevent your new coils from failing 🎬 See how to replace a leaking M54 valve cover gasket prematurely.
Choosing the Right Aftermarket Ignition Coil
When it comes to ignition components, quality matters. While many aftermarket options are available, they are not all created equal. For a sensitive engine like your BMW's, sticking with brands known for their OEM-quality is the safest bet. It is highly recommended to replace all six coils at the same time and to use the same brand for all of them to ensure consistent performance.
Brand Quality Tiers
| Tier | Brands | Assessment |
|---|---|---|
| OEM & OEM-Quality | Bosch, Bremi, Delphi, Hella, Denso | These brands are or have been original equipment suppliers to BMW. Bosch is the most common OEM for this period. Delphi is the BMW-recommended replacement for some later models. Choosing from this tier provides the highest likelihood of long-term reliability. |
| Reputable Aftermarket | Beck Arnley, Vemo | Beck Arnley is a parts re-packager, so the component inside the box could be from an OEM or another source; quality can vary. Vemo is a known aftermarket brand with generally acceptable reviews. These can be a good value but may not have the same longevity as an OEM part. |
| Budget Brands | Prenco, unbranded store parts | While budget-friendly, these coils have a higher risk of premature failure. Given the importance of the ignition system to your BMW's engine health, it's generally advised to avoid the cheapest options. |
A Note on TSBs and Recalls
There was a service campaign for some 2002+ M54 engines to replace original Bremi coils with more reliable Bosch units. For 2006+ N52 engines, a Technical Service Bulletin (TSB) recommended replacing all Bosch coils with Delphi coils at the first sign of failure due to durability issues. This makes Delphi a strong choice for 2006-2007 models.
Frequently Asked Questions (FAQ)
Is replacing ignition coils a DIY job?
Yes, absolutely. This is one of the easiest maintenance tasks you can perform on your 525i. The coils are located directly on top of the engine and are easily accessible after removing the plastic engine covers. The job requires only basic tools and can be done in under an hour.
How do I know which coil is bad?
A check engine light will trigger a fault code, such as P0304 for a misfire on cylinder 4. If you don't have a code scanner, a common diagnostic trick is to swap the suspected bad coil with a coil from a known good cylinder. Clear the codes, run the engine, and see if the misfire code "follows" the coil to the new 🎬 Watch: How to diagnose a misfire on the N52 engine cylinder. If it does, you've confirmed the coil is faulty.
Should I replace all six coils at once?
Yes. It is strongly recommended to replace all six ignition coils at the same time. If one coil has failed due to age, the others are likely not far behind. Replacing them all at once ensures consistent performance and prevents you from having to repeat the job in the near future.
Do I need to replace the spark plugs too?

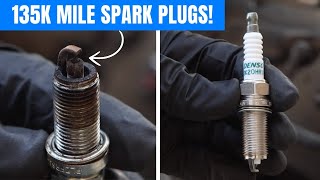

It's a great idea. Since you already have the coils out, the spark plugs are right there. Replacing the spark plugs at the same time ensures your entire ignition system is refreshed and performing at its best. BMW recommends spark plug replacement at regular intervals, typically every 60,000 to 100,000 miles.

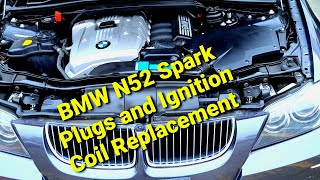

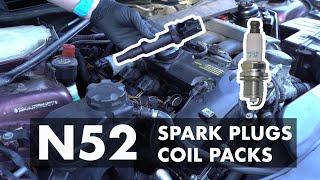

Helpful Videos
Technical Specifications
OEM Part Numbers: 12131748018 12137599219 12139067830 12137594937 12137551260 12138616153 12137548553
The 1997-2007 BMW 525i uses a six-cylinder engine with a coil-on-plug ignition system. Early models (E39 and early E60 with M54 engine) use a bolted-down pencil coil. Later models (E60 with N52 engine, 2006-2007) use a longer, non-bolted pencil coil. Always confirm the part number by your vehicle's specific year and VIN.
