A Guide to the Alternator for the 1997-2007 Dodge Caravan
Here is what you need to know about keeping your Caravan's electrical system healthy by choosing the right alternator.
- For 2001-2007 models, a loud knocking noise is very likely a failed alternator decoupler (OAD) pulley, not an internal engine problem.
- The voltage regulator is located in the van's main computer (PCM), not inside the alternator itself.
- When replacing, ensure the new alternator has the correct amperage (140A or 160A) to match your van's original equipment.
- Choosing a quality brand like Denso or Bosch can improve reliability, especially regarding the critical OAD pulley on later models.
A Critical Known Issue: The Alternator Decoupler Pulley (2001-2007)
If you own a 2001-2007 Caravan with a 3.3L or 3.8L V6, pay close attention. One of the most common failure points is not the alternator itself, but its pulley. These models use a special part called an Overrunning Alternator Decoupler (OAD) pulley. This pulley has a one-way clutch designed to reduce vibration and wear on the serpentine belt.
Many repair shops will replace the entire alternator assembly because it's a faster and more guaranteed fix than just replacing the pulley. When buying a new aftermarket alternator for these years, ensure it comes with a new, high-quality OAD pulley already installed.
Symptoms of a Failing Alternator
- Dimming or Flickering Lights: Headlights and dashboard lights may dim, flicker, or pulse, especially at idle. They might get brighter when you rev the engine.
- Battery Warning Light: A battery-shaped icon or an "ALT" or "GEN" light may appear on your dashboard.
- Slow or Malfunctioning Electronics: Your power windows might be slow, the radio could cut out, or other accessories may act up.
- Unusual Noises: Besides the OAD pulley noise, a failing alternator can produce a high-pitched whine or a grinding/growling sound from bad internal bearings.

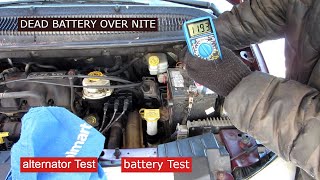

- Dead Battery: The alternator's job is to recharge the battery. If it fails, the battery will drain while you drive, and eventually, the van won't start. 🎬 See how to test your battery and alternator at home.
- Engine Stalling: The fuel injection system needs electricity to run. If the alternator fails completely, the engine can stall.
Choosing the Right Aftermarket Alternator
Aftermarket alternators can be as reliable as the original factory part, often at a better price. For your Caravan, brands fall into a few general quality tiers. This is not a guarantee, but a general guide based on industry reputation.
Premium Brands (Highest Quality & Longevity):
- Denso: Often the original equipment (OE) manufacturer for Chrysler vehicles, Denso parts are known for their precision, reliability, and long life.
- Bosch: A top-tier brand with a strong reputation for quality components and rigorous testing.
Quality Mid-Range Brands (Reliable & Good Value):
- ACDelco: A well-respected brand with different product lines (Gold/Professional is their higher tier) that offer a good balance of quality and price.
- Remy: A long-standing brand in the electrical parts industry, offering both new and remanufactured units that are a solid choice.
Standard Brands (Budget-Friendly):
- WAI Global, BBB Industries, MPA: These brands provide a cost-effective solution that meets factory specifications and can be a good option if budget is the primary concern.
Cost of Replacing a Dodge Caravan Alternator
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Alternator | $127 - $396 |
| Remanufactured Alternator | $100 - $280 |
| New OEM Alternator | $350 - $600 |
| Shop Labor | $150 - $300 |
Frequently Asked Questions
Is the voltage regulator inside the alternator?
No. For the 1997-2007 Dodge Caravan, the voltage regulator is controlled by the Powertrain Control Module (PCM), the main engine computer. If you have over-charging or under-charging issues with a new alternator, the PCM or its wiring could be the problem.
What amperage alternator do I need?
Dodge Caravans in this year range were typically equipped with either a 140-amp or 160-amp alternator. Higher-trim models with more electronic features (like rear A/C or power sliding doors) usually have the 160-amp version. While you can often upgrade from a 140 to a 160-amp unit without issue, you should not downgrade. Always check your vehicle's specifications to be sure.
Can I just replace the OAD pulley instead of the whole alternator?
Yes, the decoupler pulley can be replaced on its own, and the part is available separately. However, it requires special tools and can be difficult. Most people, and nearly all repair shops, find it more efficient to replace the entire alternator assembly, which comes with a new pulley and fresh internal components.
Is it hard to replace the alternator on a Dodge Caravan?
For a DIYer with some experience, it is a manageable job. It involves disconnecting the battery, releasing the serpentine belt tension, removing a few bolts and electrical connectors, and swapping the part. Access can be tight, but it does not typically require removing major engine components.

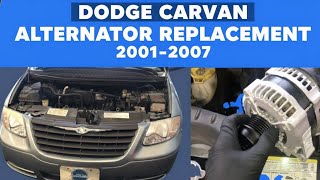

🎬 Watch this step-by-step guide to replacing the alternator yourself.Helpful Videos
Technical Specifications
Amperage: 140A or 160A. Voltage Regulation: External, controlled by the Powertrain Control Module (PCM). Pulley Type: Standard V-ribbed (1997-2000), Overrunning Alternator Decoupler (OAD) on most 3.3L/3.8L V6 models (2001-2007).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
