Stalling, no-start, or electrical glitches in your Dodge Caravan could be a failing ignition switch.
- A failing ignition switch can cause your Caravan to stall while driving, which is a critical safety issue that requires immediate attention.
- Symptoms often include a no-start condition where dash lights work but the engine doesn't crank, or intermittent failure of accessories like the radio and wipers.
- This is a DIY-friendly repair for many owners, typically requiring basic hand tools and about an hour of time.
- Make sure you are replacing the correct part; the ignition switch is the electrical component, not the mechanical lock cylinder your key goes into.
Is Your Caravan's Ignition Switch Failing?
A faulty ignition switch in a 1997-2007 Dodge Caravan is a common problem. These vans are known for electrical issues, and the ignition switch is a frequent culprit. Symptoms often start small but can become a serious safety hazard. Recognizing the signs early can save you from a breakdown and a costly tow.
Top 5 Failure Symptoms
- Engine Stalls While Driving: This is the most dangerous symptom. The engine may shut off without warning, causing a loss of power steering and power brakes. This can happen when hitting a bump or for no apparent reason.
- No-Start Condition: You turn the key, the dashboard lights come on, but the engine doesn't crank. You might hear a single click or nothing at all. Wiggling the key sometimes helps it start, which points directly to a worn-out switch. 🎬 Watch: Troubleshooting a no-start condition when you still have power.
- Intermittent Electrical Problems: The radio, windshield wipers, and heater blower may all stop working at the same time. This happens because the switch isn't making a solid connection to power the accessory circuits.
- Key is Hard to Turn: While often a problem with the key or lock cylinder, a binding ignition switch can also make the key difficult to turn.
- Starts, Then Immediately Dies: The engine fires up but shuts off after a couple of seconds. This can feel like a security system issue, but it's a known symptom of a bad ignition switch losing contact in the 'run' position.
An ignition switch that causes the engine to stall while driving is a critical safety failure. It can lead to a complete loss of vehicle control. If you experience this symptom, it is not safe to drive the vehicle until it is repaired. While no official recall covers the 1997-2007 model years, later model Caravans were recalled for this exact issue.
Choosing the Right Aftermarket Ignition Switch
You don't need to buy an expensive OEM part from the dealer. Aftermarket switches for the Caravan are widely available and offer good value. They generally fall into three quality tiers.
Tier 1: Premium Aftermarket (Standard Ignition)
Brands like Standard Ignition (SMP) are often considered a step above basic replacements. They typically use higher-quality materials, such as copper alloy conductors, and promote their rigorous testing processes. For a critical part like an ignition switch, spending a few extra dollars for a brand known for durability can provide peace of mind. While most experiences are positive, even premium brands can have occasional defects.
Tier 2: Standard Aftermarket (Dorman)
Dorman is a well-known brand that produces direct-fit replacement parts that meet original specifications. Their ignition switches are a cost-effective and reliable solution for most owners. They are a popular choice and represent a good balance between price and quality for this specific repair.
Tier 3: Economy (Replacement)
Brands listed as "Replacement" or other store-specific private labels are usually the most affordable option. While they will get your van running again, their long-term durability may not match that of the premium or standard brands. If budget is your primary concern, this is a viable choice, but be aware you may be replacing it again sooner.
| Brand Tier | Example Brands | Estimated Price |
|---|---|---|
| Premium | Standard Ignition (SMP) | $45 - $55 |
| Standard | Dorman | $40 - $50 |
| Economy | Replacement | $34 - $45 |
Frequently Asked Questions (FAQ)
Is this a difficult repair to do myself?
No, for most people with basic tools, this is a very manageable DIY job that takes about an hour. 🎬 See this step-by-step walkthrough for replacing the switch yourself. The process involves removing the plastic covers around the steering column and a few screws. You will likely need a tamper-proof Torx screwdriver (T10 or T20 size). Always disconnect the battery before you begin.
Are there any recalls for the Caravan ignition switch?
There was a major safety recall for ignition switches on the 2008-2010 Dodge Grand Caravan. While this does not officially cover the 1997-2007 generation, it shows a history of this part failing in a dangerous way (stalling while driving). The symptoms and failure mode are highly relevant to owners of older models.
Will a new ignition switch require a new key?
No. The ignition switch is a separate electrical part. Your original key will continue to work in the existing ignition lock cylinder. You are not changing the part that the key physically enters.

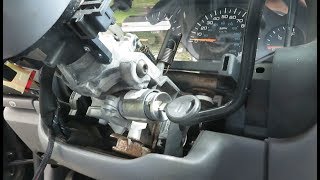

🎬 Watch: How to remove the entire ignition and lock cylinder assembly.What's the difference between the ignition switch and the starter?
The ignition switch is the trigger. When you turn the key, the switch sends a low-power electrical signal to a relay, which then sends a high-power signal to the starter motor. A no-start problem can be the switch, the relay, or the starter. If you hear a loud click from the engine bay when you turn the key, the switch is likely working, and the problem may be the starter. If you hear nothing, the ignition switch is a more likely suspect.
Helpful Videos
Technical Specifications
Located on the steering column, the ignition switch is the electrical component actuated by the lock cylinder. It typically has a single multi-pin connector and is secured with one or two screws, often requiring a Torx bit for removal.
