Ford Lobo Engine Timing Chain Kit Guide for 1997-2007 Models
Solve the common Triton engine rattle and prevent failure by choosing the right timing chain kit for your truck.
- First, identify your engine: 2-Valve (1997-2003) or 3-Valve (2004-2007), as the problems and parts are different.
- For 5.4L 3V engines, always use genuine Ford/Motorcraft cam phasers and upgrade to a Melling high-volume oil pump.
- Always install a complete kit. The cost of failure is much higher than the cost of replacing all related components at once.
- Do not ignore a startup rattle; it is a clear sign of wear that can lead to broken guides, oil starvation, and catastrophic engine failure.
Is This For Your Truck? 2-Valve vs. 3-Valve Engines
The 1997-2007 Ford Lobo (and its North American twin, the F-150) used two main types of Triton V8 engines, and their timing systems are very different. Identifying your engine is the first step.

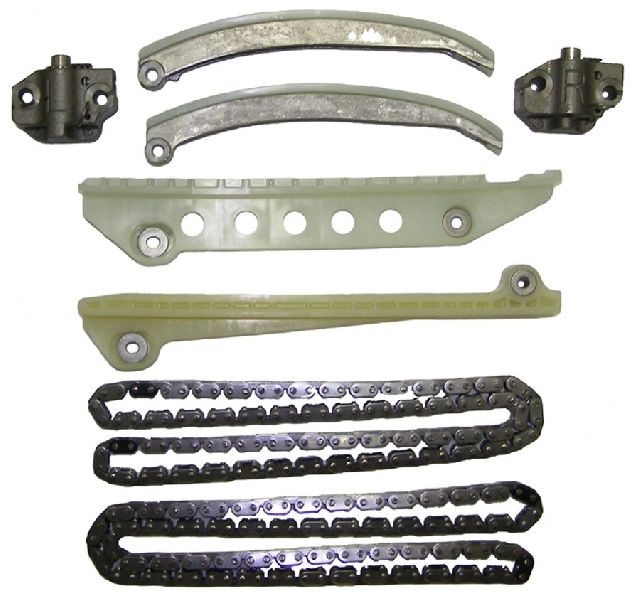

- 1997-2003 4.6L & 5.4L 2-Valve (2V): These engines are generally reliable. Timing chain problems usually come from old age and high mileage. The main failure point is the plastic timing chain guides, which can become brittle and break.
- 2004-2007 5.4L 3-Valve (3V): This engine is well-known for complex timing system issues. Failures involve not just the chains and guides, but also the cam phasers, VCT solenoids, and are often linked to low oil pressure.
Common Failure Symptoms
Ignoring these signs can lead to severe engine damage. Listen carefully to your engine.
- Startup Rattle: A loud rattling or scraping noise for a few seconds when you start the engine cold. This is the most common sign of slack in the timing chains before oil pressure builds up.
- Ticking or Knocking Noise: On 5.4L 3V engines, a persistent tick that sounds like a diesel engine, especially when warm at idle, points to failing cam phasers.
- Chain Slap: A constant slapping or grinding noise means the chain is loose and hitting the inside of the timing cover because a guide has broken.
- Check Engine Light: Codes like P0012, P0022, P0340, and P0345 are common. These point to camshaft position and timing problems.
- Poor Performance: You may notice a rough idle, engine misfires, a loss of power, and worse gas mileage as the engine's timing becomes incorrect.
The Role of Oil Pressure
For the 5.4L 3V engine, low oil pressure is a primary cause of timing system failure. Debris from broken plastic guides can clog the oil pump pickup tube, starving the engine of oil. When replacing the timing kit, it is highly recommended to also install a new, high-volume oil pump to prevent future issues.
Choosing the Right Aftermarket Timing Kit
This is not a repair where you want to cut corners. The job is labor-intensive, so using quality parts is essential to avoid doing it twice.
| Brand Tier | Brands | Quality & Advice |
|---|---|---|

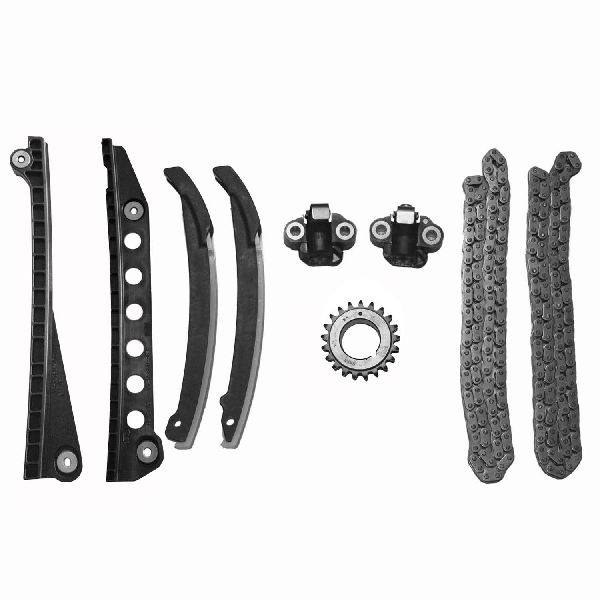

| Premium Aftermarket | Cloyes, INA | Both Cloyes and INA are well-respected brands for timing components. Cloyes has a long history in timing systems and is trusted by professionals. INA is a known OEM supplier, so their quality is typically excellent. These kits are a reliable choice for a complete timing job on both 2V and 3V engines. |
| Standard Aftermarket | Dorman | Dorman offers budget-friendly kits that can be a viable option. However, feedback on quality can be mixed. For a critical and labor-intensive job like this, carefully consider the trade-off between cost and long-term reliability. |
| OEM / Specialty | Ford/Motorcraft, Melling | For the 5.4L 3V engine, it is strongly recommended to use genuine Ford/Motorcraft cam phasers. Aftermarket phasers are notorious for failing quickly. For the oil pump, Melling's high-volume pumps (M340HV or M360HV) are considered a mandatory upgrade by many mechanics to fix the root oil pressure problem. |
Build the Perfect Kit

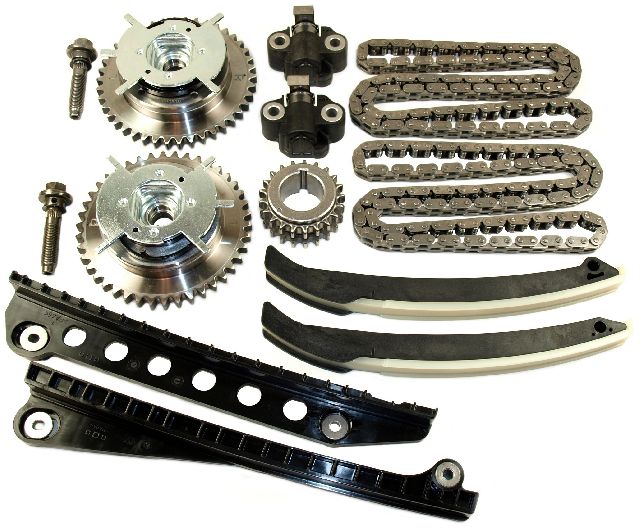

The best approach for a 5.4L 3V engine is often to combine parts: Use a high-quality aftermarket timing chain and guide kit from a brand like Cloyes, but purchase genuine Ford cam phasers and VCT solenoids, and a Melling high-volume oil pump separately. This ensures the most critical components are the most reliable ones.
Frequently Asked Questions
What causes the timing chain system to fail?
The primary causes are age and wear. The plastic guides become brittle from heat and time and break apart. On 3V engines, low oil pressure and the complex design of the cam phasers are major contributing factors. Using the wrong oil or not changing it regularly can also speed up wear.
Can I just replace the one broken part?
No. This is a bad idea. The labor to access the timing components is the biggest part of the job. If one part has failed, the others are likely worn and near the end of their life. You should always replace the complete system: chains, guides, tensioners, and sprockets. For 5.4L 3V engines, this includes the cam phasers, VCT solenoids, and oil pump.
What are cam phasers and VCT solenoids?

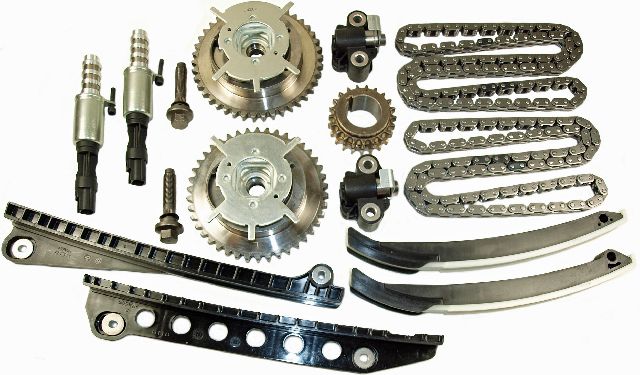

These parts are specific to the 5.4L 3V engine. Cam phasers are gears on the camshafts that can change their position to adjust valve timing. This is called Variable Camshaft Timing (VCT). The VCT solenoids are electronic parts that control oil flow to the phasers, telling them when to adjust. They are a common failure point and a source of engine noise.
Were there any recalls for this issue?
No, there have not been any major recalls from Ford or NHTSA specifically for the timing chain systems on these trucks. The problems are typically addressed as out-of-warranty repairs. There was a TSB related to ticking noises caused by aftermarket oil filters, highlighting the importance of proper lubrication.
Technical Specifications
OEM Part Numbers: 3R2Z-6A257-DA 5L3Z-6268-A F6AZ-6L266-DA F6AZ-6L266-CA F85Z-6K255-AA 4L3Z-6M256-AA XL3Z-6306-AA

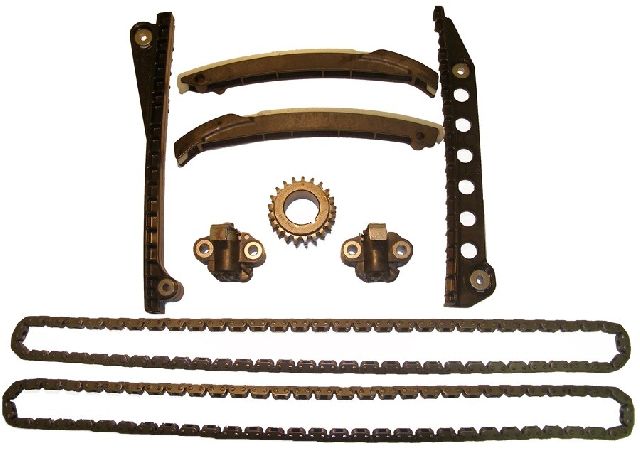

Vehicle application covers Ford Lobo models from 1997 to 2007, which corresponds to the Ford F-150 platform. Engine fitment includes the 4.6L SOHC 2-Valve, 5.4L SOHC 2-Valve, and 5.4L SOHC 3-Valve Triton V8 engines. Kits must be specific to the engine type (2V vs. 3V). A complete kit should include two timing chains, two tensioners, four guides (two tensioner arms, two fixed guides), and a crankshaft sprocket. Kits for 3V engines may also include cam phasers and VCT solenoids.
