A Ford E-350 Econoline Owner's Guide to Direct Ignition Coils (1997-2008)
Solve engine misfires and poor performance by choosing the right ignition coil for your 5.4L or 6.8L Triton engine.
- Ignition coil failure is extremely common on these vans, often caused by engine heat and water leaking into the spark plug wells.
- For best results, replace all coils and spark plugs at the same time, especially if over 100,000 miles.
- Stick with reliable brands like OEM Motorcraft or Denso; avoid cheap, unbranded online coils to prevent premature failure.
- Always use dielectric grease inside the coil boots to seal out moisture and prevent future misfires.
Is Your E-350 Running Rough? It Could Be an Ignition Coil

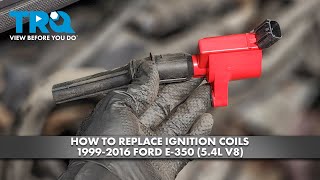

If your work van or shuttle is suddenly shaking, hesitating when you accelerate, or the check engine light is on, a failing ignition coil is a very common culprit. These vans work hard, and the engine compartment gets extremely hot, which is tough on electrical parts. Over time, the plastic housings can crack and the internal windings can fail, leading to an engine misfire. 🎬 Watch this step-by-step guide to replacing coils on a 5.4L V8. A very common issue on these Triton engines is water leaking from the cowl area and pooling in the spark plug wells, which shorts out the coil and the spark plug.
Symptoms of a Bad Ignition Coil
A bad coil will almost always cause a problem you can feel. You might experience:
- Engine Misfires: This is the most obvious symptom. You'll feel a shudder, shake, or jerking motion, especially when accelerating or when the engine is under load (like going up a hill).
- Rough Idle: Your van may vibrate or sound uneven when you're stopped at a light or parked with the engine running.
- Check Engine Light: A failing coil will trigger the check engine light. If the light is flashing, it signals a severe misfire that is dumping unburned fuel into the exhaust, which can quickly destroy your expensive catalytic converters. Common codes include P0300 (random misfire) or codes specific to a cylinder, like P0301, P0302, etc.
- Loss of Power & Poor Fuel Economy: With one or more cylinders not firing correctly, your engine will feel sluggish and you'll notice you're visiting the gas station more often.
- Gas Smell: You might smell raw gasoline from the exhaust because the unburned fuel from the dead cylinder is being pushed out.
Choosing the Right Aftermarket Ignition Coil
When it comes to ignition coils for your E-350, quality matters. While OEM Motorcraft coils are the benchmark, good aftermarket options can offer reliable performance for less money. Avoid the cheapest, no-name coils from online marketplaces, as they are known for high failure rates and can leave you stranded.
Brand Quality Tiers
- Tier 1 (OEM or Equivalent): Motorcraft is the Ford factory part and is widely considered the most reliable option. Denso is a major OEM supplier for many car manufacturers and is a trusted, high-quality alternative.
- Tier 2 (Performance & Reputable Aftermarket): Brands like MSD and Accel are known for performance parts. While they may claim higher voltage output, this often provides no real-world benefit on a stock work van and some professional mechanics report higher failure rates compared to OEM. Hella is a well-regarded German brand known for making quality electrical components.
- Tier 3 (Budget Brands): This category includes many store brands and lesser-known online brands. While the price is low, reliability can be a gamble. If you depend on your van daily, it's best to invest in a Tier 1 or Tier 2 brand.
Pro Tip: Replace in Sets
If your van has over 100,000 miles and one coil fails, the others are likely not far behind. To save yourself future headaches and repeated labor, it is highly recommended to replace all the ignition coils and spark plugs at the same time. Always apply a small amount of dielectric grease to the inside of the coil boot to seal out moisture and ensure a good connection to the spark plug.
🎬 Check out these pro tips for a smoother spark plug and coil swap.Known Issues, Recalls, and TSBs
There are no major recalls specifically for ignition coil failure on the 1997-2008 Ford E-350 Econoline. However, Ford has issued Technical Service Bulletins (TSBs) for technicians that involve diagnosing and replacing coils under certain conditions, such as for heat damage. The most well-known issue is not a defect in the part itself, but in the vehicle's design, where water can leak into the spark plug wells, causing the coils to fail prematurely.
| Part Type | Price Range (Single Coil) |
|---|---|
| New OEM (Motorcraft) | $50 - $85 |
| New Aftermarket | $39.29 - $51.52 |
| Shop Labor | $150 - $350 |
Frequently Asked Questions (FAQ)
Can I replace just the one bad ignition coil?
Yes, you can replace only the failed coil to fix the immediate problem. However, coils tend to fail around the same time. On a higher-mileage vehicle, it's a smart preventative measure to replace them all at once to avoid repeated repairs.
How hard is it to replace the ignition coils myself?
The process is simple, but access is difficult. You must remove the interior engine cover (the "doghouse"). The front coils are easy to reach, but the rear coils are very tight, especially on the V10. 🎬 See how to access and replace coils on the V10 engine. Special tools like a flexible 7mm socket driver can make the job much easier. Many DIY videos are available online to guide you.
Do I need to replace my spark plugs at the same time?
It is strongly recommended. The labor to access the coils is the same as accessing the plugs. A worn spark plug can strain the new coil, and a coil failure can foul a good spark plug. Doing both at once ensures the entire ignition system for that cylinder is fresh.
What is dielectric grease and why do I need it?
Dielectric grease is a non-conductive, silicone-based grease that you apply to the inside of the coil boot. It helps seal out moisture, prevents corrosion, and makes it easier to remove the coil in the future. This is a critical step, especially on Triton engines prone to water intrusion in the plug wells.
Helpful Videos
Technical Specifications
OEM Part Numbers: DG-508 FD503
Coil-On-Plug (COP) design. Held in place by a single 7mm bolt. Uses a 2-pin female electrical connector.
