Ford E-350 Econoline (1997-2008) Exhaust Manifold Hardware Guide
Tackling the common exhaust leak and broken stud problem on your Ford van's Triton engine.
- A ticking noise when cold is the classic symptom of a broken exhaust manifold stud.
- This is a very common failure on 5.4L and 6.8L Triton engines; expect studs to be broken.
- The cost is in the labor, not the parts. Extracting broken studs is difficult and time-consuming.
- Always upgrade to stainless steel or coated aftermarket hardware for a permanent fix.
- Always replace the manifold gaskets and check the manifolds for warpage during the repair.
Is Your E-350 Making a Ticking Noise?
If you own a 1997-2008 Ford E-350 with a V8 or V10 Triton engine, you might be familiar with a distinct ticking or tapping sound coming from the engine bay, especially on a cold start. This noise often points directly to a failed exhaust manifold seal, usually caused by broken exhaust manifold hardware. Due to constant expansion and contraction from heat, combined with corrosion, the original factory steel studs become brittle and snap. This is a well-known issue, particularly for the studs at the rear of the engine.
A Common and Frustrating Problem
The 5.4L V8 and 6.8L V10 Triton engines used in these vans are notorious for breaking exhaust manifold studs. The original hardware was prone to rust and failure. When a stud breaks, it allows the manifold to pull away from the cylinder head, causing a leak. This is not a matter of poor maintenance; it's a recognized limitation of the original factory hardware.
Choosing the Right Aftermarket Hardware
When replacing exhaust manifold hardware on your E-350, this is one of the rare cases where aftermarket parts are often a significant upgrade over the original equipment. Many aftermarket kits are designed specifically to address the shortcomings of the factory parts.
- Material is Key: Look for kits that use stainless steel or have a proprietary corrosion-resistant coating. These materials are much better at resisting the rust and heat that causes the original steel studs to fail.
- Brand Tiers:
- Fel-Pro: A highly respected brand, Fel-Pro offers hardware kits with proprietary coatings designed to resist corrosion and make future removal easier. Their kits are engineered to meet correct torque specifications and ensure a lasting seal.

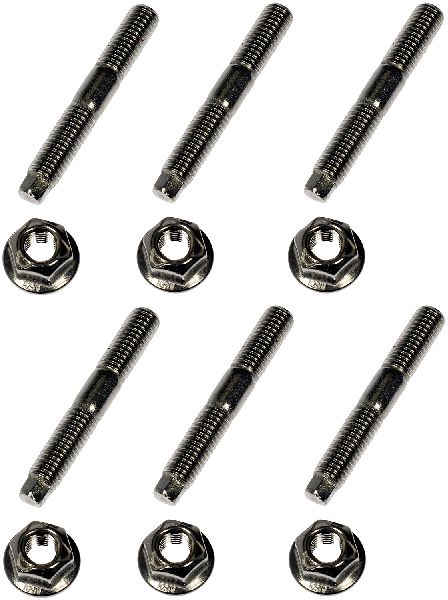

- Motormite (Dorman): Dorman is a major aftermarket manufacturer that often creates "OE FIX" parts. Their exhaust hardware kits are widely available and are a popular choice for this repair, often including improved materials over the stock parts. They are generally considered a reliable and cost-effective solution.
Pro Tip: Replace More Than Just the Hardware
Since you're going through the significant labor of accessing the manifolds, it is critical to replace the exhaust manifold gaskets at the same time. Also, have the manifolds themselves checked for warpage. A broken stud can allow the manifold to warp from the heat, and reinstalling a warped manifold will prevent a good seal, even with new hardware and gaskets.
Cost to Replace E-350 Exhaust Manifold Hardware
The hardware kit itself is inexpensive. The major cost of this job is the labor, which can be extensive and unpredictable.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $21.40 - $42.92 |
| Shop Labor | $500 - $1200+ |
Labor costs are high because of the high probability of studs breaking flush with the cylinder head. Extracting these broken studs is a time-consuming process that requires special tools and expertise. A simple job can quickly become complex, driving up the labor time from a few hours to a full day.
Frequently Asked Questions (FAQ)
Why do the exhaust manifold studs break?
The original studs are made of steel, which rusts and weakens over thousands of heat cycles. The constant expansion and contraction of the cast iron manifold and aluminum head puts stress on the studs, and they eventually snap, usually at the hottest part of the manifold near the rear cylinders.
Can I just replace the one broken stud?
While technically possible, it's not recommended. If one stud has failed, others are likely weak and will fail soon. The labor involved to access the manifold makes it much more cost-effective to replace all the studs and nuts on that side at once with a new, upgraded hardware kit.
Is stainless steel or coated hardware really better?
Yes. Stainless steel and specially coated hardware are far more resistant to the corrosion and high temperatures that plague the original steel studs. Upgrading the material is the key to a long-term, reliable repair and preventing the problem from happening again.
What else should I replace during this job?
Always install new exhaust manifold gaskets. It is also crucial to inspect the exhaust manifold itself for cracks or warping. If a manifold is warped, it must be resurfaced or replaced, or it will not seal properly.
Are there any recalls for this issue?
No, there are no specific recalls from the NHTSA for broken exhaust manifold hardware on the 1997-2008 Ford E-350. This is considered a component failure due to wear and environmental factors rather than a manufacturing defect that would trigger a safety recall.
Technical Specifications
OEM Part Numbers: W701706-S440 W705589-S440
Kit typically includes studs and nuts to service one exhaust manifold. Material composition (e.g., stainless steel, coated steel) is the most critical specification. Verify kit contains enough hardware for one side of a V8 or V10 engine.
